What is structures in SAP? Different types of structures

Why do we need structures?
Structures are required to represent statutory, regional and organizational conditions in an organization.
Allocation of employees to the structures is the first step for entering personal data.
Allocation to structures also help to find out the following:

  • Where does the employee work?
  • Which position does the employee hold?
  • How many hours in a period does the employee work?
  • Which public holidays does an employee get?
  • How is the employee paid?

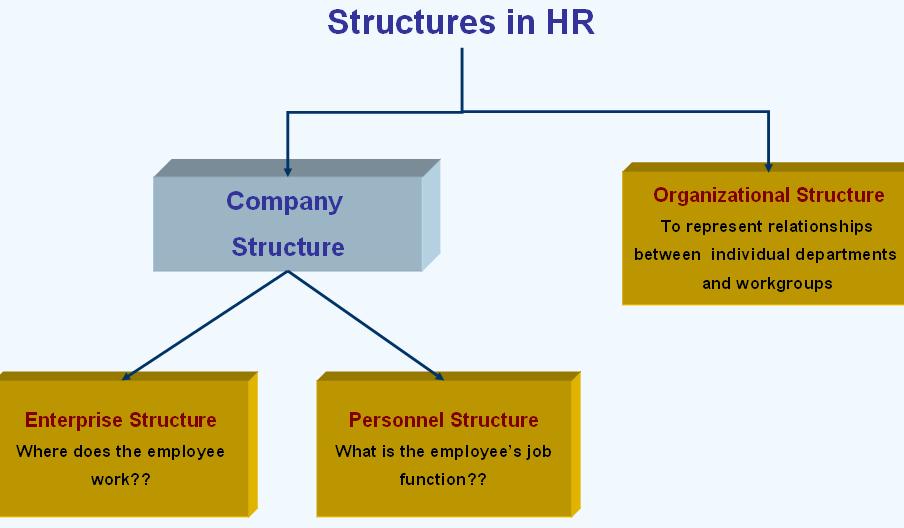

    There are 3 types of structures in SAP
    1. Enterprise Structure
    2. Personnel Structure
    3. Organizational Structure

What is structures in SAP? Different types of structures

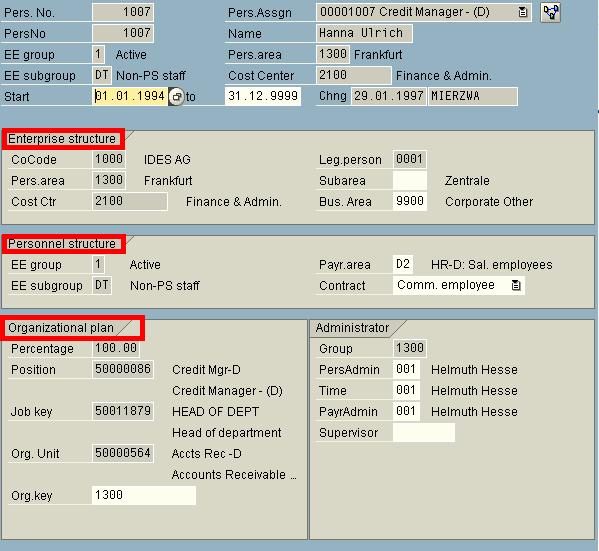

For an employee , information about these three structures is stored in IT0001

What is structures in SAP? Different types of structures

Enterprise Structure

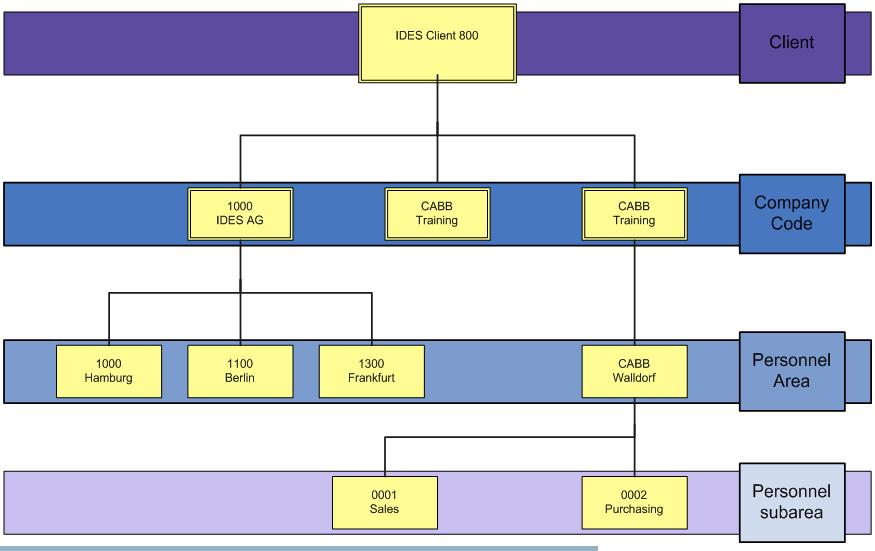

Below is a sample Enterprise Structure-

What is structures in SAP? Different types of structures

There are 4 main components of the enterprise structure

  • Client
  • Company Code
  • Personnel Area
  • Personnel Subarea
    Lets look into them in detail
  • It is an Independent legal and organizational unit of the system. A client generally is an entire corporate group(example GE).
  • It can be a identified by a 3 character alphanumeric code (like 058,AZZ)
  • No data exchange can take place between clients (only in exceptional cases)
  • An employee who changes from one client to another must be assigned a new personnel number
  • Client 000 is delivered by SAP and should not be changed.
  • Your SAP system contains both client-independent (e.x. programs , transactions , reports) and client-specific elements.(hr master data , om master data)


  • The company code is an independent company with its own accounting unit; a company that draws up its own balance sheet (e.x. GE Chemicals , GE electric).
  • Identified by a 4 character alphanumeric code (ex. 0001,AB01)


  • It represents a subdivision of the company code (Ex GE Chemicals Australia , GE Chemicals UK)
  • Identified by a 4 character alphanumeric code (ex. 0001,AB01)
  • You have to assign unique personnel area to company code
  • Personnel Area is used as selection criteria for evaluations and used in authorization checks


  • It represent a subdivision of the Personnel Area (Ex for GE Chemicals UK , valid personnel subareas could be GE Chemicals London , GE Chemicals Brussels)
  • Identified by a 4 character alphanumeric code (ex. 0002,ABCD)
  • Some important indicators set by the PSA include groupings for the following:
    1. Default values for Pay scale area and Pay scale type
    2. Public Holiday calendar
    3. Appraisals
    4. Assigning of legal persons
    5. Default values for Basic Pay
    6. Grouping for wage types
    7. Assignment for tax-related corporate features
  • Company regulations (for HR) are defined at the Personnel subarea level. These regulations maybe legal, contractual or company-specific.

Personnel Structure

  • Personnel structure displays position of individual people in the enterprise as a whole.It comprises of
    1. Employee Groups
    2. Employee Subgroups.
  • Examples: Active, Retiree, External

What is structures in SAP? Different types of structures


  1. Employee Group is used to classify employees in general terms.
  2. It defines the position of the employee within the company’s workforce
  3. Identified by 1 character alphanumeric code (Ex 1 , A).
  4. Examples of different valid Employee Groups would be Active, Pensioners, External
  5. Employee Group has the following important organizational functions
    • Can be used to generate default values for data entry, example for payroll accounting area or  an employee’s basic pay.
    • Can be used as a selection criteria for reporting.
    • Can be used as an entity for authorization checks.

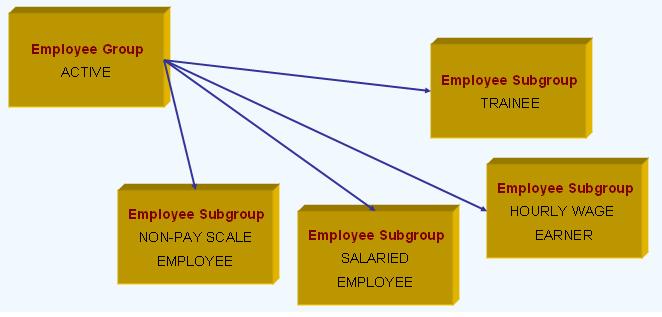

    • Employee Subgroups are subdivisions of Employee Groups.
    • Each ESG is assigned a 2 character alphanumeric identifier ($$).
    • Examples of valid ESGs for an Active employee would be Trainee, Hourly Wage Earner, Salaried Employee, Non-pay scale employee
    • Employee regulations (for HR) are defined at the Employee Subgroup level.
    • Some important indicators set by the ESG include groupings for the following
      1. Work Schedules
      2. Appraisals
      3. Grouping for Wage types
      4. Grouping for Collective agreement provision
      5. Processing of employee’s payroll
      6. Assigning employee characteristics like activity status, employment status and level of training.
      7. Time quotas
      8. Payroll Area

        Organizational Structure

    • It is based on Organizational plan.
    • Organizational plan provides foundation of Organizational Management.An organization uses an organizational plan to represent relationships between individual departments and workgroups
    • The organizational plan uses elements called objects like Persons (P), Jobs (C), Positions (S), Organizational Units (O), Cost Center (K) etc.
    • There are interfaces present that help one to build Organizational Structures

What is structures in SAP? Different types of structures

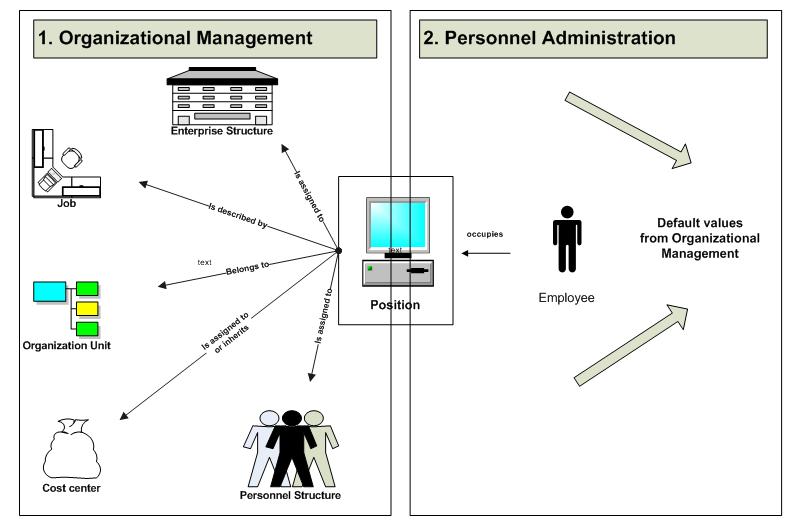

Integration of OM and PA

  • Integration switch – PLOGI ORGA integrates PA (Personnel Administration) and OM (Organizational Management).
  • If integration between PA and OM exists, then on entering a position in Actions Infotype (0000), system proposes values stored in OM for EG, ESG and PA.

What is structures in SAP? Different types of structures
