SAP S/4HANA Cloud, public edition, ABAP Environment Case 2: Customizing Sales Order App

1. Case Background:

This case is about customizing the Sales Order standard App, adding a custom field called “BU Section”. However, the custom fields on Sales Order are on the last tab “Custom Fields”. People tends to forget maintaining the value of this field. So we need to make this custom field mandatory.

As you can see below, we use App Custom Fields to create a custom field like below:

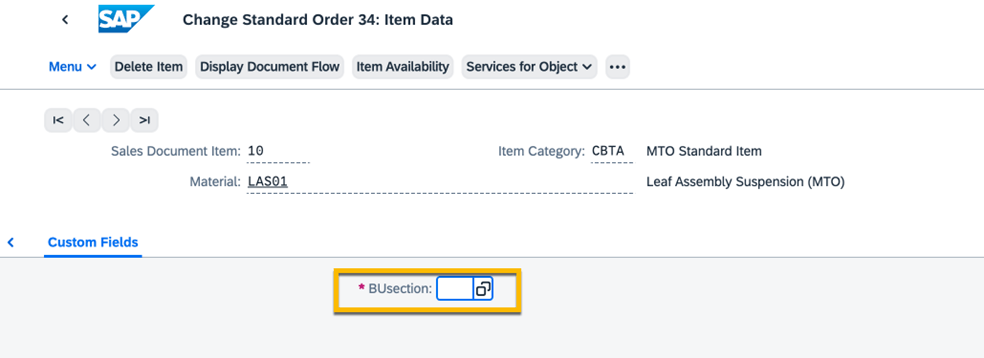

Custom Field BUSection

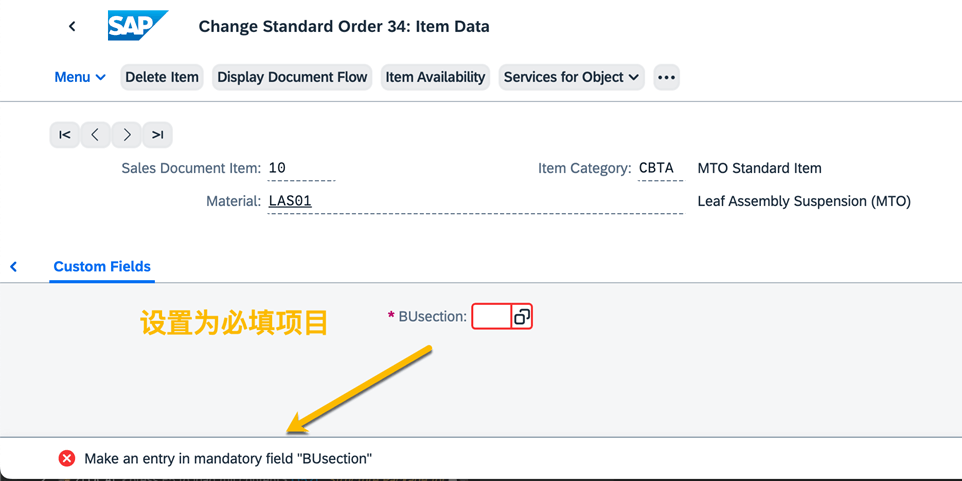

When we saving the sales order without entering the custom field, an error message pops up:

Custom field is mandatory

2. Implementation Details:

2.1 Find the released BAdl

We check the sales Extensibility part, find the enhancement spot ES_SD_SLS_EXTEND, and under the enhancement spot, there is a BAdl called SD_SLS_FIELDPROP_ITEM, which can set the sales item field properties.

Detailed path is like below:

Release Objects > Enhancements > SD > SD-SLS > SD-SLS-EXT > Enhancements Spots

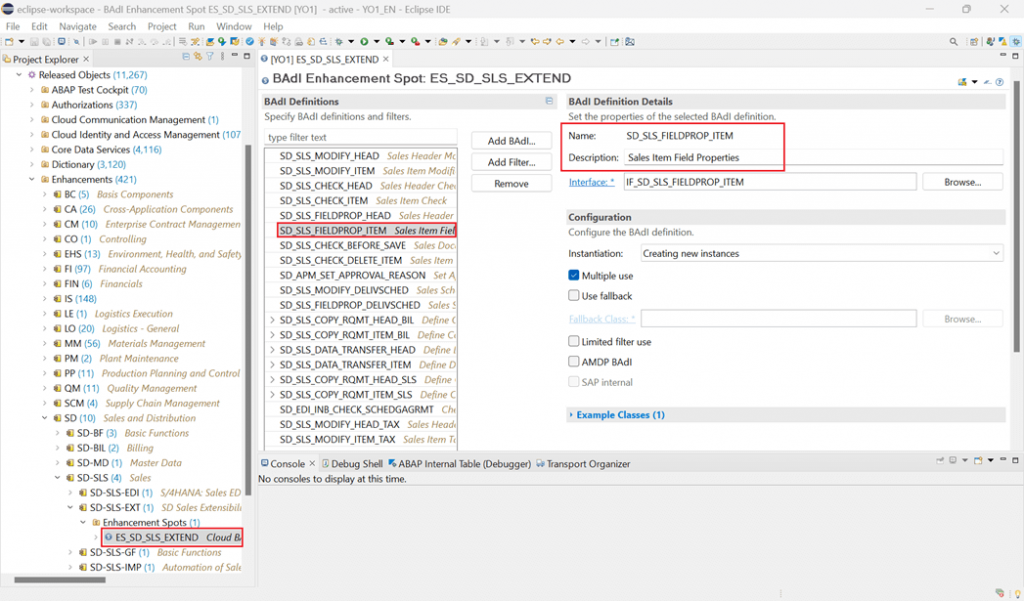

Find the BAdl to use

2.2 Create BAdl Enhancement Implementation

First, we create a package, and we add it to favorite packages for further look-up.

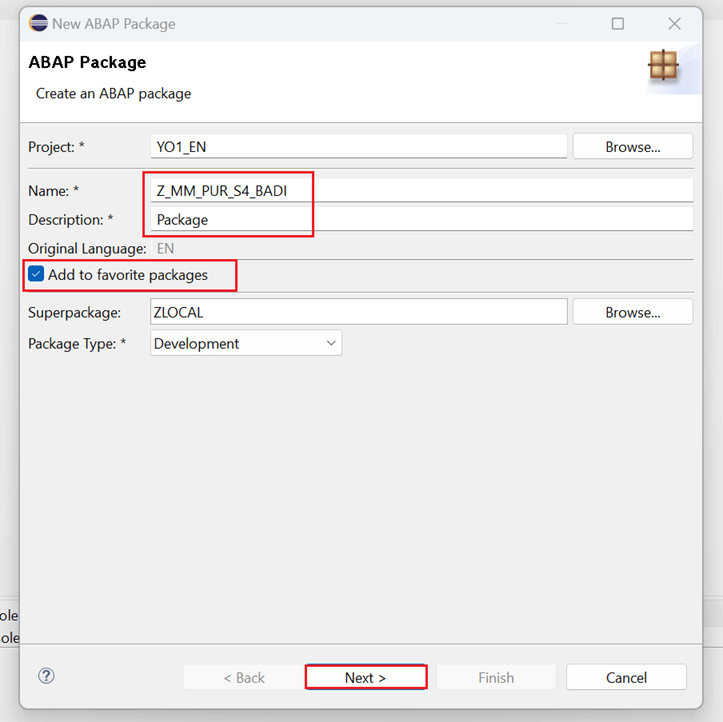

Create a new package

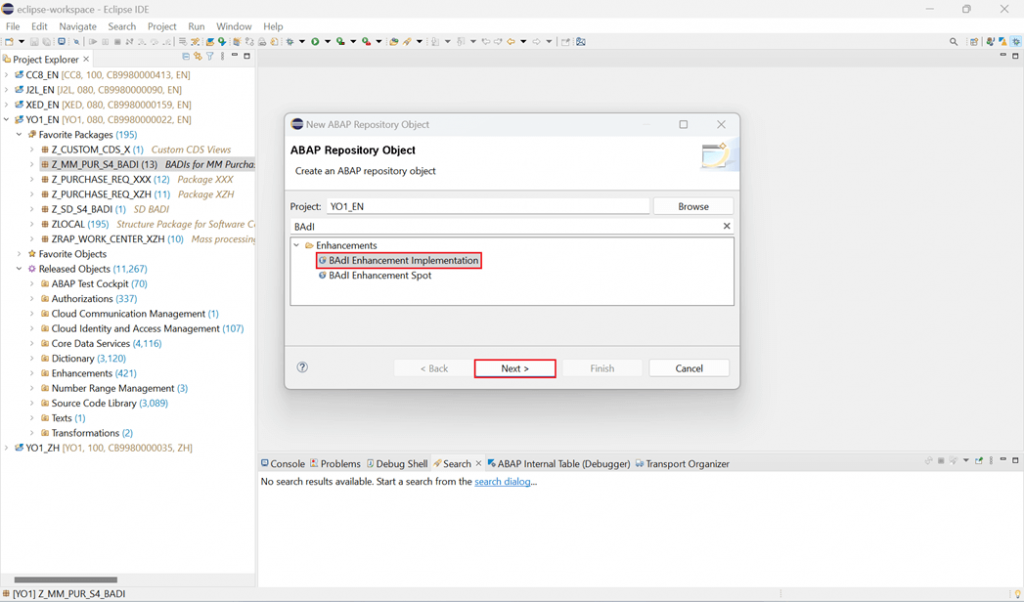

Then, right-click the package, choose New -> Other ABAP Repository Object -> BAdl Enhancement Implementation:

BAdl Enhancement Implementation

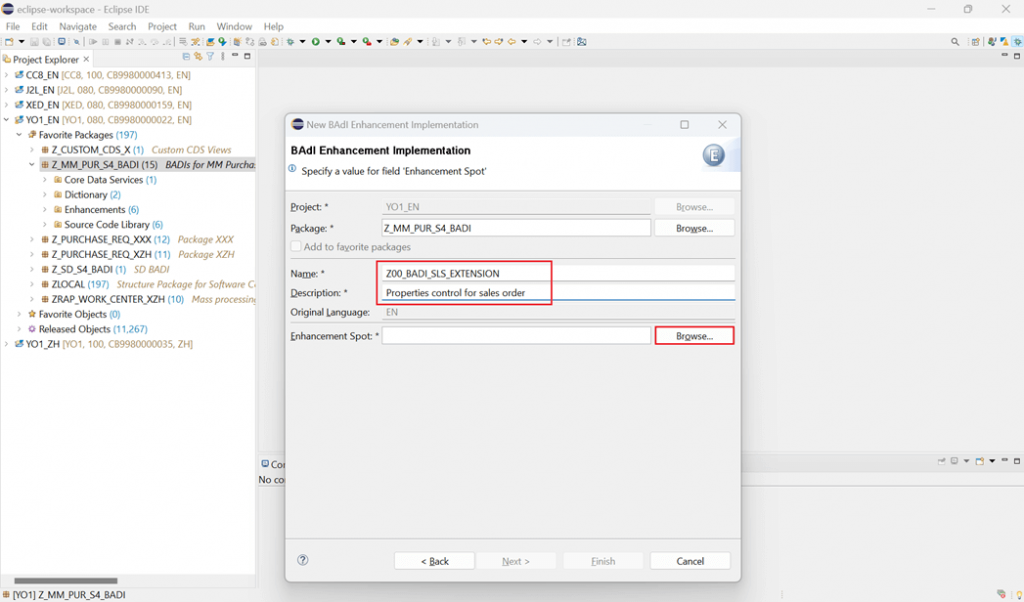

Enter Name and Description, and choose Browser:

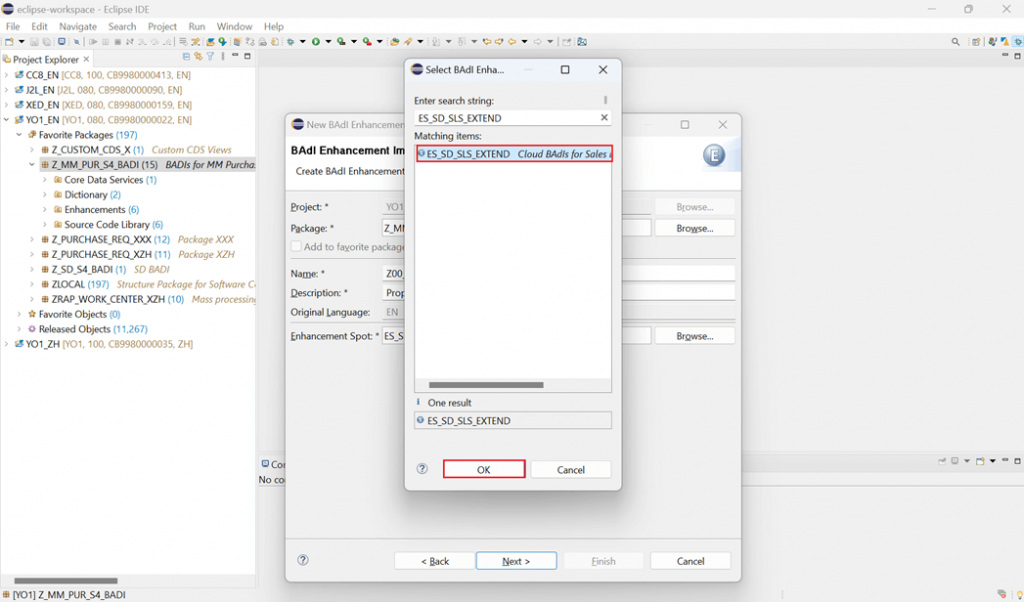

Enter ES_SD_SLS_EXTEND and search, click OK.

2.3 Create BAdl Definition

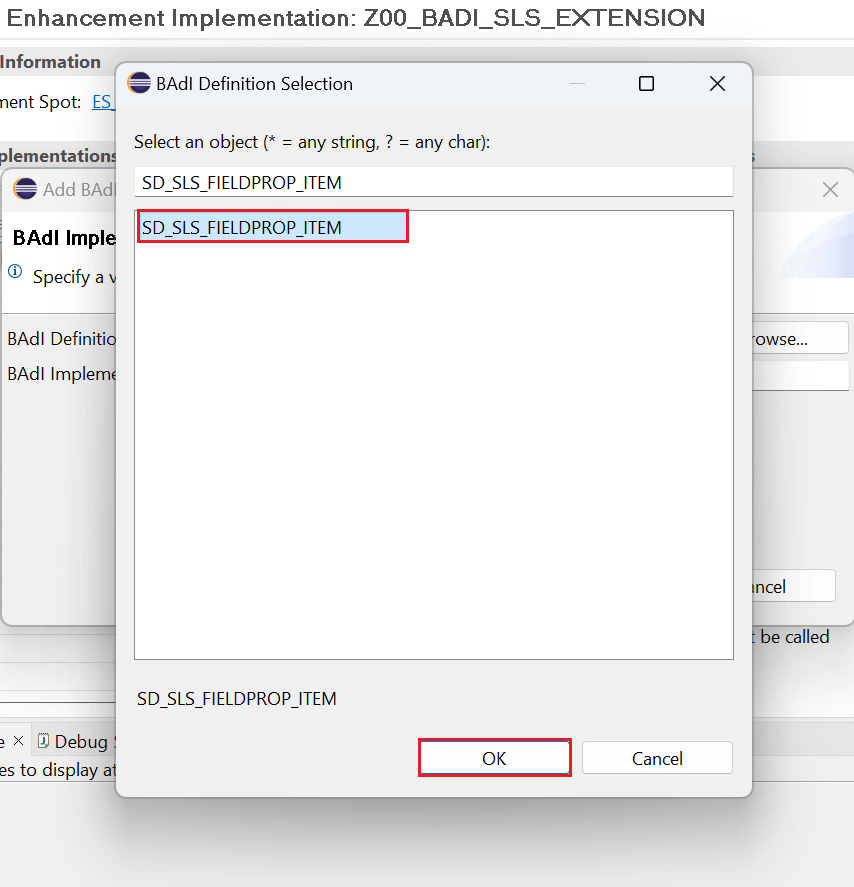

Open the BAdl Enhancement Implementation created from last step, Click “Add BAdl Implementation”, click on “Browser”, search and choose SD_SLS_FIELDPROP_ITEM, click OK.

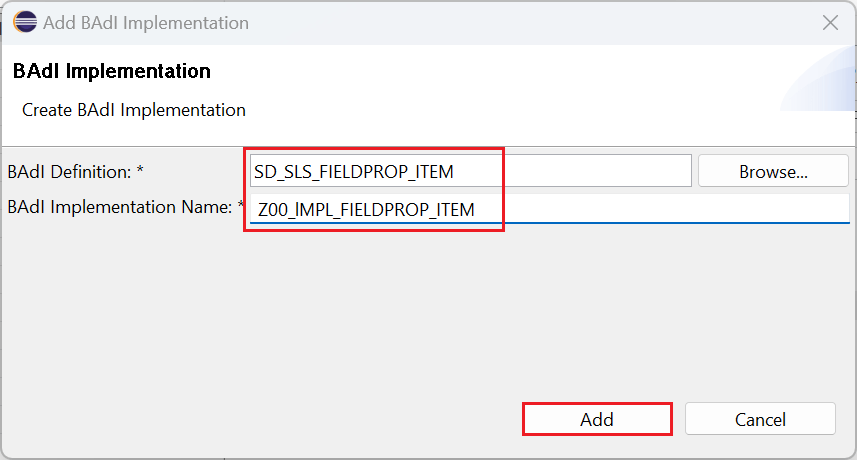

Enter your BAdl Implementation Name, and click on Add:

2.4 Customizing implementation logic in ABAP class

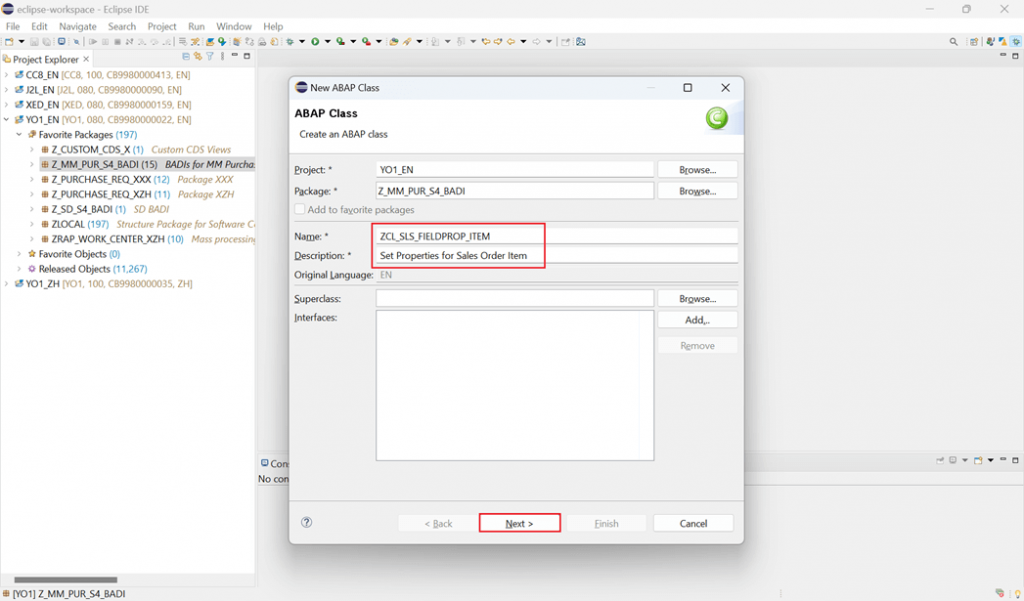

Right-click the package, choose New -> ABAP Class, enter the class name and description, click on Next.

In the class, implement the logic like below. Set the custom field BUSection as a mandatory field.

CLASS zcl_sls_fieldprop_item DEFINITION


    INTERFACES if_badi_interface .
    INTERFACES if_sd_sls_fieldprop_item .


  METHOD if_sd_sls_fieldprop_item~set_field_prop.
    loop at field_properties assigning field-symbol(<fs_field_properties>).
        if salesdocument-salesorganization = 'your sales org value'.
            if <fs_field_properties>-field_name = 'YY1_BUSECTION_SDI'.
                <fs_field_properties>-mandatory = 'X'.

2.5 Activate the BAdl Implementation

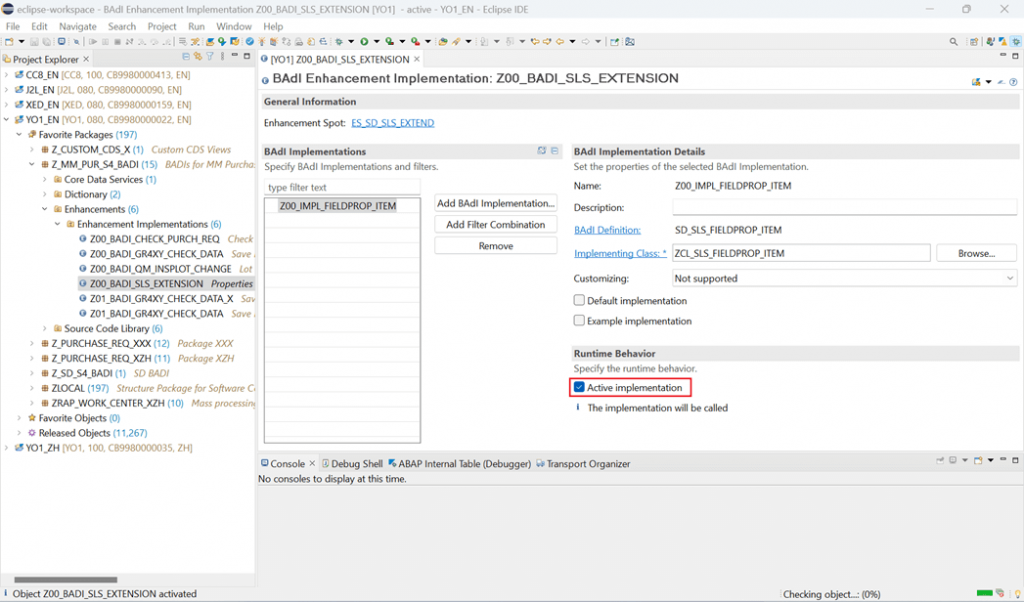

Click on the checkbox “Active Implementation”, then activate. The message “The implementation will be called” means the BAdl implementation has been activated.

3. Debug in Developer Extensibility

Easy to debug is one of the advantage to implement the BAdls in Developer Extensibility compared to Key-User Extensibility.

Here I will illustrate the steps how to debug in Developer Extensibility.

3.1 Add required Business Catalog

For the system you want to debug, you need to make sure your user has roles which contain the following Business Catalogs:

  • SAP_A4C_BC_DEV_SUP_PC — Development – Analysis and Support
  • SAP_A4C_BC_DEV_OBJ_DIS_PC — Development – Development Objects Display

3.2 Set Breakpoint in the code

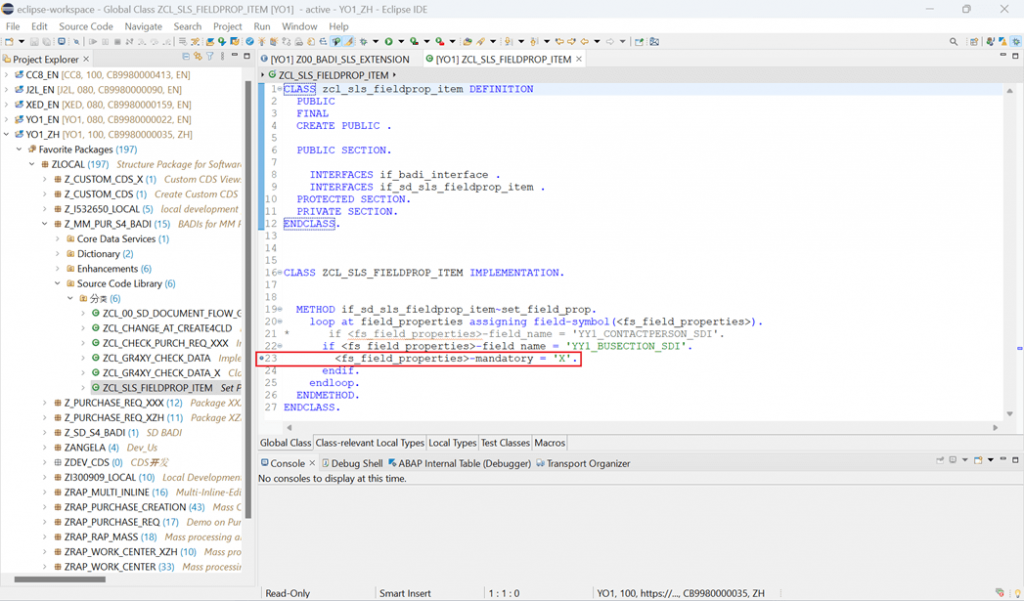

After connecting the system in ADT, find the code you want to debug, and set the breakpoint properly, like the example below:

3.3 Run the program and debug

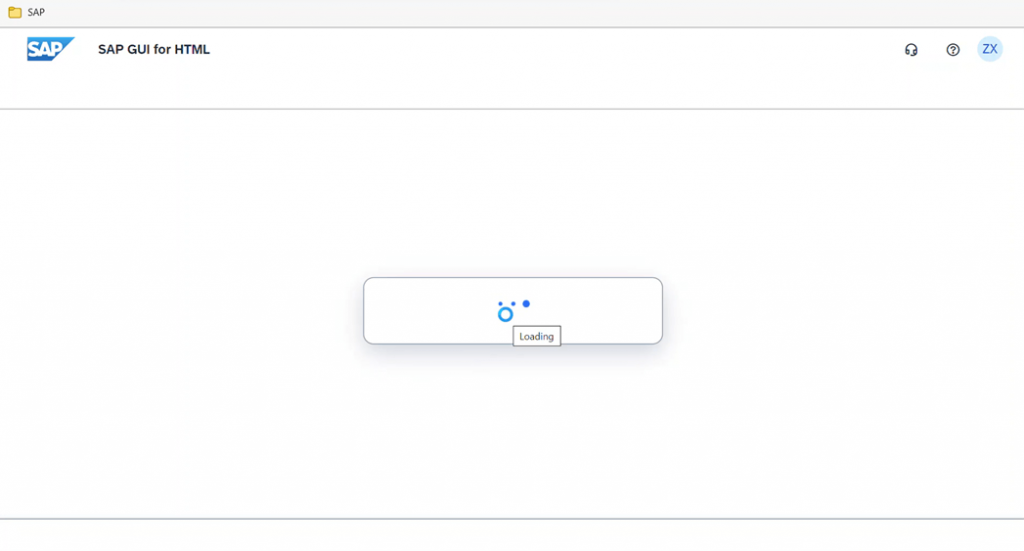

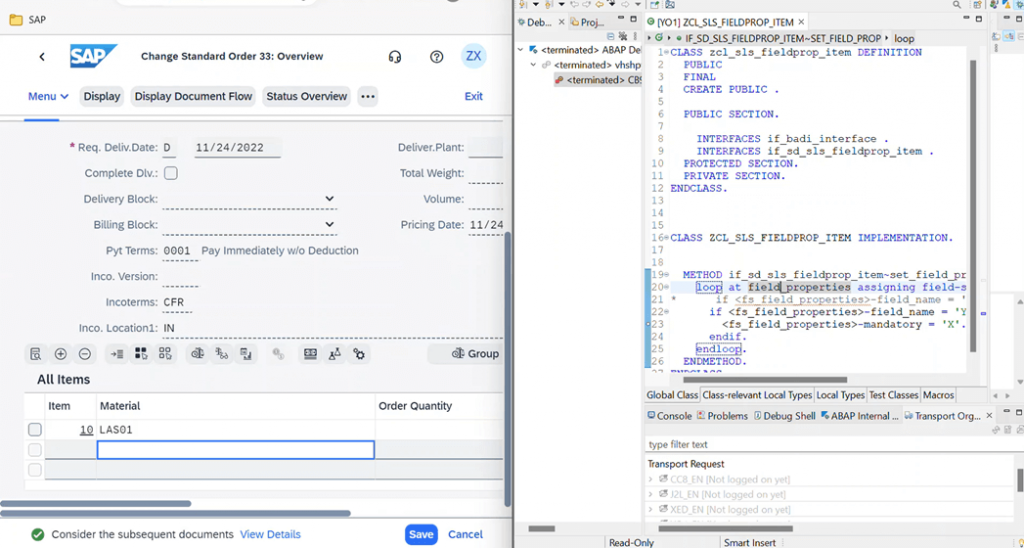

Open the APP Manage Sales Orders, click to change a sales order, you can see the system stops on loading page.

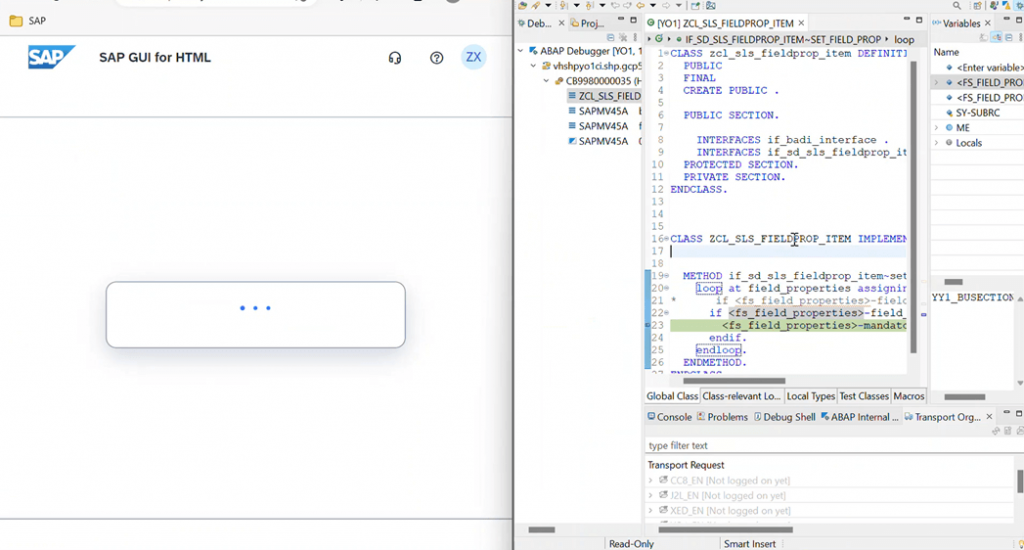

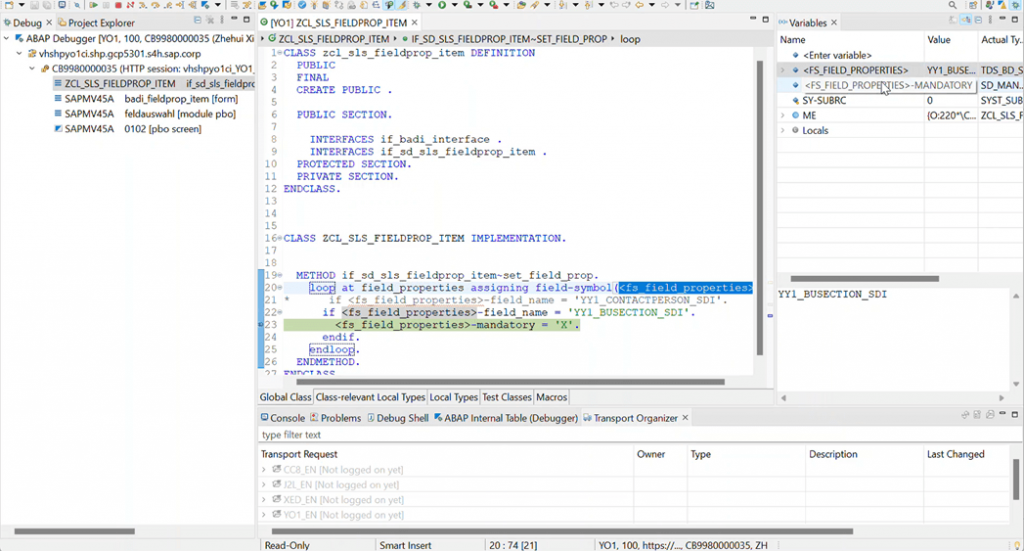

If we go back to ADT, we can see the debug mode has been activated. And the custom field YY1_BUSECTION_SDI’s mandatory property has changed from blank to X.

Now the page is still loading:

We click F8 to proceed, then the debug mode ends, and the page has been loaded successfully:
