EMBEDDED EWM Integration in S/4 HANA
In this blog i am going to discuss about rapid deployment solution of S/4 hana system. In this blog I am going to share basic steps for integrating Embedded EWM with S/4hana.
In future will also provide blogs related to Basic & Advance Warehouse processes covering topics like –
- Inbound process
- Outbound process
- Internal warehouse Movements
- Physical Inventory .
- Yard Management
- Wave Management
- RF
- QM & PP Integration
Purpose: To provide basic Embedded EWM Integration steps in S/4 Hana – 1709
INTEGRATION SETTING:

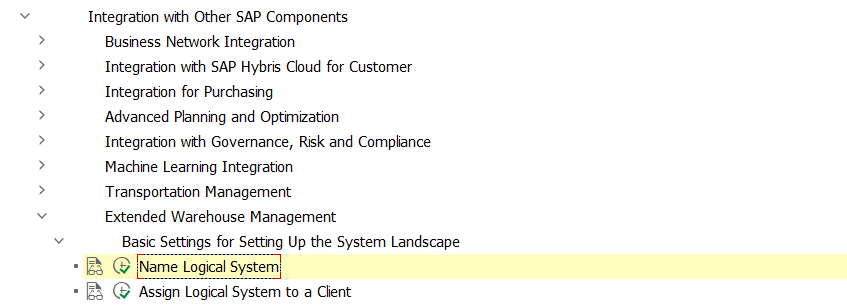

1.1 Name Logical System
PATH: SPRO—IMG—Integration with other SAP Components—EWM—Basic settings for setting up the system landscape—Name logical system
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/Rapid1.png?resize=730%2C263&ssl=1)
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/Rapid2.png?resize=730%2C302&ssl=1)

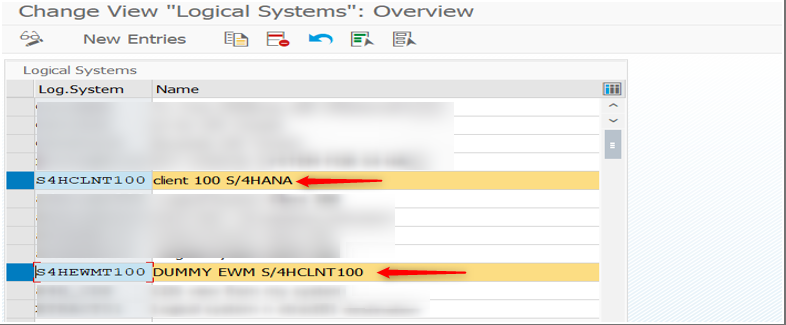

- Here we have to create Normal logical system (ERP) and Dummy logical system (EWM) in S/4 Hana for integrating embedded EWM with S/4 Hana System.

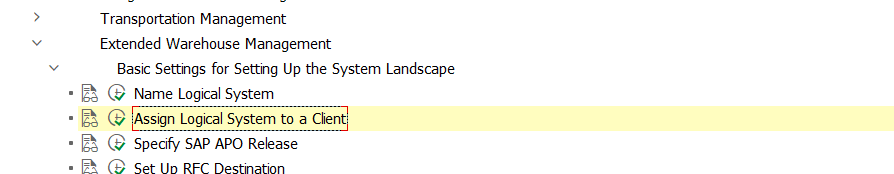

1.2 Assign Logical system to a Client: –
PATH: SPRO—IMG—Integration with other SAP Components—EWM—Basic settings for setting up the system landscape—Assign Logical System to a Client.
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/Rapid3.png?resize=730%2C142&ssl=1)

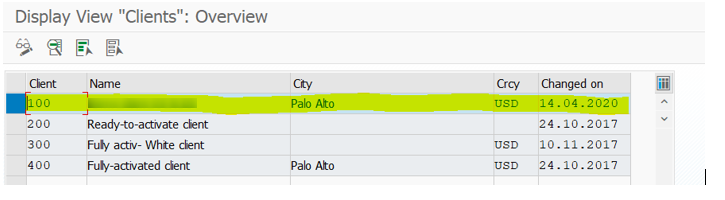

- Here we maintain the Normal Logical system and assign to the Client.
NOTE: Dummy logical system can’t be assigned to any client and user as an RFC destination to distribute the data between environments.
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/Rapid4.png?resize=725%2C200&ssl=1)

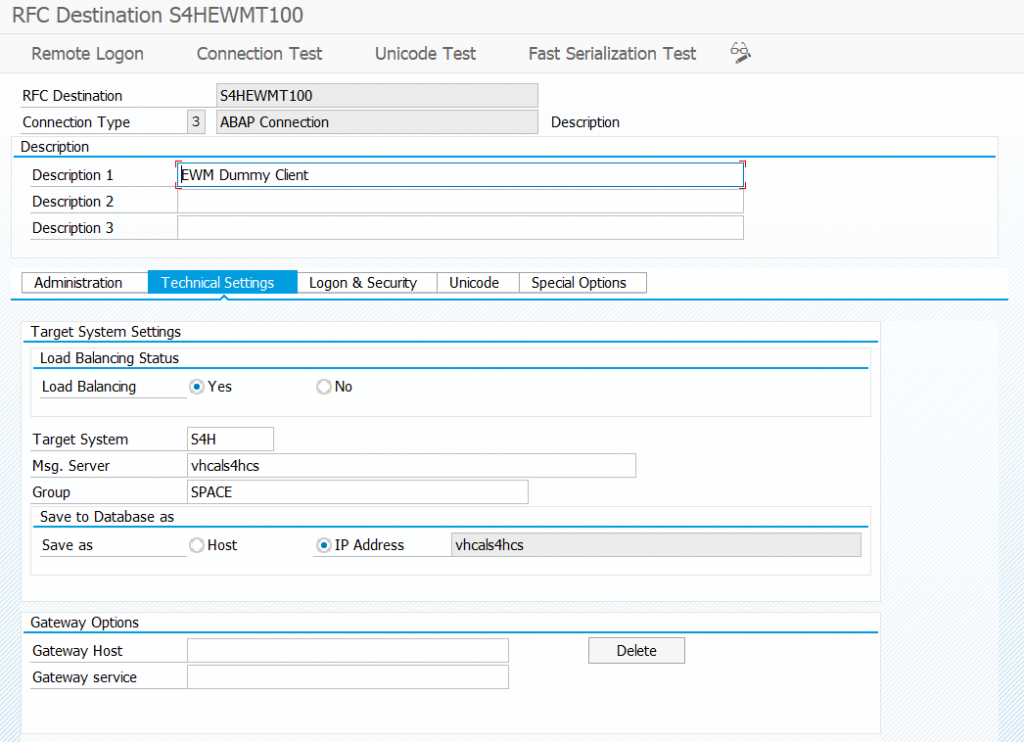

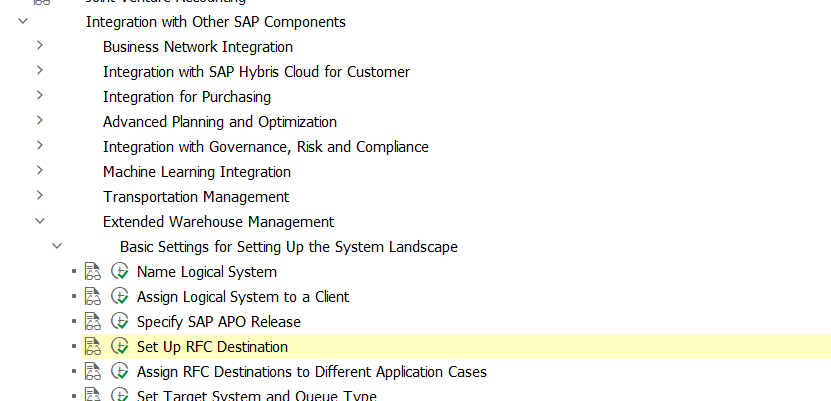

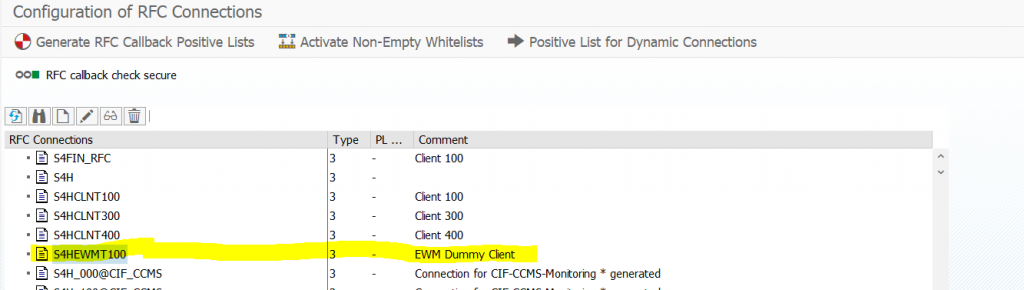

1.3 Set Up RFC Destination: –
PATH: SPRO—IMG—Integration with other SAP Components—EWM—Basic settings for setting up the system landscape—Set Up RFC Destination
In S/4 Hana, we define RFC destination for dummy logical system and we do not maintain any specific user within it.
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/Rapid5.png?resize=730%2C352&ssl=1)
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/Rapid6-1024x290.png?resize=730%2C207&ssl=1)
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/Rapid7-1024x742.png?resize=730%2C529&ssl=1)

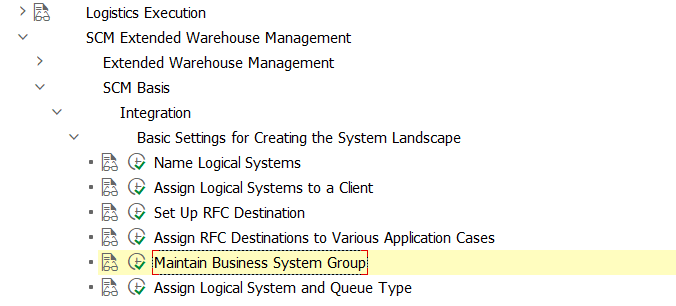

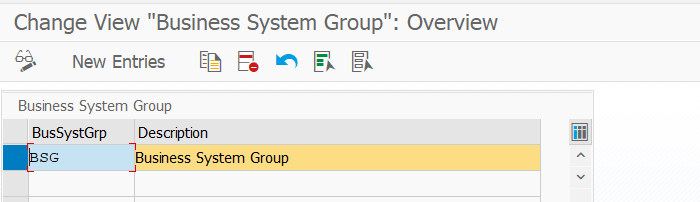

1.4 Maintain Business System Group: –
PATH: SPRO—IMG—Integration with other SAP Components—EWM—Basic settings for setting up the system landscape—Maintain Business System Group.
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/Rapid8.png?resize=676%2C306&ssl=1)
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/Rapid9.png?resize=700%2C202&ssl=1)

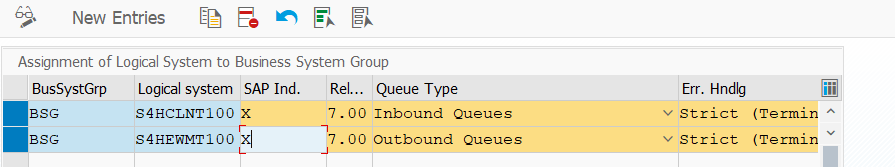

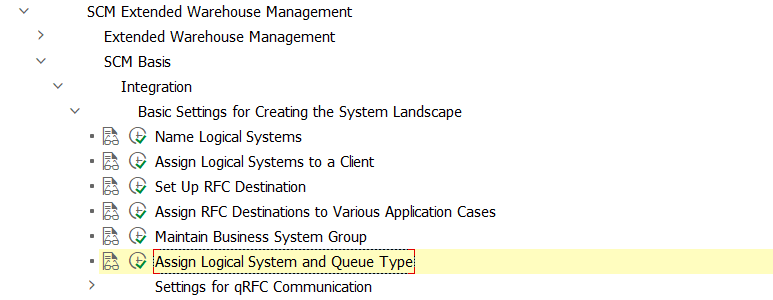

1.5 Assignment of Logical System and Queue Type: –
PATH: SPRO—IMG—Integration with other SAP Components—EWM—Basic settings for setting up the system landscape—Assign Logical System and Queue Type.
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/Rapid10.png?resize=730%2C283&ssl=1)
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/Rapid11.png?resize=730%2C136&ssl=1)

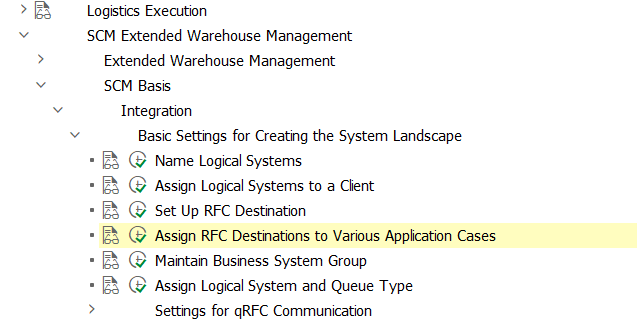

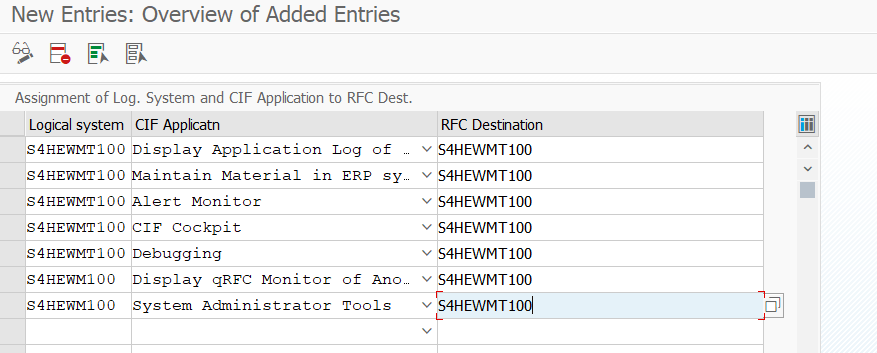

1.6 Assignment of RFC Destination to Various Application Cases: –
PATH: SPRO—IMG—Integration with other SAP Components—EWM—Basic settings for setting up the system landscape—Assign RFC Destination to Various Application Cases
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/Rapid12.png?resize=637%2C324&ssl=1)
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/Rapid13.png?resize=730%2C294&ssl=1)

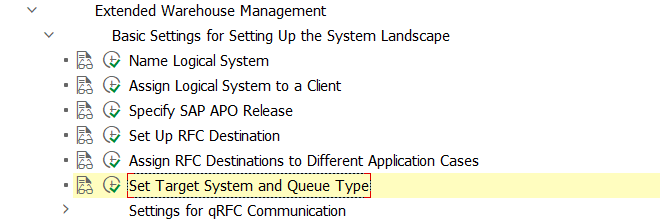

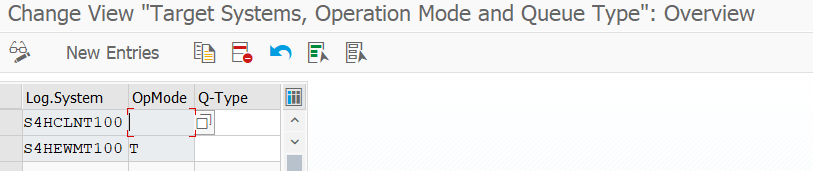

1.7 Set Target System and Queue Type: –
PATH: SPRO—IMG—Integration with other SAP Components—EWM—Basic settings for setting up the system landscape—Set Target System and Queue type.
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/Rapid14.png?resize=660%2C223&ssl=1)
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/Rapid15.png?resize=730%2C154&ssl=1)

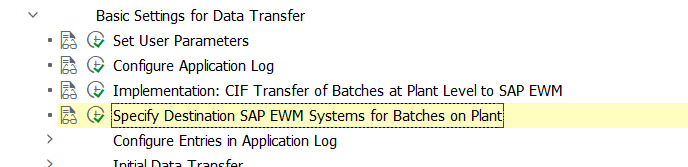

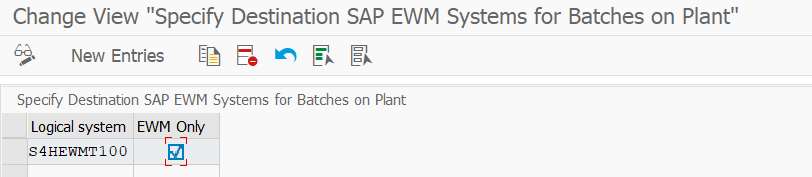

1.8 Specify destination SAP EWM System for batches on plant:
PATH: SPRO—IMG—Integration with other SAP Components—EWM—Basic settings for setting up the system landscape—Specify destination SAPEWM System for Batch on Plant.
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/Rapid16.png?resize=688%2C167&ssl=1)
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/Rapid17.png?resize=730%2C159&ssl=1)

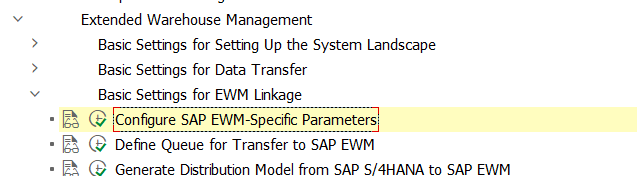

1.9 Configure SAP EWM -specific Parameter:
PATH: SPRO—IMG—Integration with other SAP Components—EWM—Basic Settings for EWM Linkage–Configure SAP EWM-Specific Parameters
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/Rapid18.png?resize=637%2C176&ssl=1)
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/Rapid19.png?resize=730%2C206&ssl=1)

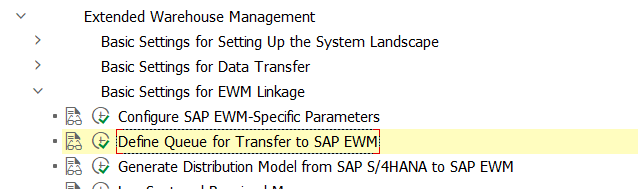

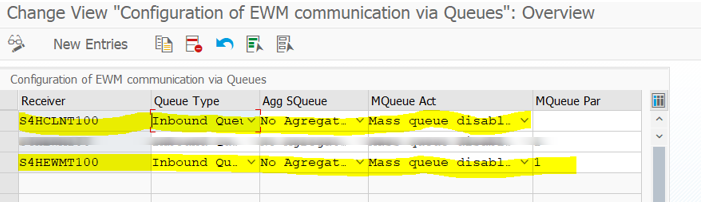

2.0 Define Queue for Transfer to SAP EWM:
PATH: SPRO—IMG—Integration with other SAP Components—EWM—Basic settings for EWM Linkage—Define Queue for Transfer to SAP EWM
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/Rapid20.png?resize=638%2C189&ssl=1)
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/Rapid21.png?resize=714%2C205&ssl=1)

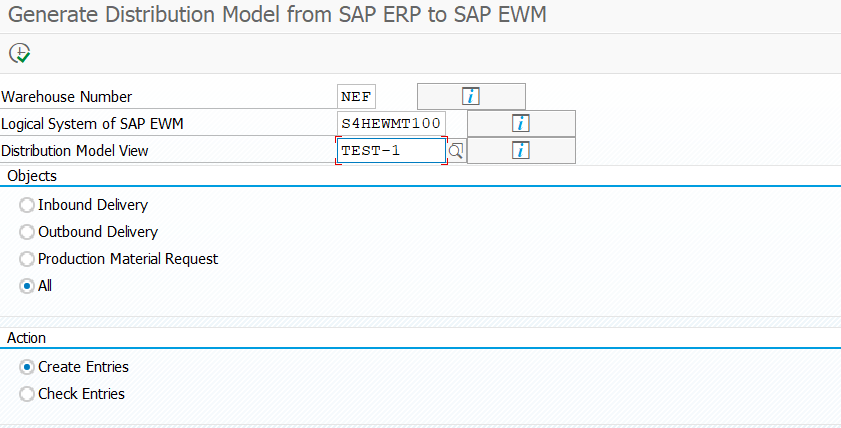

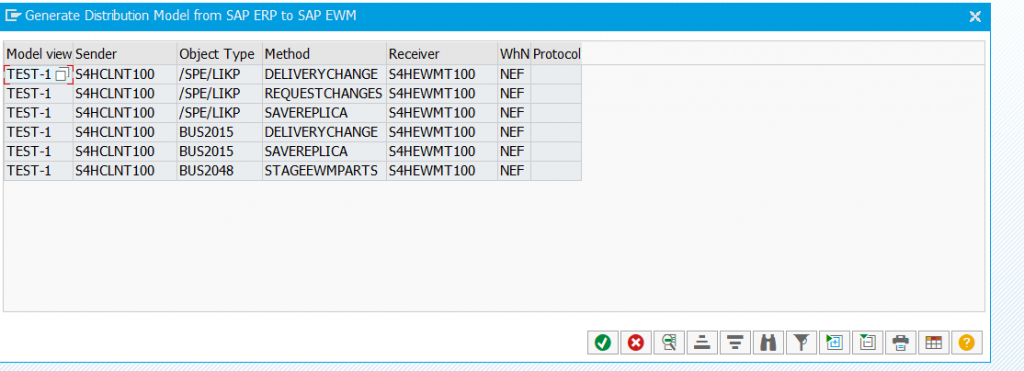

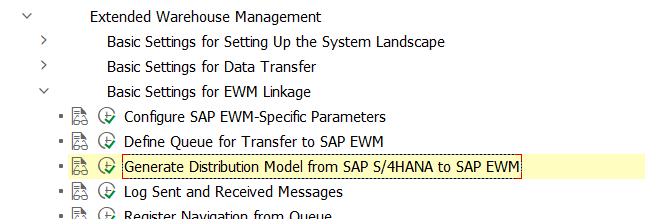

2.1 Generate Distribution Model from SAP S/4 HANA to SAP EWM:
PATH: SPRO—IMG—Integration with other SAP Components—EWM—Basic settings for EWM Linkage— Generate Distribution Model from SAP S/4 HANA to SAP EWM.
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/Rapid22.png?resize=645%2C219&ssl=1)
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/Rapid23.png?resize=730%2C372&ssl=1)
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/Rapid24-1024x371.png?resize=730%2C264&ssl=1)

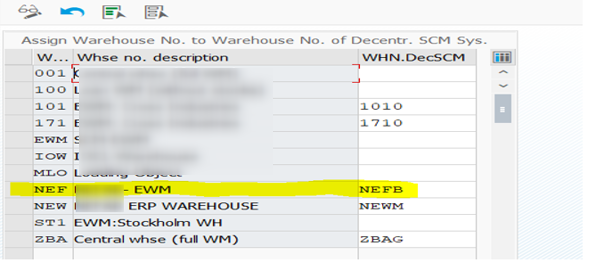

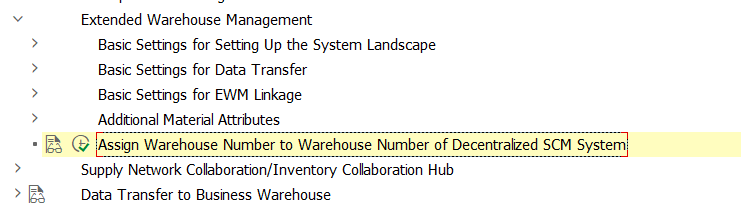

2.3 Assign Warehouse number to Warehouse number of Decentralize SCM system:
PATH: SPRO—IMG—Integration with other SAP Components—EWM— Assign Warehouse number to Warehouse number of Decentralize SCM system
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/Rapid25.png?resize=730%2C205&ssl=1)
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/Rapid26.png?resize=599%2C271&ssl=1)

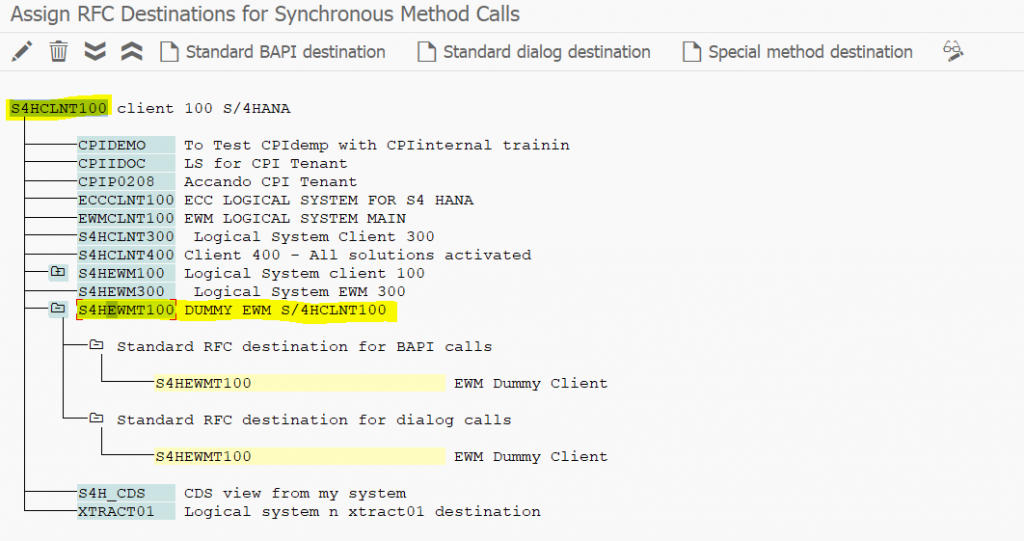

2.4 Assign RFC Destination for Synchronous Method Calls:
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/Rapid27-1024x541.png?resize=730%2C386&ssl=1)

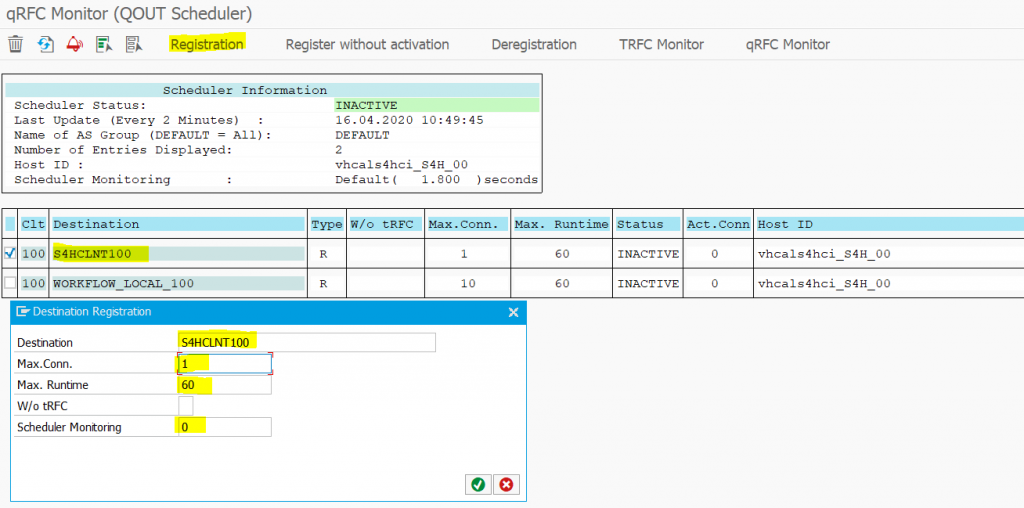

2.5 Setting up QUOT Scheduler:
Transaction: SMQS
To enable the automatic processing of messages in the outbound queue.
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/Rapid28-1024x508.png?resize=730%2C362&ssl=1)

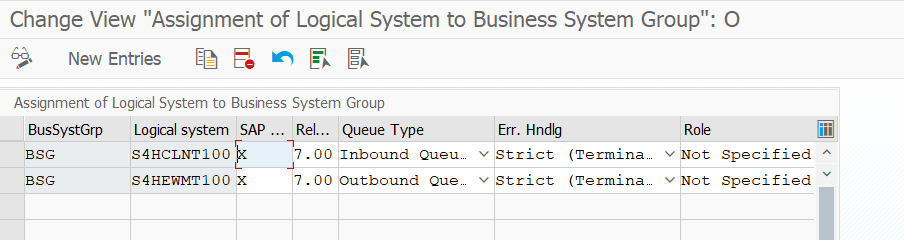

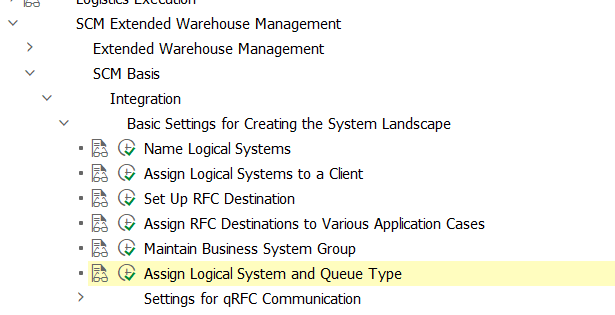

2.6 Assign Logical System and Queue Type:
PATH: SPRO—IMG—Integration with other SAP Components—EWM—SCM Basis — Integration—Basic Settings for Creating the System Landscape—Assign Logical System and Queue Type.
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/Rapid29.png?resize=615%2C315&ssl=1)
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/Rapid30.png?resize=730%2C194&ssl=1)

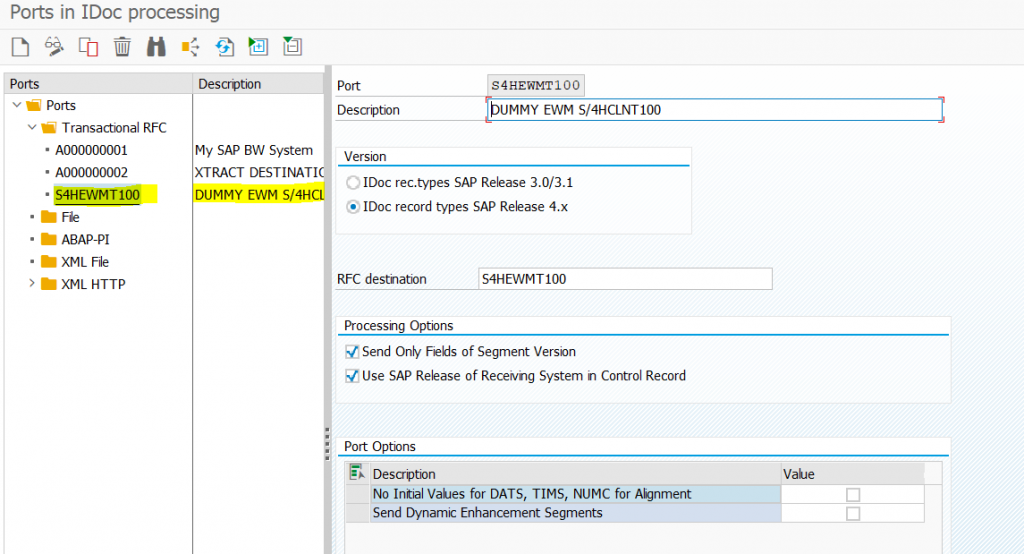

2.7 Define the Communications Port:
TRANSACTION: WE21
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/Rapid31-1024x554.png?resize=730%2C395&ssl=1)

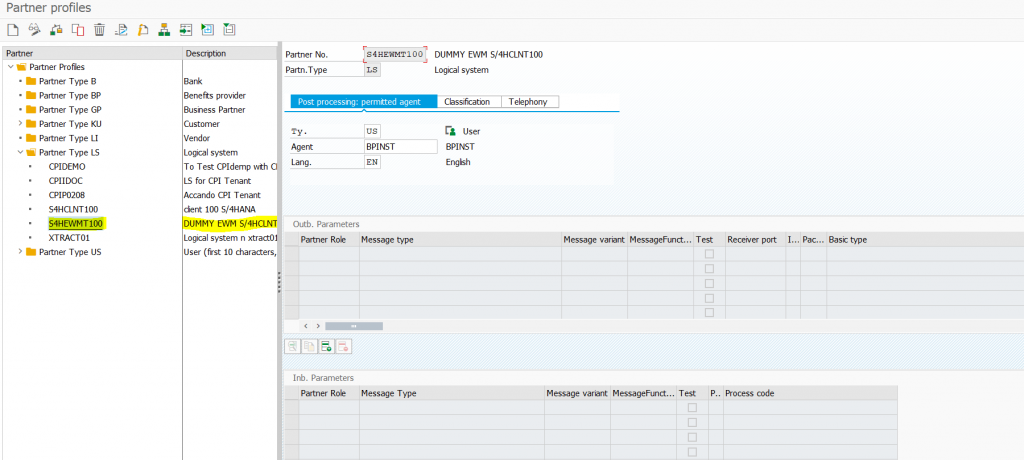

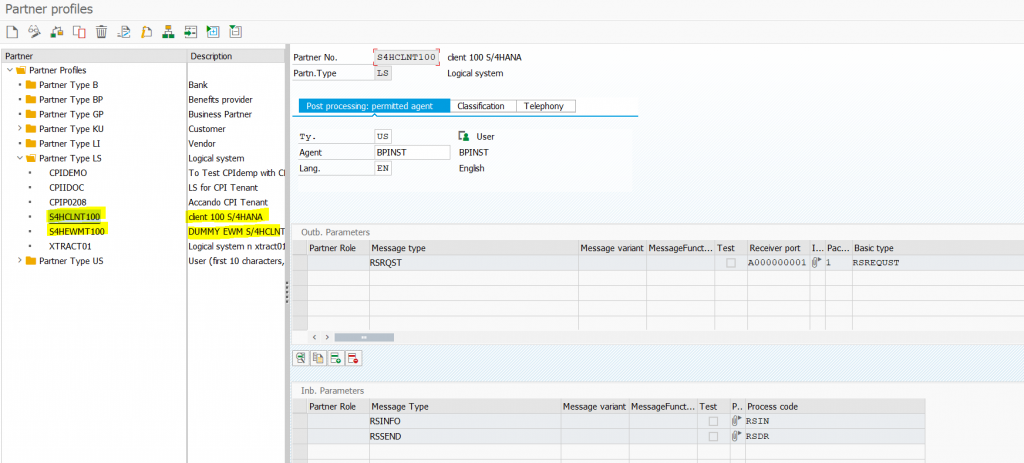

2.8 Creation of Partner Profile:
TRANSACTION: WE20
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/Rapid32-1024x463.png?resize=730%2C330&ssl=1)
![](https://i0.wp.com/www.erpqna.com/wp-content/uploads/2020/05/Rapid33-1024x460.png?resize=730%2C328&ssl=1)
