Integration of SAP BTP Asset Manager 2010 with On-Premise SAP S/4HANA 2020 FPS00

Introduction:

In this blog post you will learn about integrating & connectivity configuration of SAP EAM Asset Manager 2010 with On-Premise S/4HANA 2020 FPS00 system.

2010 Asset Manager provides approx. 198 entity set & each new entity set provides new functionalities as compare SAP Asset Manager 2005,1911, 4.0 & 3.0 version.

New version of SAP Asset Manager 2010 provides the below new features –

  • Support Checklists for Functional Locations
  • Filter Measurement Points by PRT and Operations
  • Add and Edit LAM Data
  • SAP Archive Link Support for Document Management
  • GEF Integration
  • Support Quality Management (QM) Notifications
  • Support Calibration Orders
  • Support English and Chinese Versions of EULA and Privacy Policy for SAP Asset Manager

CONFIGURATION STEPS OF SAP EAM ASSET MANAGER 2010 –

  1. Configure the backend S/4 HANA system includes activating BC sets, schedule backgrounds jobs etc.
  2. Adding Subaccount to Cloud Connector & maintain Cloud to On-Premise destination of your S/4HANA system.
  3. Configuration of Destination in SAP BTP Mobile Service Cockpit.
  4. Generating the QR Code & logging in SAP Asset Manager App on Mobile Devices.

INTEGRATION PROCESS BEGINS –

BACKEND S/4 HANA SYSTEM CONFIGURATION STEPS –

1. Activate the below Odata services in Gateway Service (T-Code – /n/iwfnd/maint_service)

/MERP/SAP_ASSET_MANAGER2010

/MERP/SAP_ONLINE_LOOKUP_EXT_2010

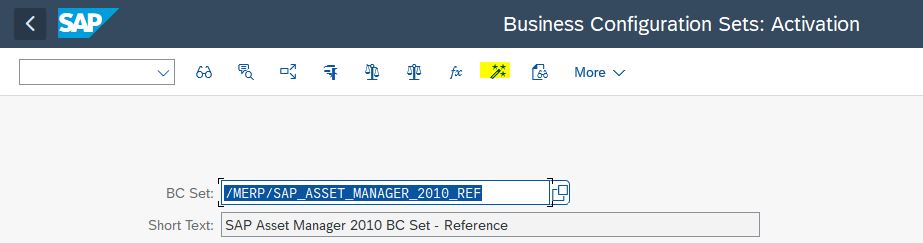

2. Activate the below BC sets for SAP Asset Manager 2010 (T-Code – SCPR20)

/MERP/SAP_ASSET_MANAGER_2010_REF

/MERP/SAP_ASSET_MANAGER_2010_REF

Activation of BC Sets

3. Schedule daily background jobs for program – /SYCLO/CORE_EXCH_PURGE_PROG (T-Code – SM36)

4. Activate all the services under Node – default_host/sap/bc/webdynpro/Syclo (T-Code – SICF)

5. Define Number Ranges for the below object for an interval Interval 01, Value 0000000001 ~ 0199999999- (T-Code – SNRO)

  • /MFND/CS1
  • /MFND/DQ1
  • /SMFND/SY1

CLOUD CONNECTOR CONFIGURATION –

In Cloud Connector Configuration first we need to add the SAP BTP Asset Manager(Mobile Services) Subscription Subaccount to Cloud Connector.

Second under Cloud to On-Premise Section we do the mapping of virtual system to backend S/4 HANA system for both HTTP & HTTPS protocol.

Third we need to ensure the mapping of Destination is Reachable.

SAP BTP MOBILE SERVICES PLATFORM DESTINATION CONFIGURATION

STEP 1 – Login to SAP Cloud Mobile Services Platform and Maintain the Destination under Connectivity Section.

Click on New Destination

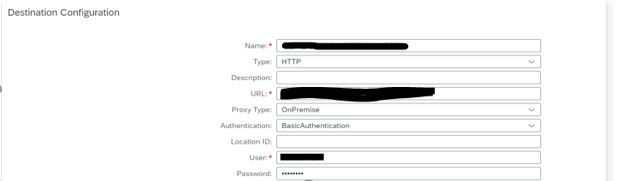

And maintain the following details mentioned below –

  • Type – HTTP
  • URL – http://:<sap cloud connector virtual host>:<HTTPS service port>
  • Proxy Type – OnPremise
  • Authentication – BasisAuthentication ( in my case )

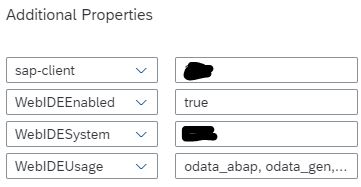

Add Below Property to this Destination by Clicking on New Property –

  • sap-client – Mention the client to which system will be connected
  • WebIDEEnabled – true
  • WebIDESystem – <SID of the System>
  • WebIDEUsage – odata_abap, odata_gen, ui5_execute_abap, dev_abap

Click on Save & Check Successful Connection Test for the Destination.

STEP 2 – Now GOTO services

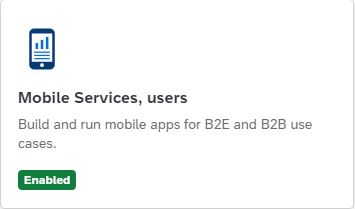

Select Mobile Service, User

Step 3 – Click on go to Service

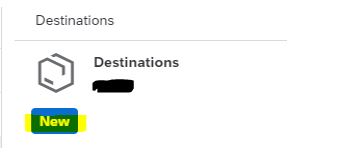

Step 4 – Go to Destination (Click on New) & Maintain two destination (DEST_SAM2010_PPROP and DEST_SAM2010_ONLINE_PPROP) for SAP Asset Manager 2010 Odata Services.

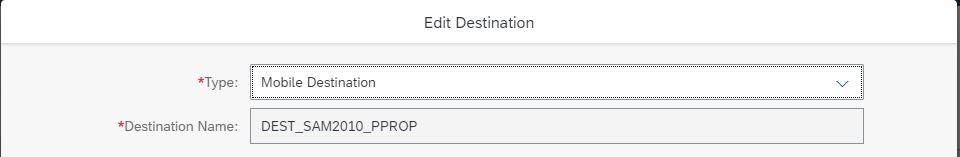

Select Type as Mobile Destination & Enter Destination Name – DEST_SAM2010_PPROP

Then Next & define the below value in their respective fields –

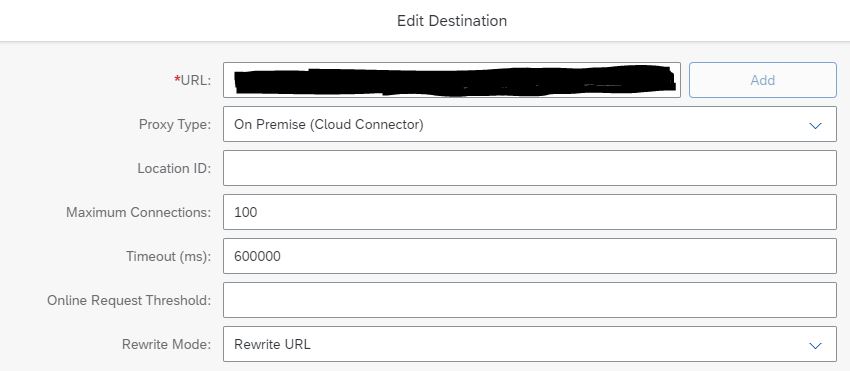

URL – http://<sap cloud connector virtual host>:<HTTPS service port>/sap/opu/odata/MERP//SAP_ASSET_MANAGER_2010/
  • Proxy Type – On Premise(Cloud Connector)
  • Maximum Connection – 100
  • Timeout (ms) – 600000
  • Rewrite Mode – Rewrite URL

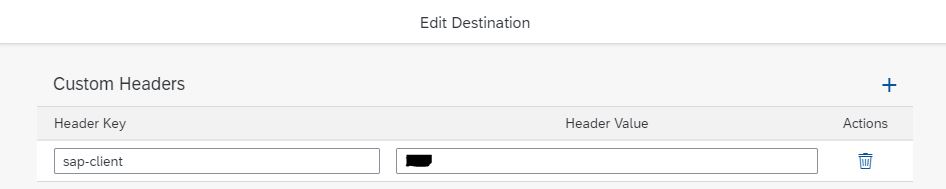

On Next Custom Header Add Header ‘sap-client’ & Value as ‘Client of backend system’

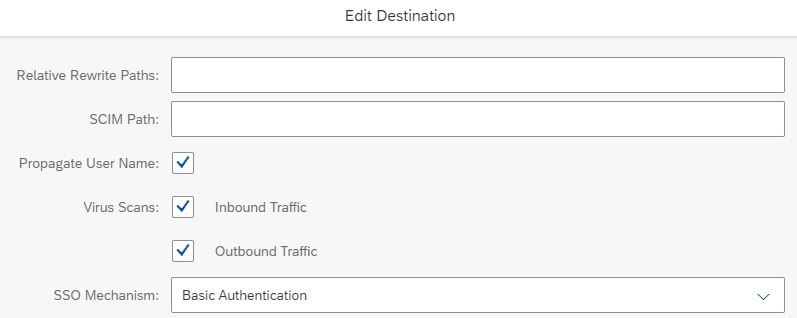

On Next Check Propagate Username & Virus Scan , and Select SSO Mechanism as Basis Authentication

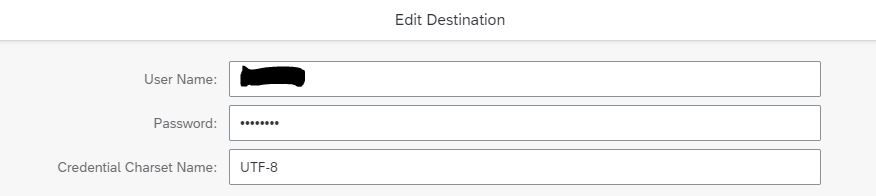

On Next Maintain Username & Password of backend system & Click on Finish to Save the Destination.

Once Saved Ping Successful Destination Check.

Create the second destination with Destination Name – DEST_SAM2010_ONLINE_PPROP & enter URL – http://<sap cloud connector virtual host>:<HTTPS service port>/sap/opu/odata/MERP/SAP_ONLINE_LOOKUP_EXT_2010/ and rest follow the same steps we have followed to create the Destination – DEST_SAM2010_PPROP.

Step 5 – Now, Go to Mobile Application under Native Hybrid Option

Click on New

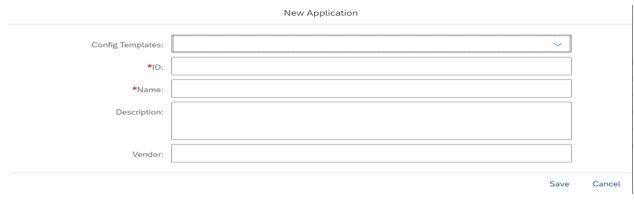

Maintain Below Information as mentioned below for SAP Asset Manager 2010 under New Application –

  • Config Templates: ‘Mobile Development Kit’
  • ID: ‘com.sap.sam2010.oauth’
  • Name: ‘SAP Asset Manager 2010’
  • Description: ‘SAP Asset Manager 2010’
  • Vendor: ‘SAP’

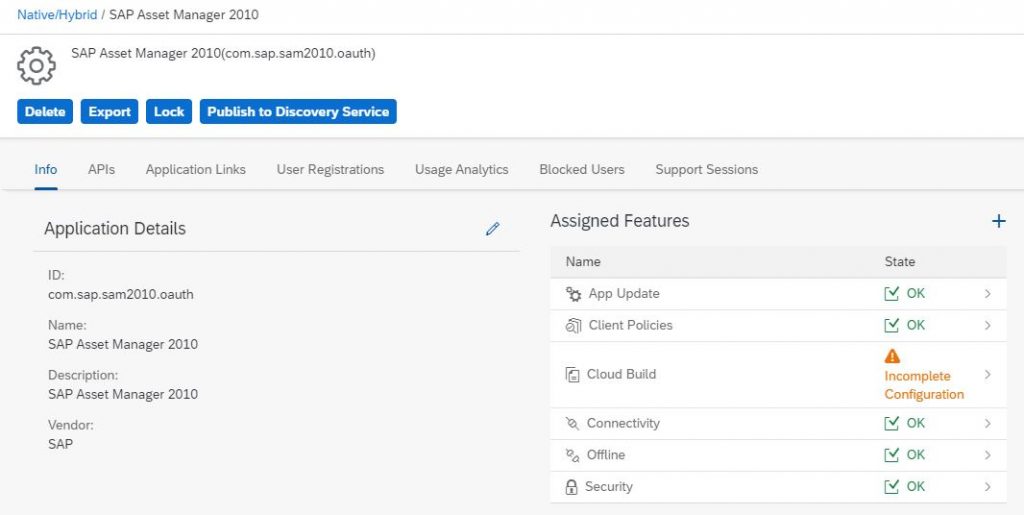

Step 6 – Enter into the create New Application & Select Connectivity

Now add both Destination we have Created under Mobile services Platform (i.e. (DEST_SAM2010_PPROP and DEST_SAM2010_ONLINE_PPROP)

Once added check Odata Connection Test Successful.

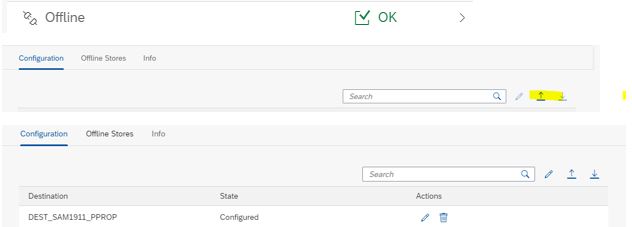

Step 7 – Now login to backend S/4 HANA system and hit T-Code SE38 (Execute report – /MERP/CORE_OFFLINE_CONFIG_PROG) to generate Offline MDK Global.ini & Import it into Offline Tab under 2010 Application.

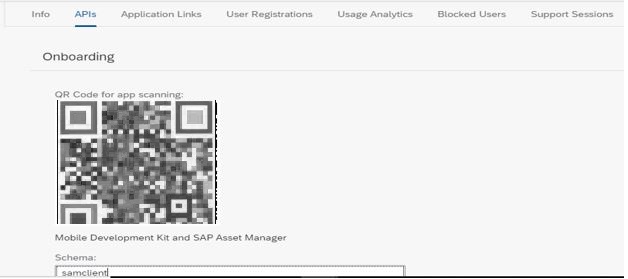

Step 8 – Under 2010 Application select API to get QR Code for your Application Login.

Step 9 – Logon Procedure using SAP Asset Manager App in Mobile Device using QR Code ( using Android or IOS) –

Download the SAP Asset Manager App using Play Store Or Apple Store ( in my case Android)

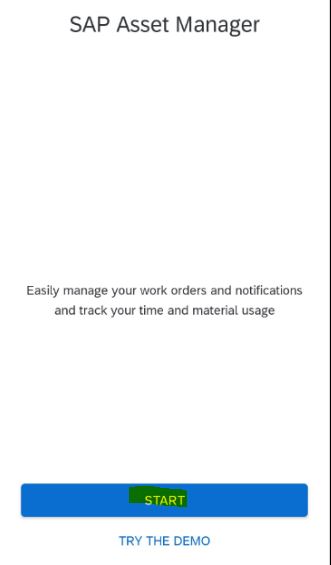

Open the App & Click on Start

Scan the QR Code

Enter SAP BTP Mobile Services Platform Cockpit Username & Password to authenticate

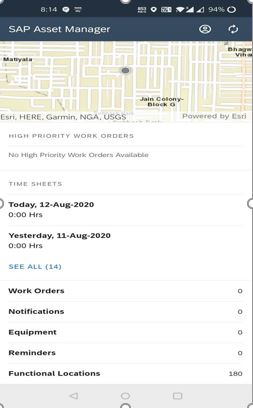

Once Synchronized by default you will get Functional Locations Data on the App as below –

SAP Asset Manager 2010 is now successfully integrated with your S/4 HANA 2020 FPS00 system
