Implementing attribute view with customer

In this blog, I am sharing basic overview of Implementing attribute view with customer

Attribute view:

  • Attribute views are dimensions
  • Attribute views are used to join to a dimension or attribute view.
  • In most cases used to model master data like entities (like product, employee, business partner)
  • Highly re-used and shared in analytic- and calculation views

How to create attribute view with customer:

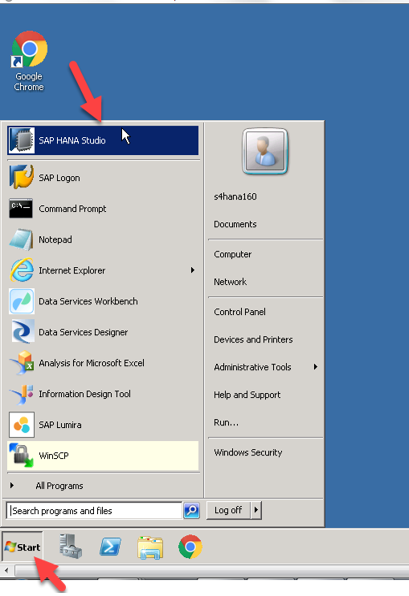

Go to remote desktop connection<start<click on Sap Hana studio

How to create a package:

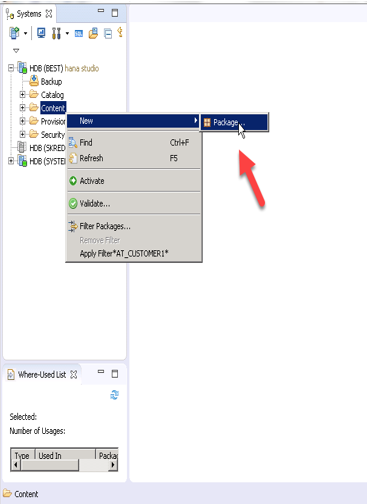

Expand best system<right click on content<new<click on package

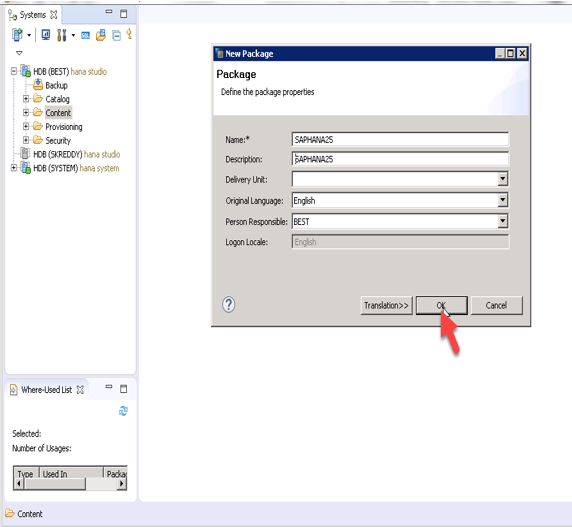

Provide name<provide description<click ok

SAP S/4HANA, MM (Materials Management), SAP HANA, SD (Sales and Distribution)

How to create a sub package:

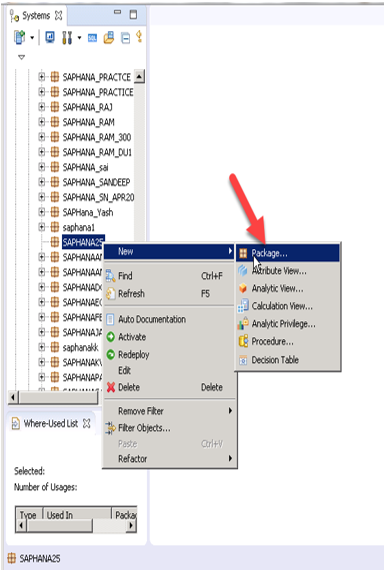

Right click on package<new<click on package

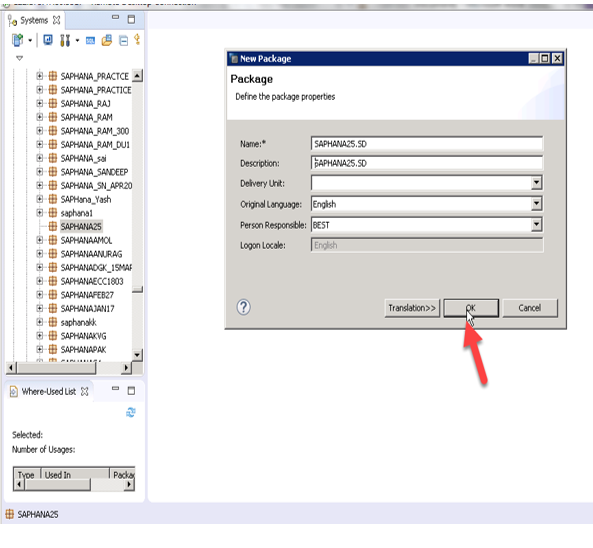

Provide name as SD <provide description <click ok

How to create an attribute view:

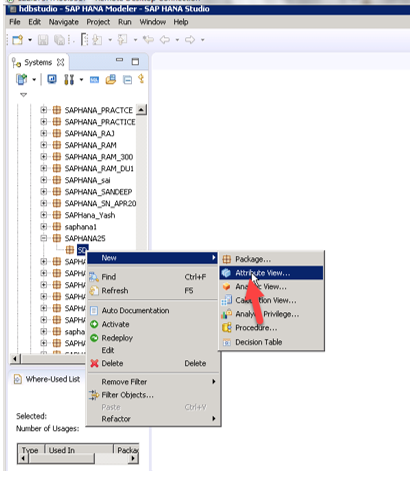

Right click on sub package<new<click on attribute view

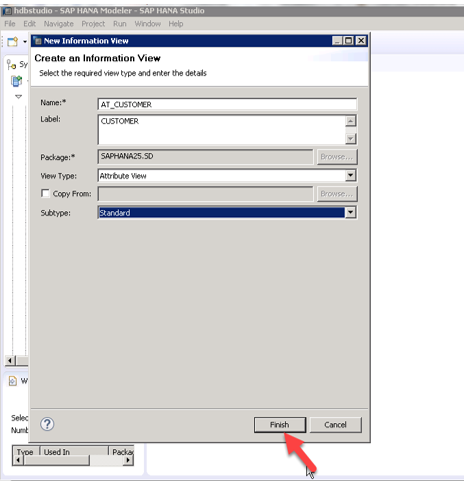

Provide name AT_CUSTOMER<provide label<select subtype as standard <click finish

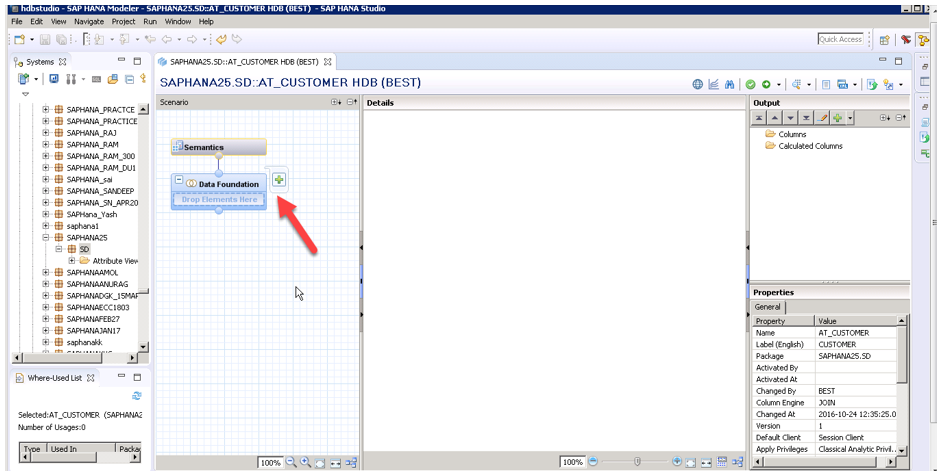

Click on plus icon to add objects

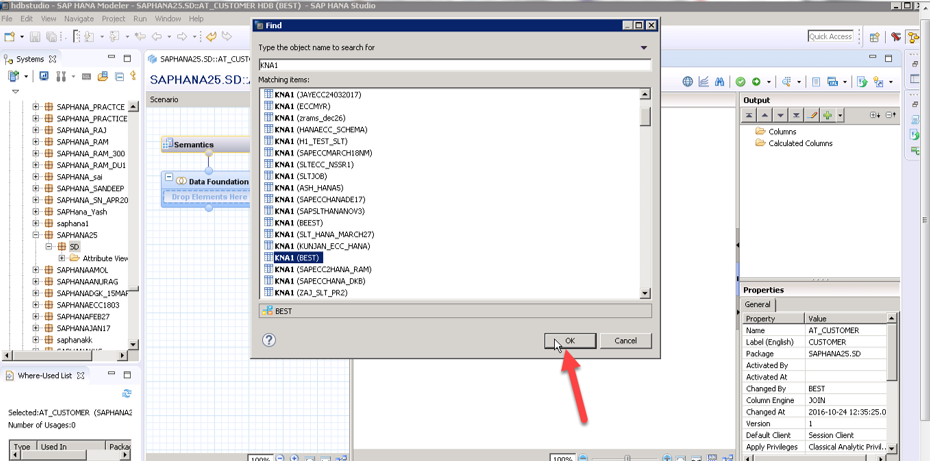

Search for table KNA1<click on table<click ok

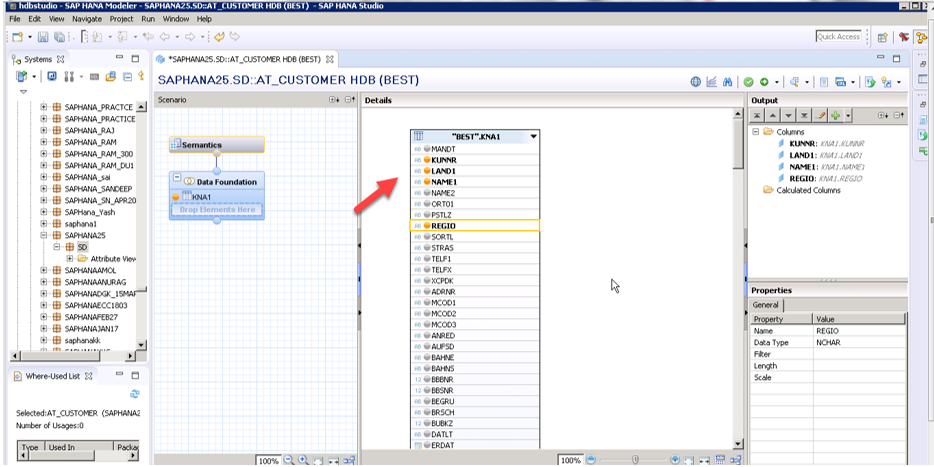

Select required output columns

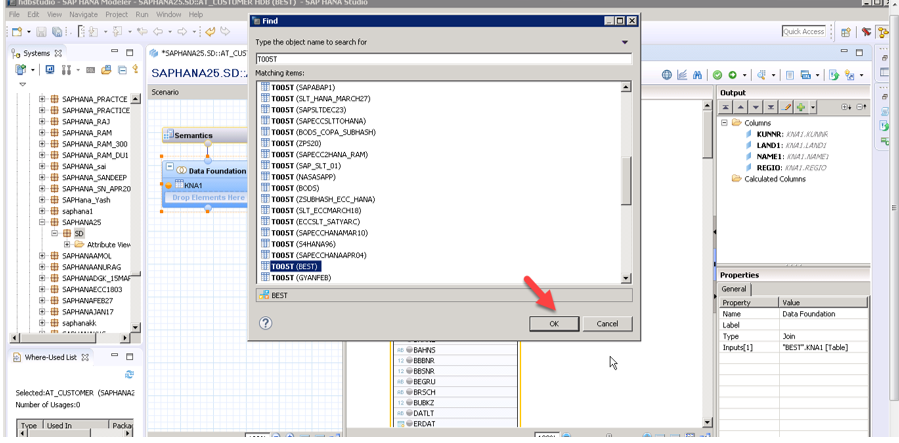

Again click on plus icon<enter table T005T<click ok

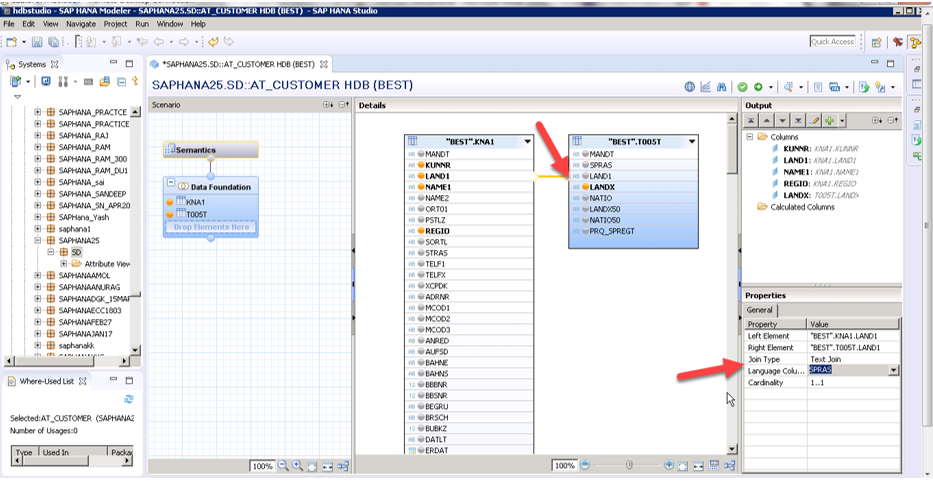

Connect KNA1 LAND1 to T005T LAND1 to get output as LANDX <select LANDX as output coloumn

Join type as text join<language as SPRAS

Text Join: text join is used to fetch the description based on user’s session language. Once we implement the text join in Sap Hana, it automatically finds out user’s language and gives description in that language.

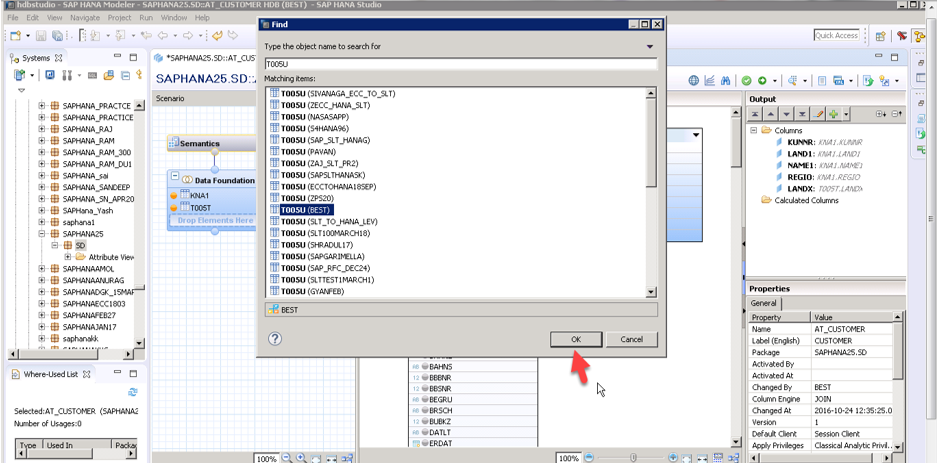

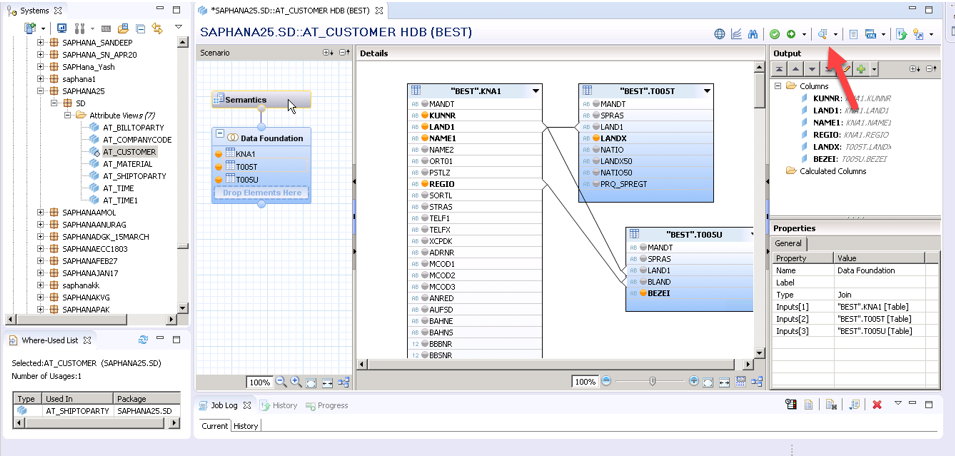

Again click on plus object<select T005U table<click ok

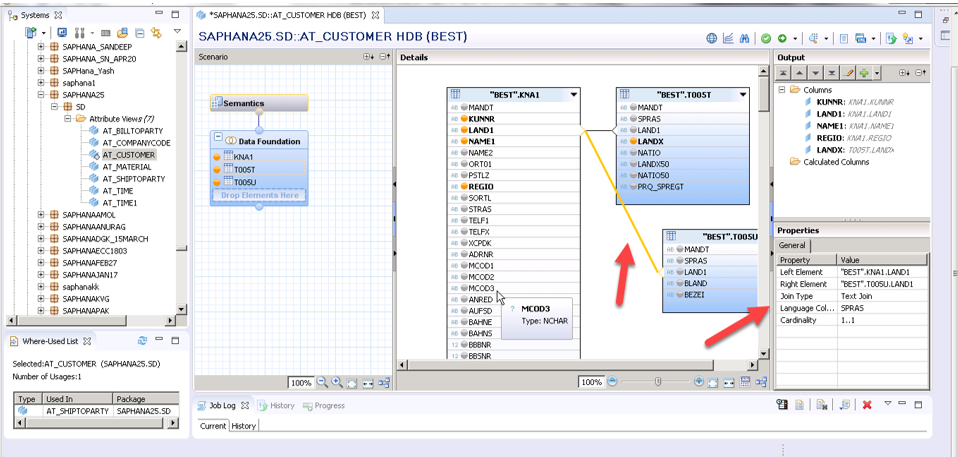

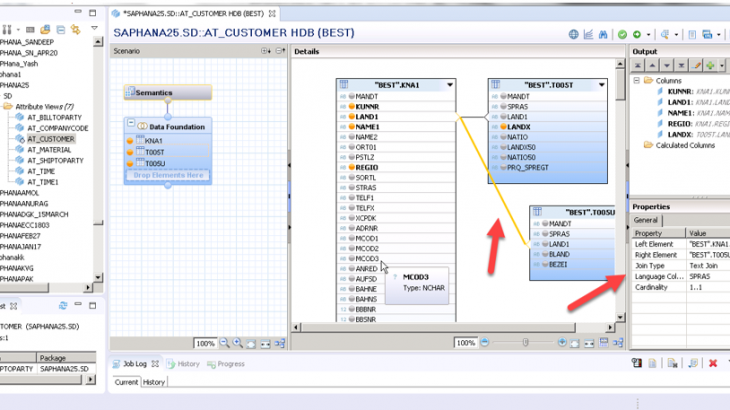

Join KNA1 LAND1 to T005U LAND1 because regions are specified with country

Join type as text join <language as SPRAS

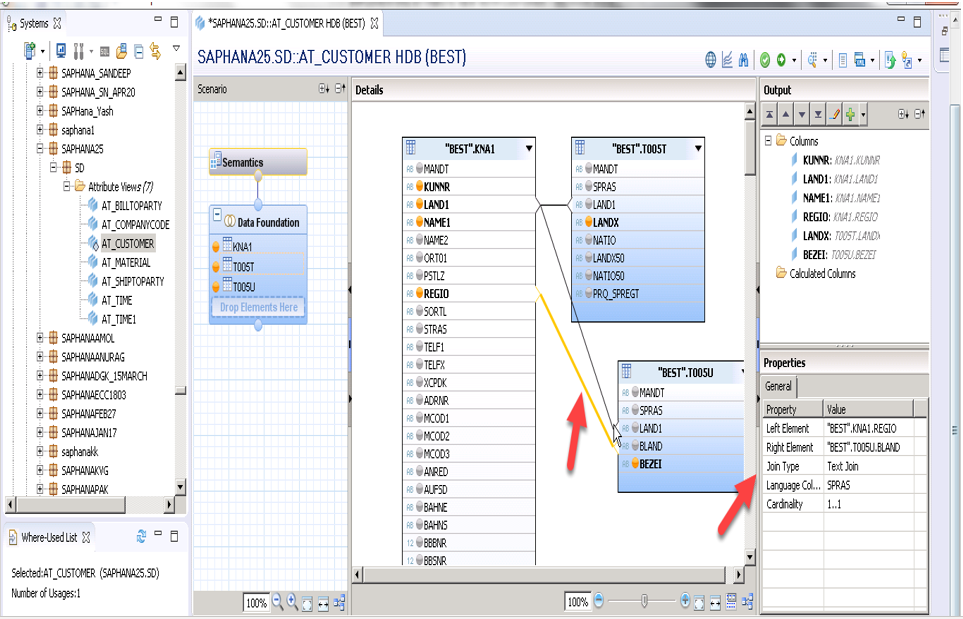

Join KNA1 REGIO to T005U BLAND<select output column as BEZEI

Join type as text join <language as SPRAS

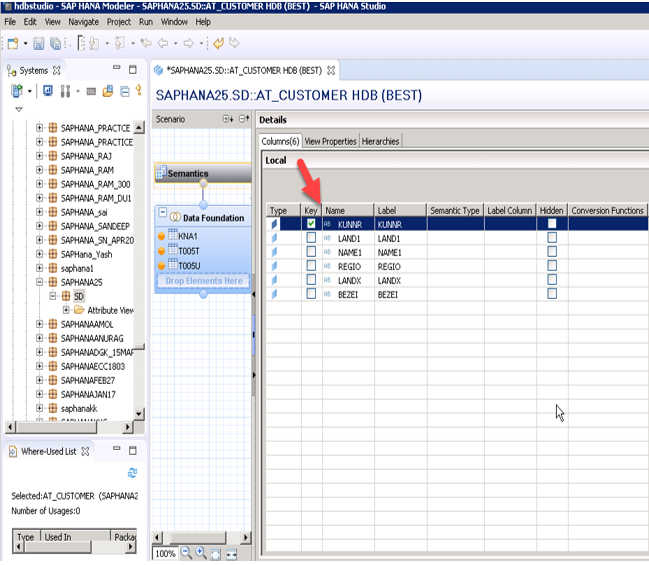

Click on semantics<select key attribute as KUNNR

Key attributes:

Key attribute is a kind of primary key for the attribute view. But, it doesn’t prevent the

Passage of duplicate values. It is basically needed to determine the join execution order

At the run time when multiple tables are used in an attribute view.

In attribute views there is one mandatory step. Whatever keys in the table one key?

We need to define inside an attribute view

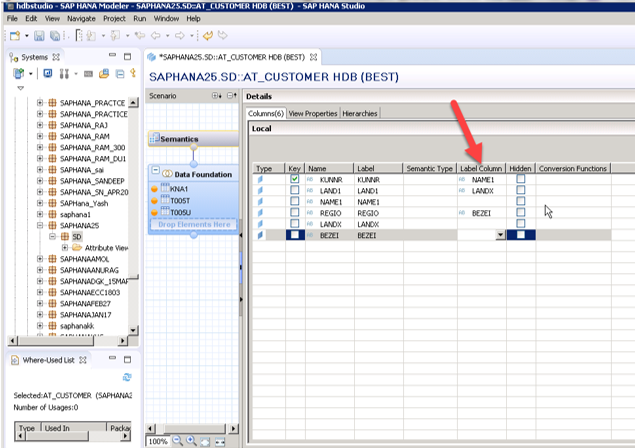

Provide label mapping

Label mapping:

We can choose to associate an attribute with another attribute description. Label

Mapping is also called as description mapping. For example if a1 has a label column

B1, then you can rename b1 to a1.description. The related columns appear side by

Side during data preview

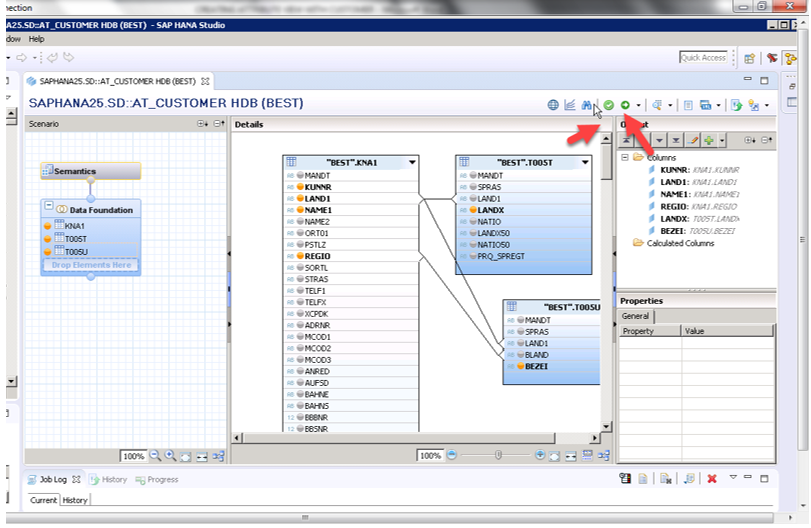

Click save and validate<click save and activate

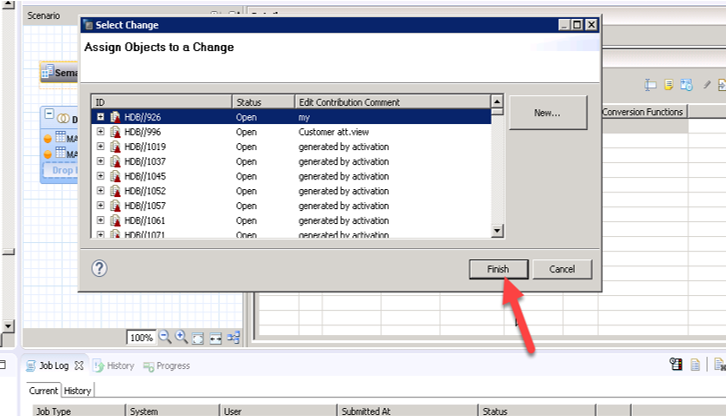

<assign an object<click finish

Use of assign object: in the select change dialog, either create a new id or select an existing change id that you want to use to assign your change

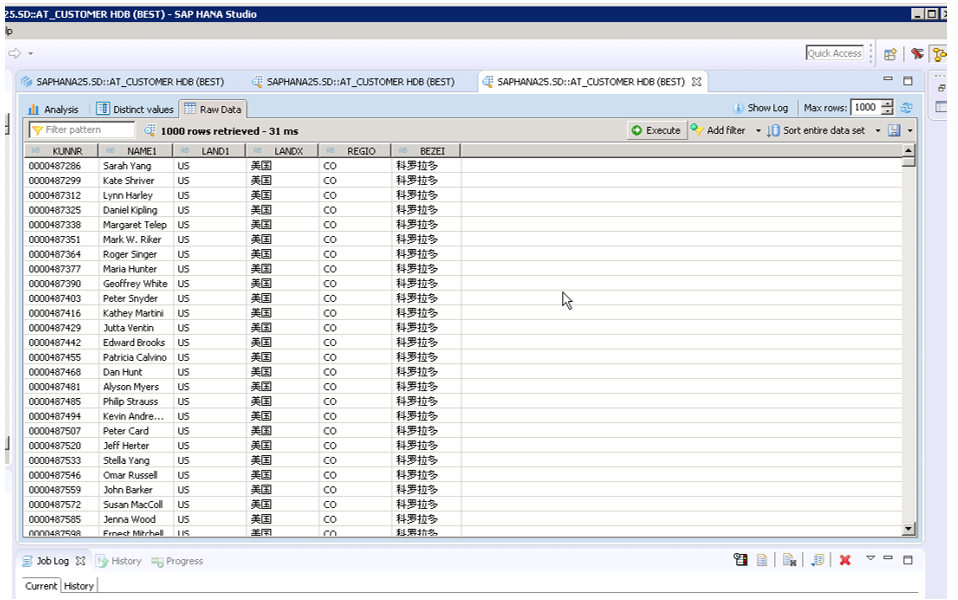

Click on data preview

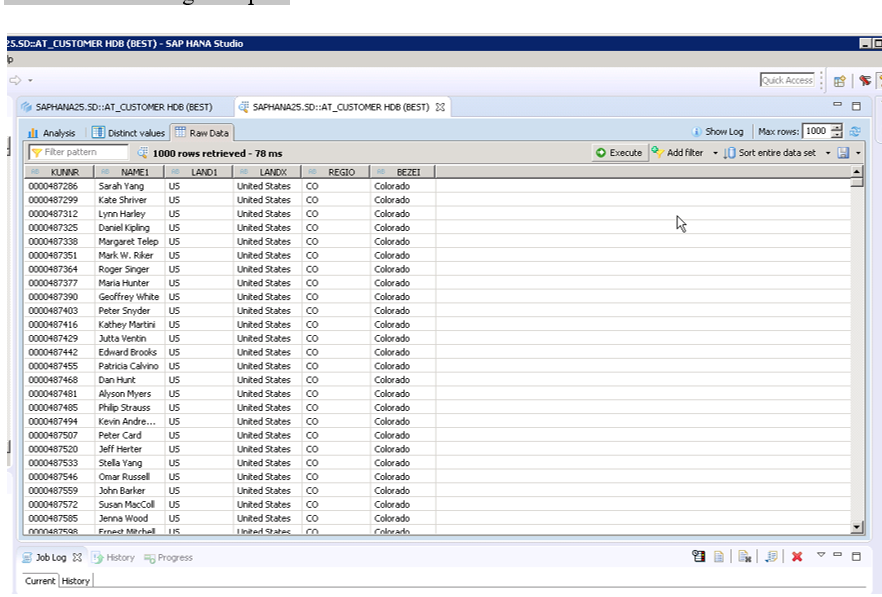

Click raw data<to get output

Output in different language:

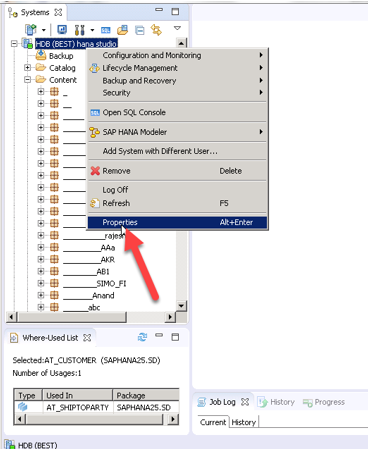

Go to best system<right click on system<click on properties

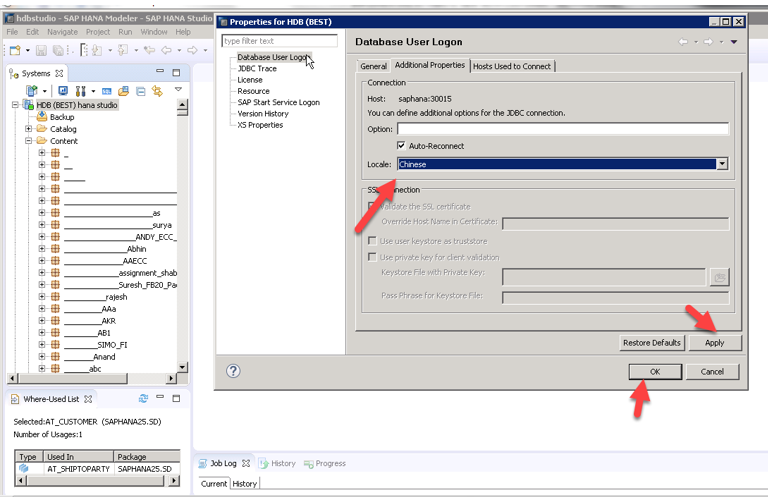

Click additional properties<select locale<click apply<click ok

Click save and validate<click save and activate<click on data preview<click on raw data
