GRC 12 Fiori launchpad Configurations

GRC 12 has new feature to use Persona based Fiori launchpad for easy navigation

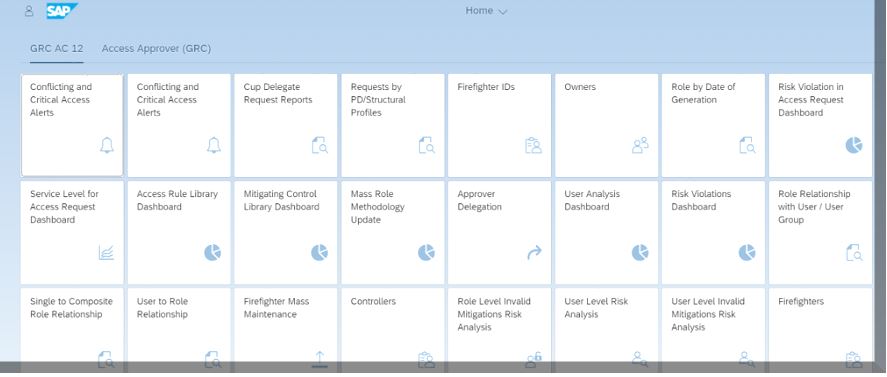

In this version ,SAP delivers more standard tiles for front end navigation (similar functionality as NWBC links used in previous versions) Example catalog tiles for dashboards navigation provides detail information on key metrics.

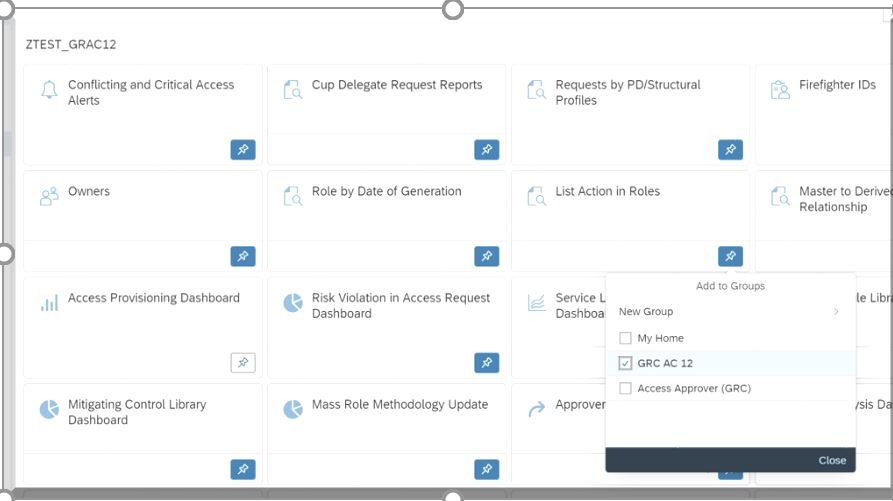

We can also create our own groups and add the tiles we use frequently instead of searching the links through NWBC screens

This blogs explains the configuration steps required to use Fiori as the front end for both Access control and Process control components.

Overview

1. Front end components provides Business catalogs and Business Roles.

2. Back-end components provides Technical catalog which has the information about the tiles. SAP delivers these standard catalog ID both for Access and process controls functionalities.

3. We need to replicate the technical catalog from back-end into the front-end to establish a connection between technical catalog and business catalog using a standard SAP program.

Prerequisite

Following Access control and Process control GRC components needs to be installed in front-end gateway system.

UIGRAC01 – Access control Components

UIGRPC01 – Process Control Components

SAP UI has to be in 7.52 SP02

Configuration steps

Step 1: Setup Trusted RFC connection’s from Gateway system to GRC system.

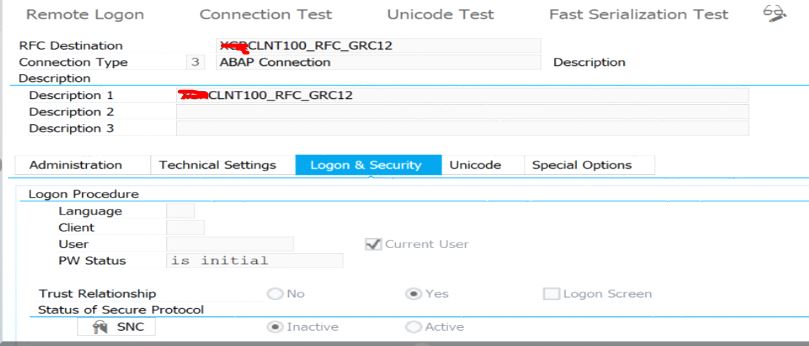

Trusted R/3 Connection (type 3 – ABAP connection) – Login to Transaction SM59 to create the connections.. Set up these connection as Trusted connections and set the current user to true

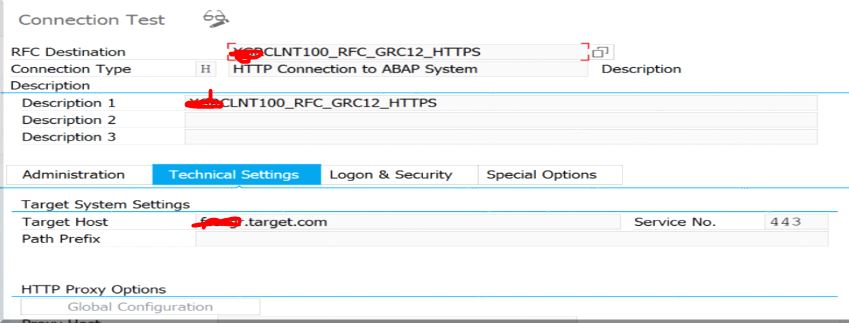

HTTP connection ( type H – HTTP connection) – Recommend to use HTTPS port and set SSL option as true

Step 2 : Map the RFC Connections to SAP system Aliases

Maintain below standard views as required in front end gateway system using transaction SE16

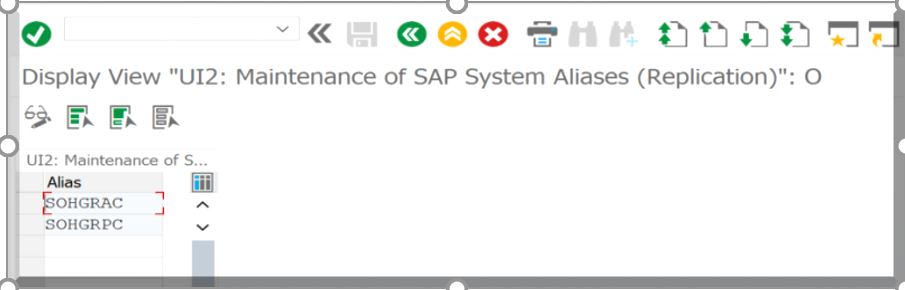

a) /UI2/V_SYSALIAS – Add GRC components ( SOHGRAC and SOHGPC) to the SAP system Aliases table view

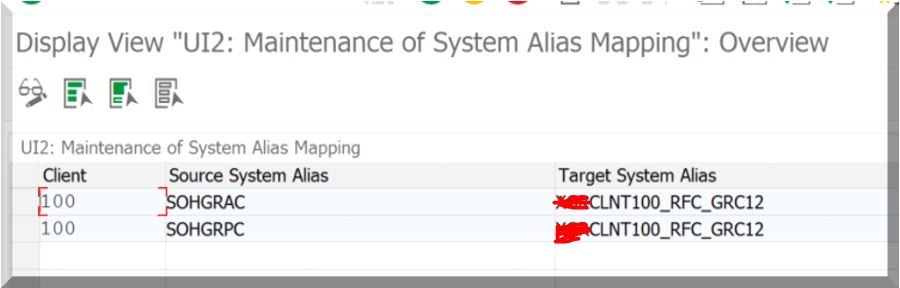

b) /UI2/V_ALIASMAP – MAP the system aliases to R/3 ABAPRFC connection created in step 1

Step 3: Replicate the Technical Catalog from the Back-end System

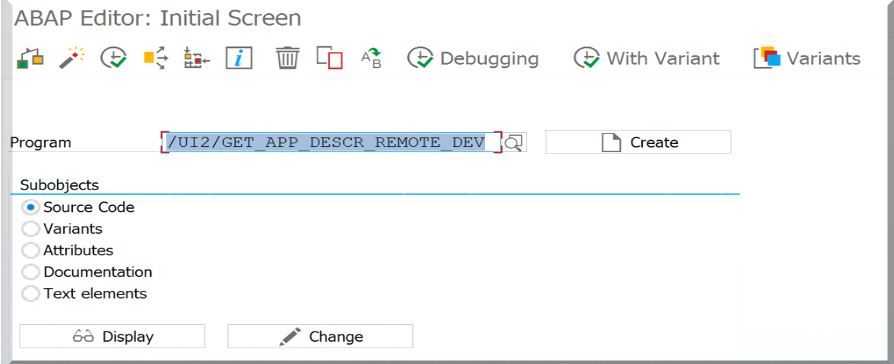

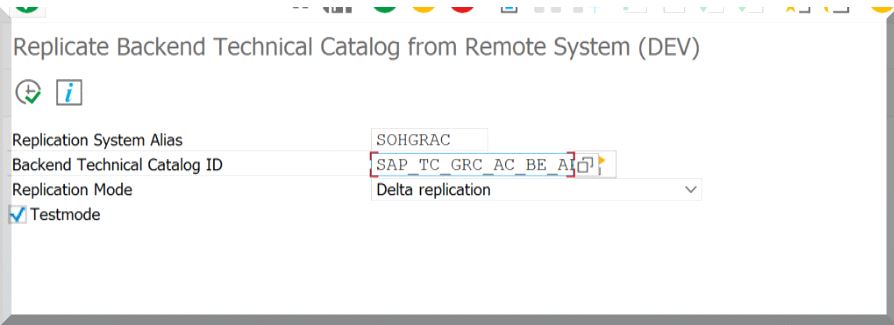

Launch the report /UI2/GET_APP_DESCR_REMOTE_DEV using Transaction SE38

Run the report with below details for Acess Control components

SOHGRAC – system Alias

SAP_TC_GRC_AC_BE_APPS – SAP standard back end program for replication

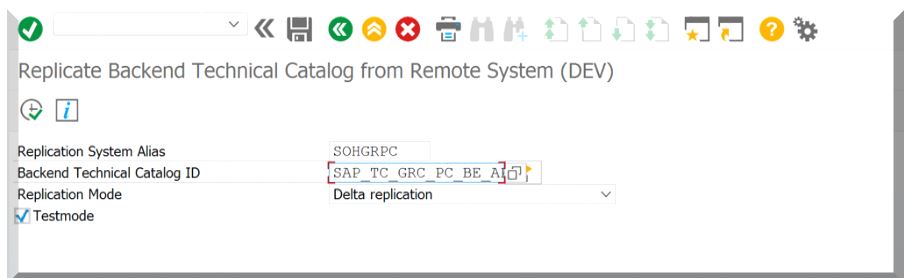

Run the report with below details for PC components

SOHGRPC -– system Alias

SAP_TC_GRC_PC_BE_APPS -– SAP standard back end program for process control replication

Run in test mode initially.

If logs looks good, unchecked the test mode and run the program again

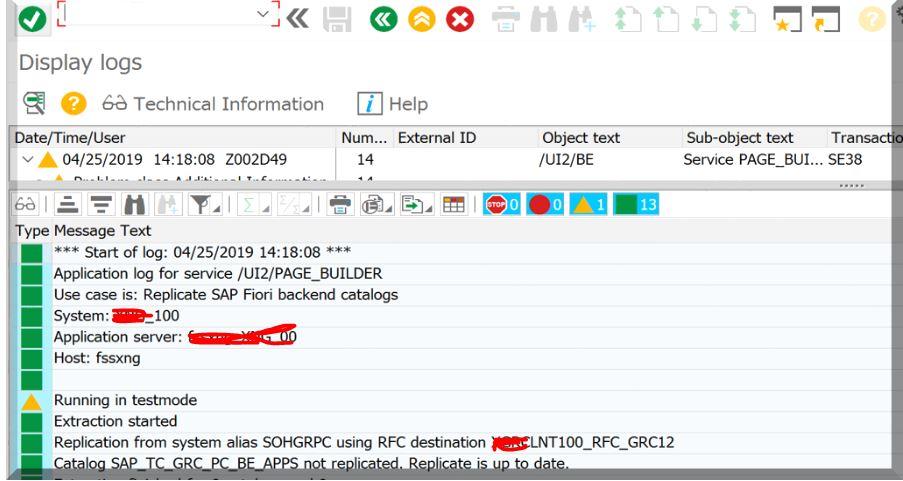

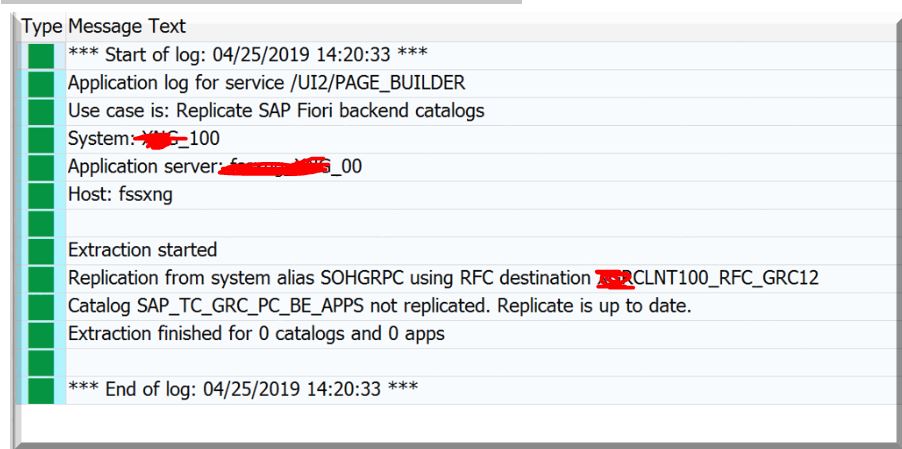

Note: Running for first time should show the number of catalog and apps added.. Otherwise it would

Show the message replication is up to date as shown below..

Note: SAP recommend scheduling the report to run daily. As the report needs to run after every system update, scheduling the report to run daily ensures that you have up-to-date information in the SAP Fiori Launchpad designer.

Step 4 : Create Fiori Catalog page in font end system

Execute transaction /N/UI2/FLPD_CUST

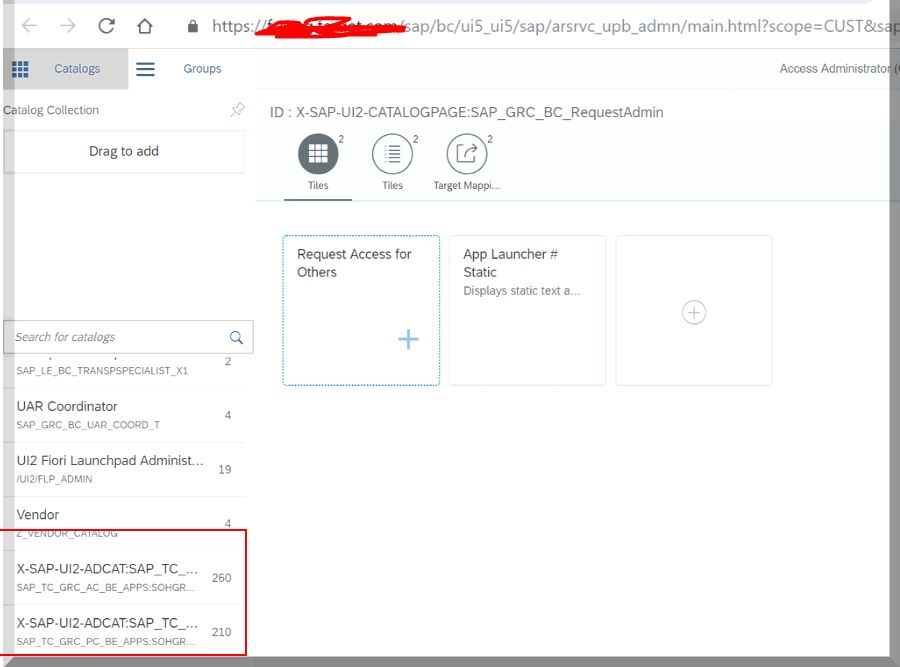

You can notice that new catalog pages created after executing the above program’s

a) ID : X-SAP-UI2-ADCAT:SAP_TC_GRC_AC_BE_APPS:SOHGRAC

b) ID : X-SAP-UI2-ADCAT:SAP_TC_GRC_PC_BE_APPS:SOHGRPC

Note: we cannot assign the above standard catalogs to the role

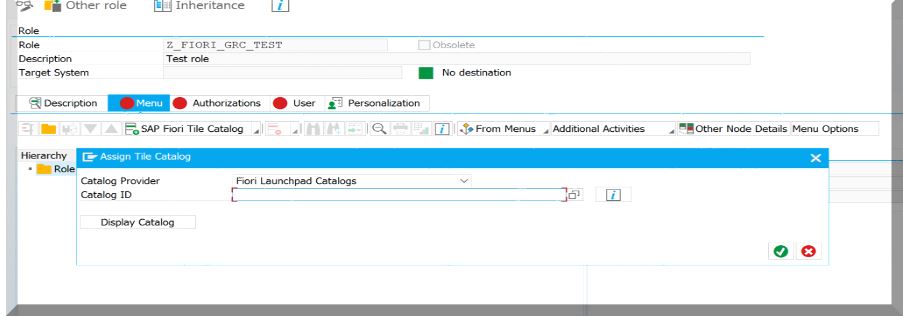

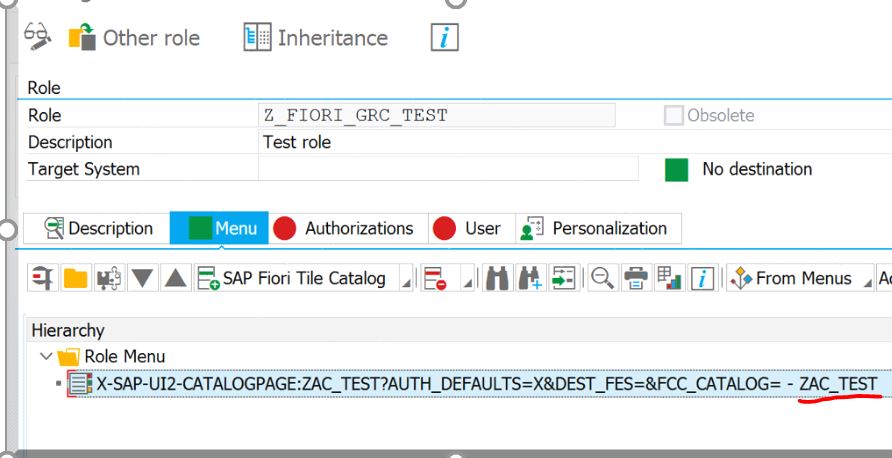

Copy the above standard catalogs to Z version to customize the tiles and also to add in the PFCG role.

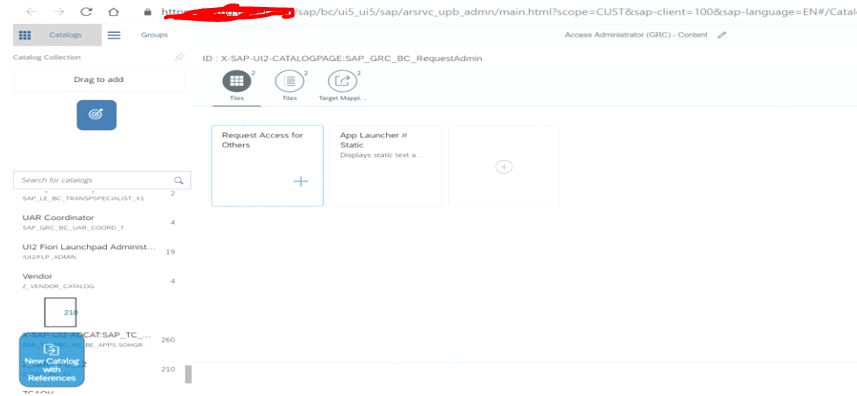

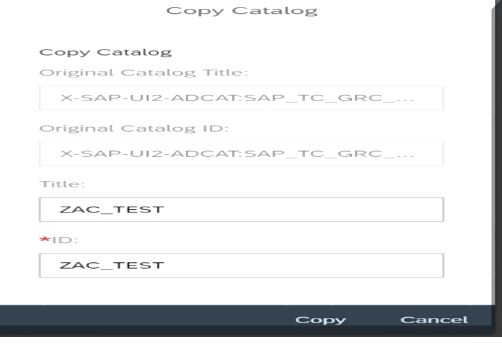

Copy to new catalog entering Title and ID

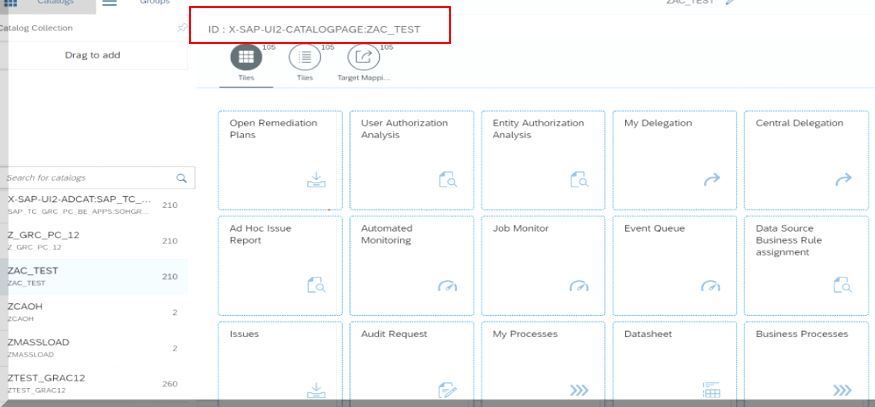

New catalog page is created as shown below

You can also use the delivered Business catalogs to customize the different front end navigation as required.. In our requirement we just had one team to access all the components.

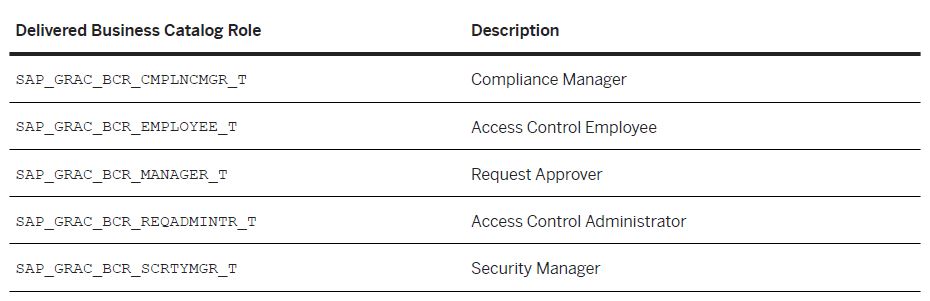

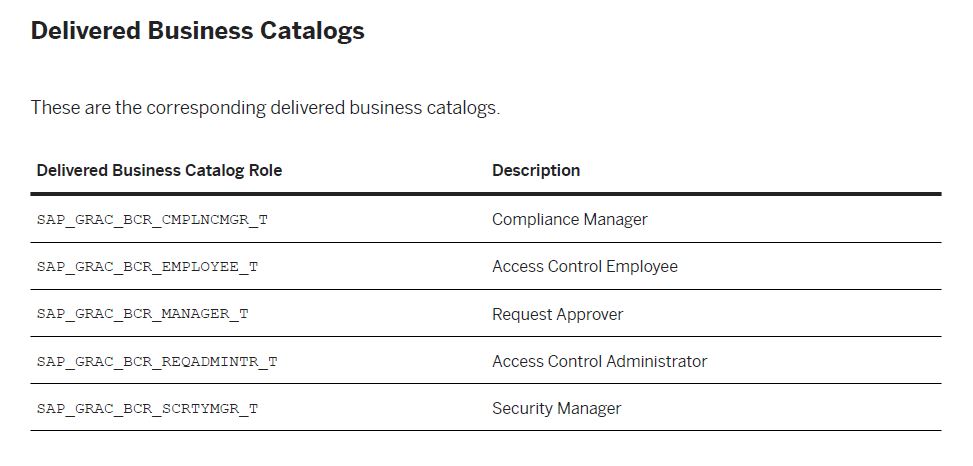

The following business catalogs and business roles are delivered as part of the front-end component UIGRAC01. You can customize these roles as required.
