Determine Storage bin Blank while Put away-SAP EWM

Introduction: Now a days in most of the business scenarios in complex warehouses want to put away the material in whatever the bin they want (System should not determine the destination bin, instead system should determine till the storage type only).

How we are going to achieve this? What are the options available.

To achieve the above requirement, following steps needs to be followed

1. Storage type configuration

2. WPT configuration

3. Put away strategies

4. Product Master

5. Testing

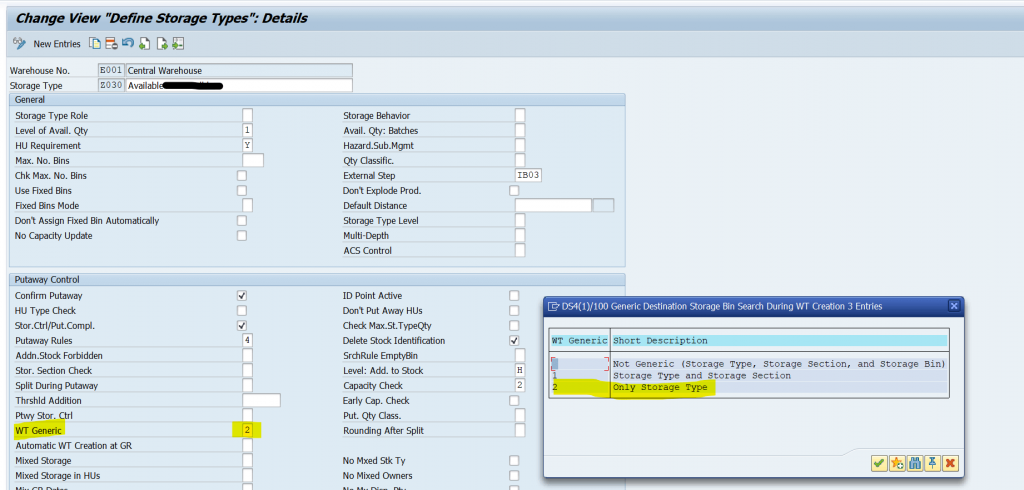

1. Storage type config in which destination should not be determined

IMG Path: SCM Extended Warehouse Management – Extended Warehouse Management – Master Data – Define Storage Types

In storage type in the put away control section select WT GENERIC as 2-Only Storage Type, that means when-ever our put away strategy search for the storage type, section and bin it will search till storage type only so that user can put away the material what ever the bin he wants to put away in that particular Z030 Storage type.

2. WPT config for put away

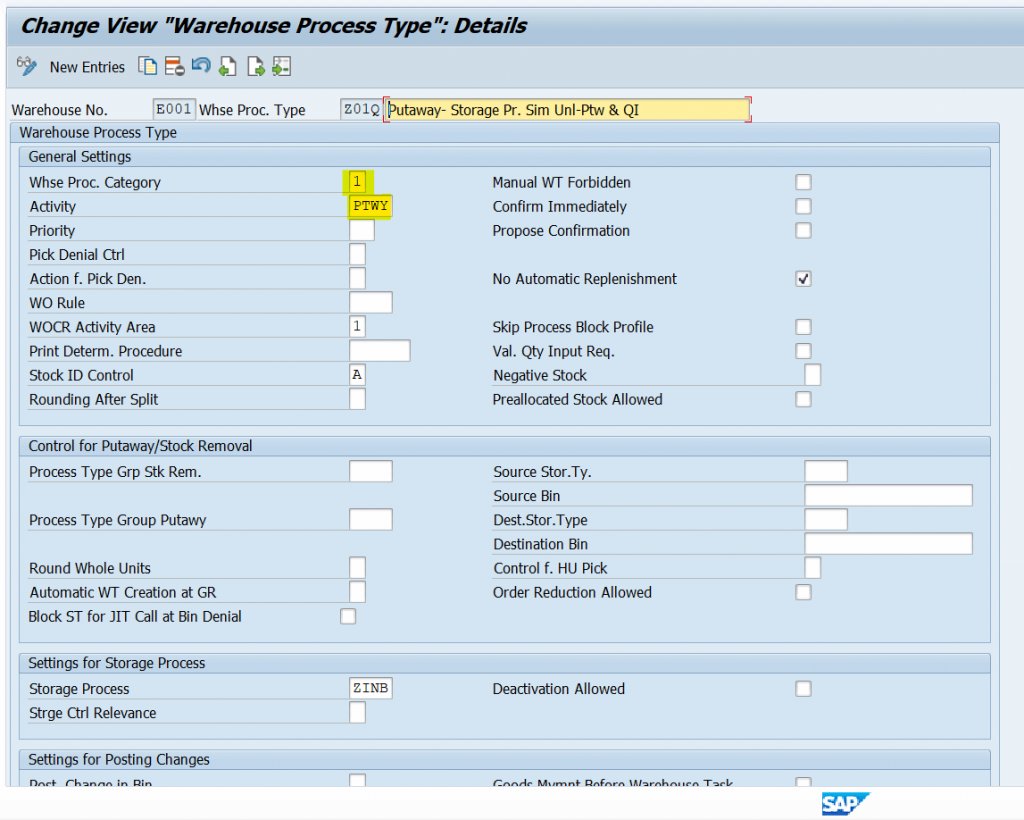

IMG Path: SCM Extended Warehouse Management – Extended Warehouse Management – Cross Process Settings – Warehouse Task – Define Warehouse Process Type

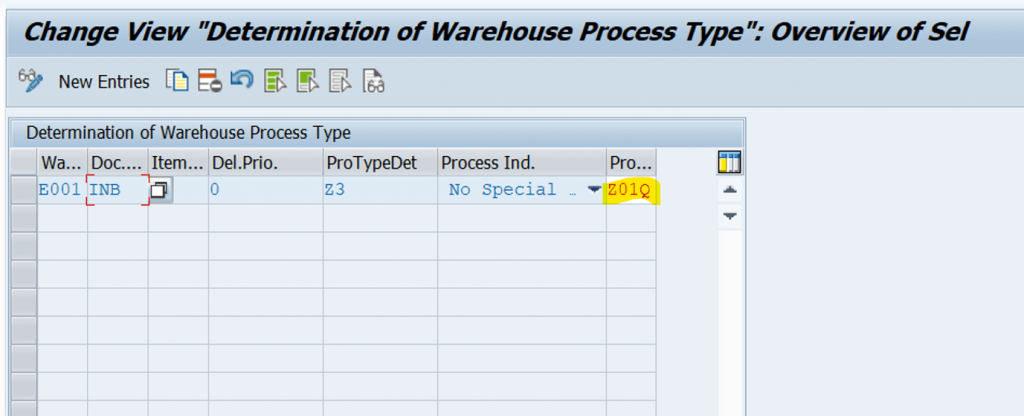

IMG Path: SCM Extended Warehouse Management – Extended Warehouse Management – Cross Process Settings – Warehouse Task – Determine Warehouse Process Type

3. Put away strategies

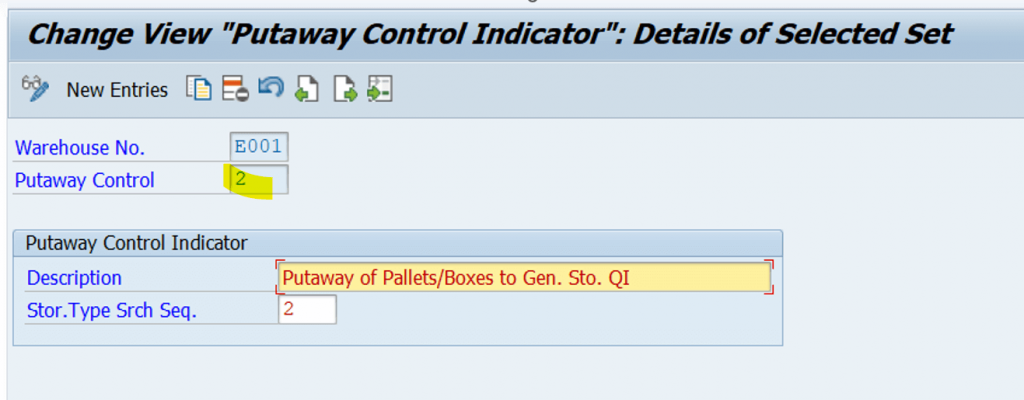

IMG Path: SCM Extended Warehouse Management – Extended Warehouse Management – Goods Receipt Process – Strategies – Storage Type Search – Define Put away Control Indicator

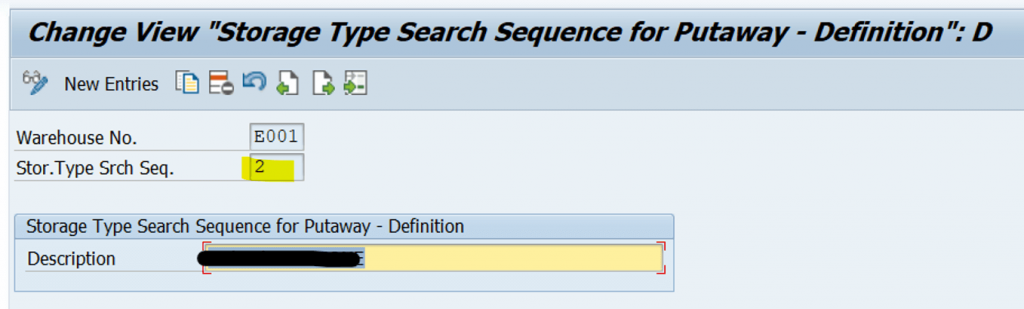

IMG Path: SCM Extended Warehouse Management – Extended Warehouse Management – Goods Receipt Process – Strategies – Storage Type Search – Define Storage Type Search Sequence for Put away

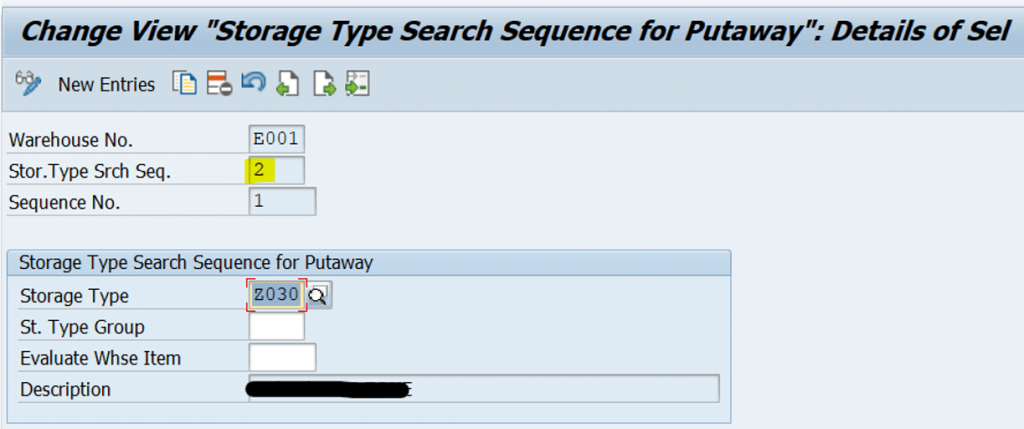

IMG Path: SCM Extended Warehouse Management – Extended Warehouse Management – Goods Receipt Process – Strategies – Storage Type Search – Assign Storage Types to Storage Type Search Sequence

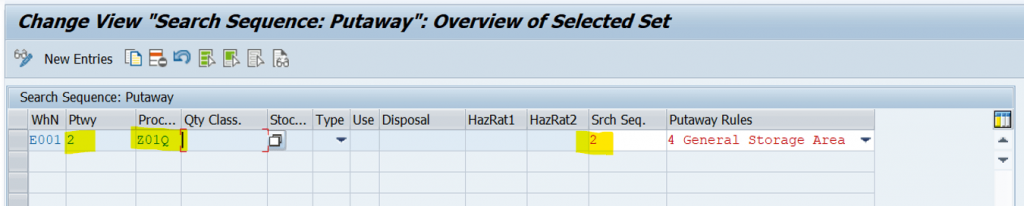

IMG Path: SCM Extended Warehouse Management – Extended Warehouse Management – Goods Receipt Process – Strategies – Storage Type Search – Specify Storage Type Search Sequence for Put away

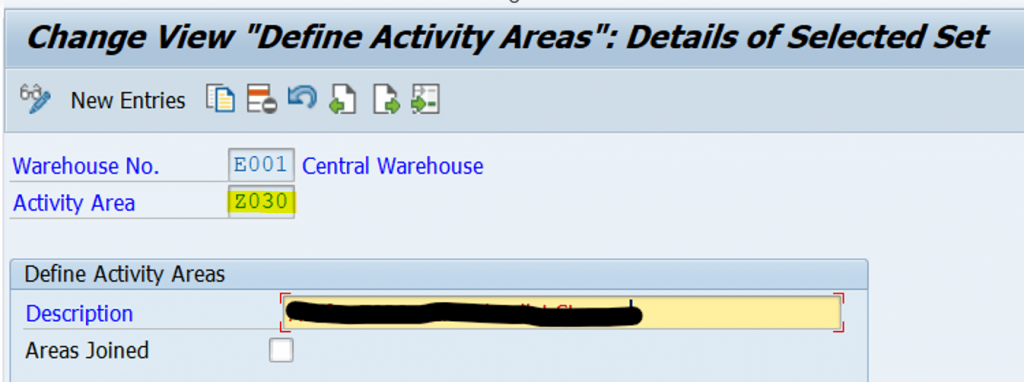

IMG Path: SCM Extended Warehouse Management – Extended Warehouse Management – Master Data – Activity Areas – Define Activity Areas

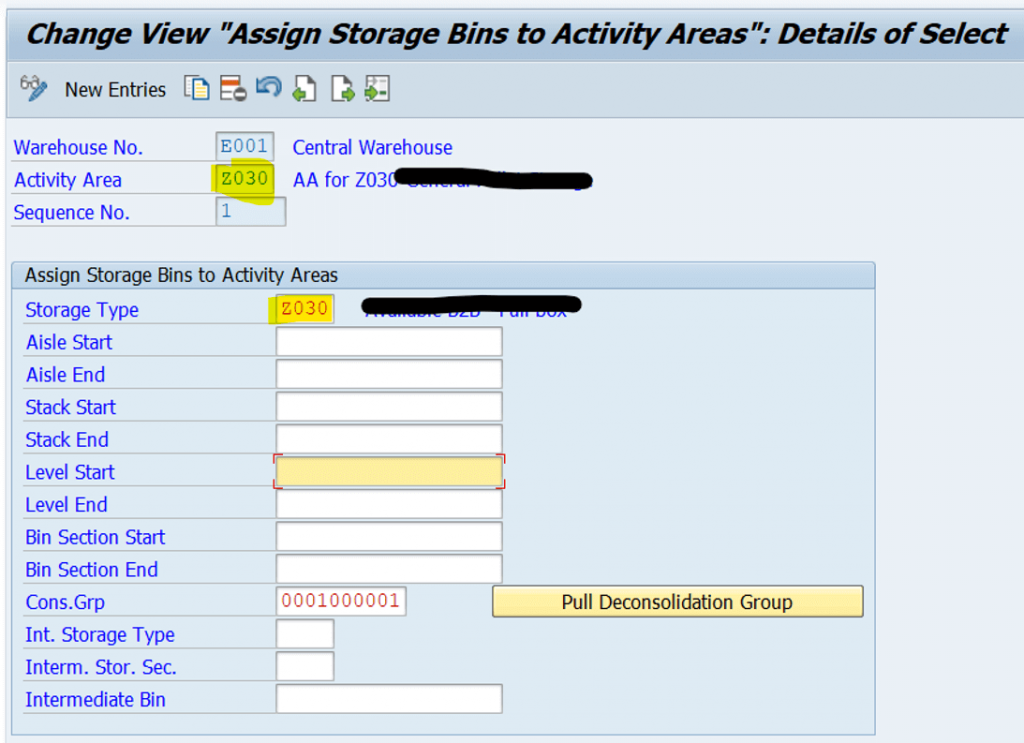

IMG Path: SCM Extended Warehouse Management – Extended Warehouse Management – Master Data – Activity Areas – Assign Storage Bins to Activity Areas

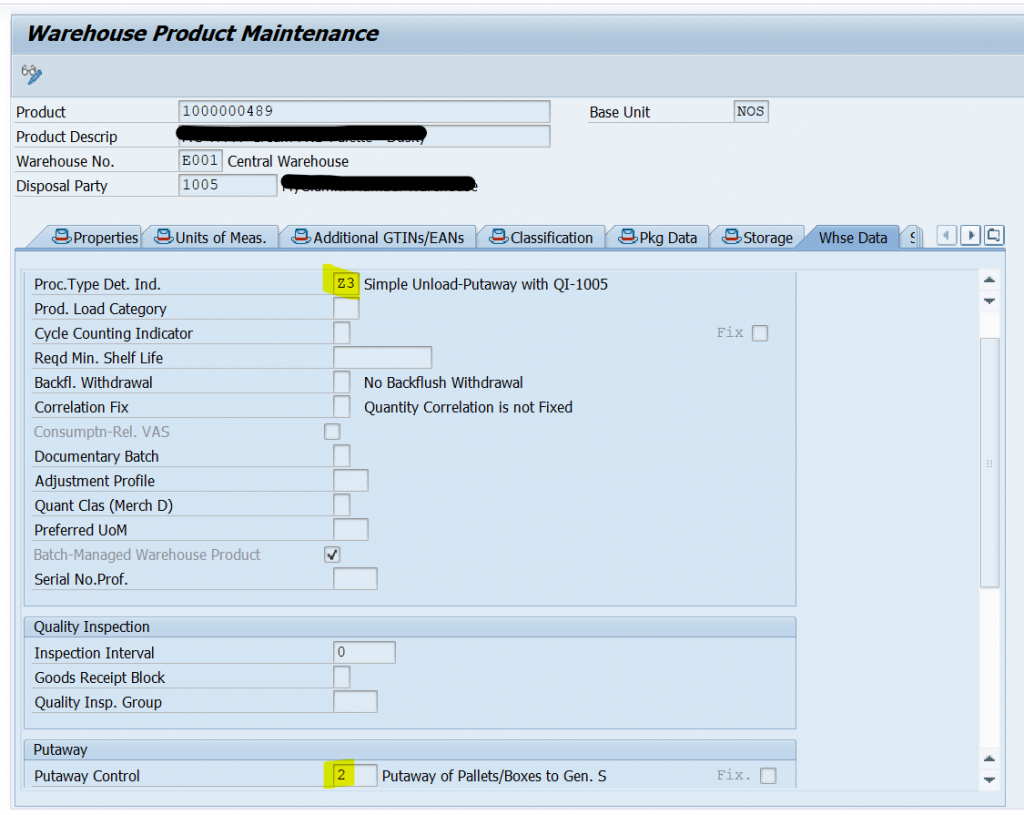

4. Product Master (/N/SCWM/MAT1)

5. Testing:

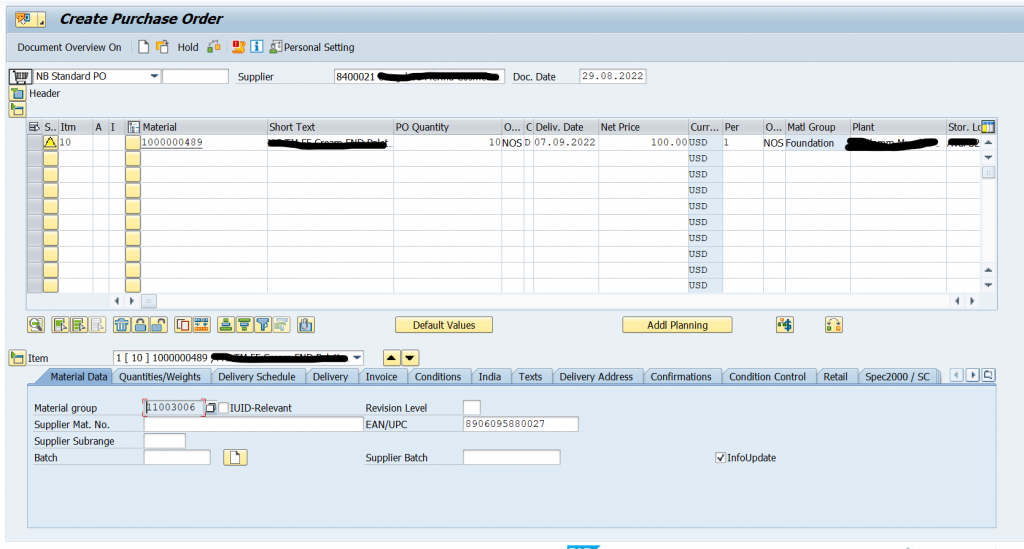

1. Create Purchase order (ME21N)

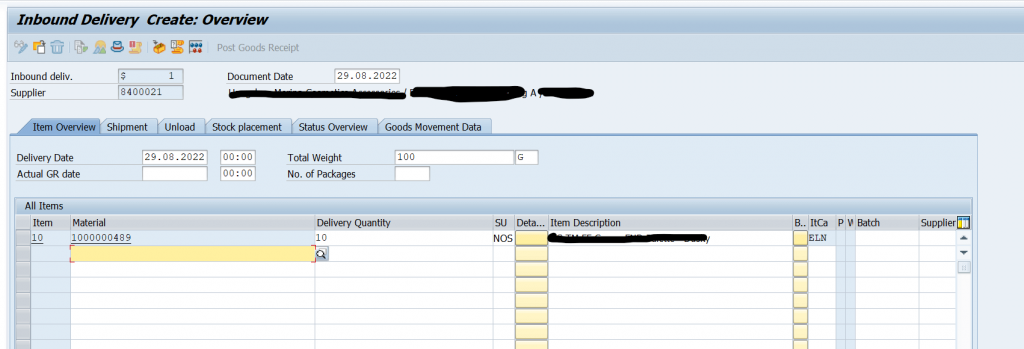

2. Create Inbound Delivery (VL31N)

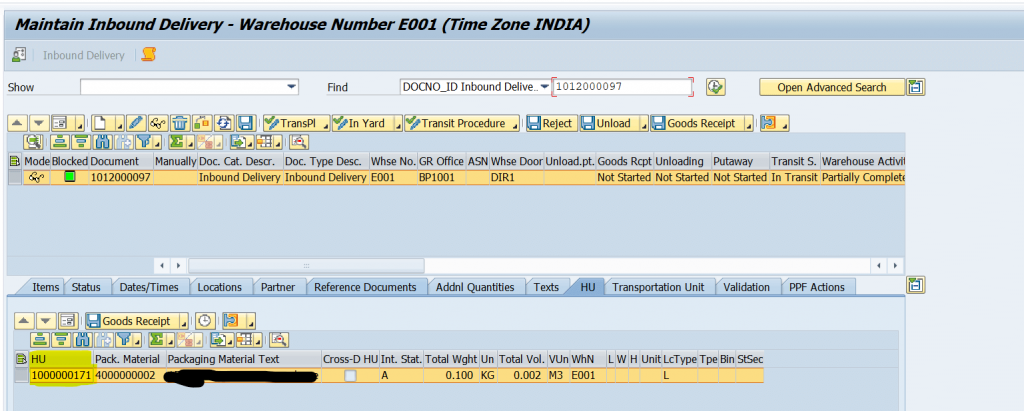

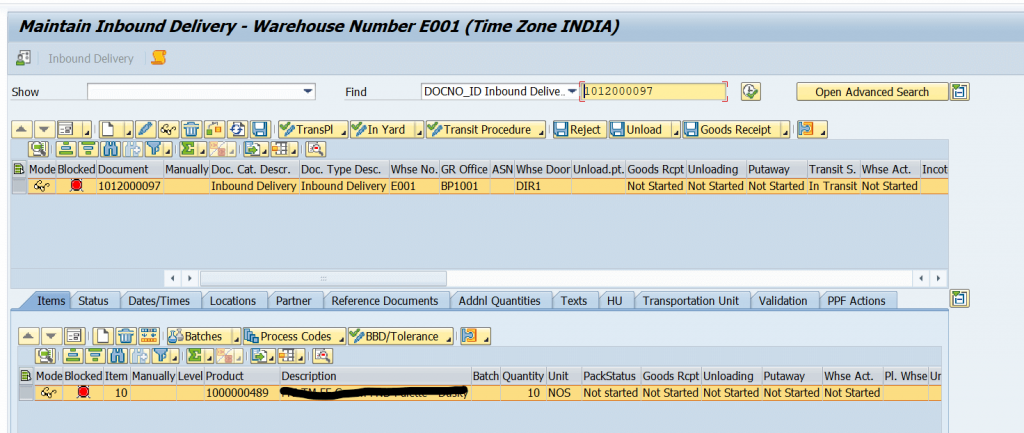

3. /N/SCWM/PRDI

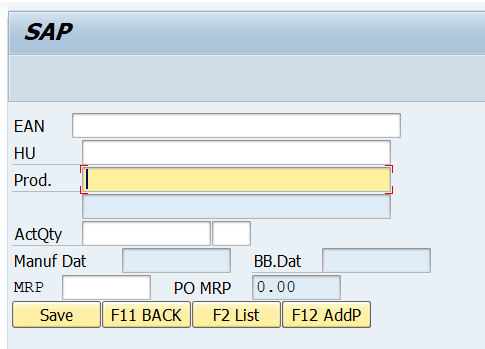

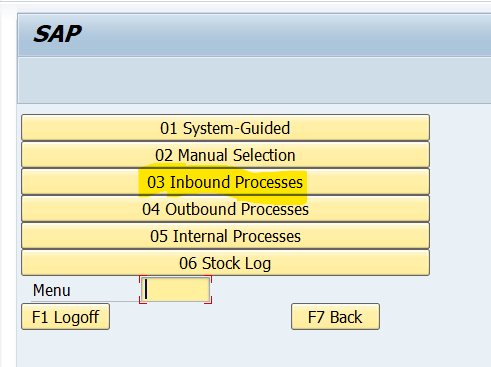

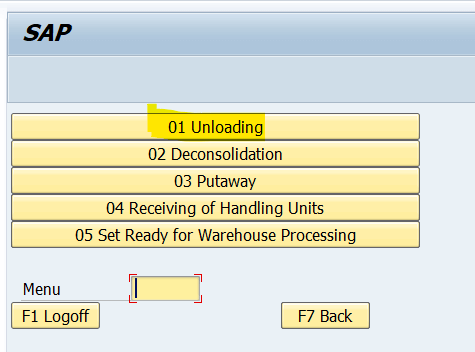

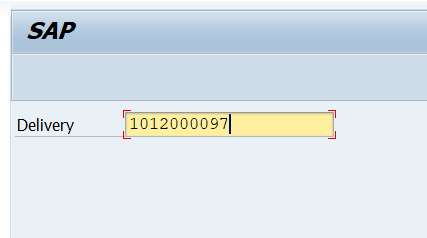

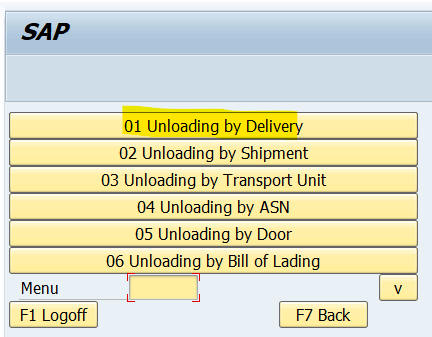

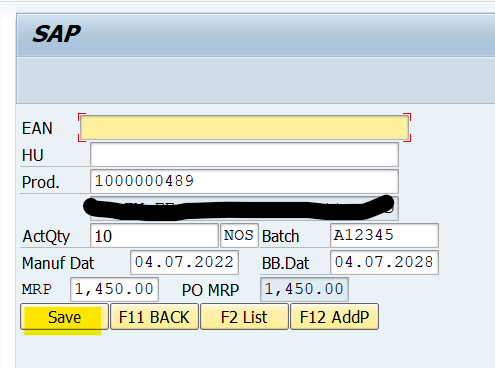

Unloading and GR in /N/SCWM/RFUI

Hit Enter

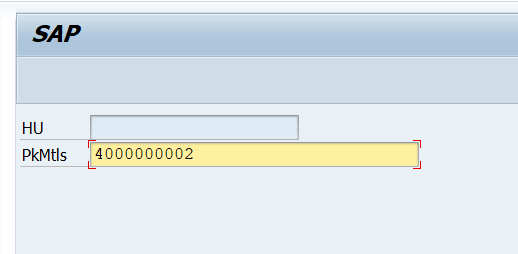

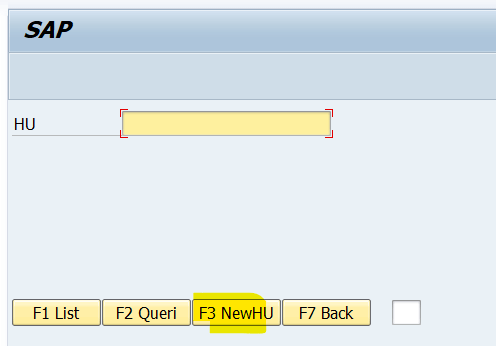

click on F3-New HU

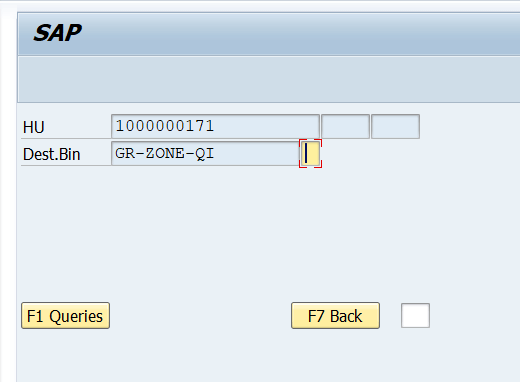

Scan the destination bin and hit Enter

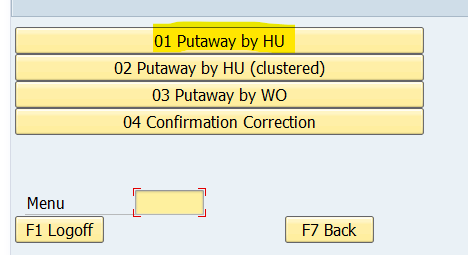

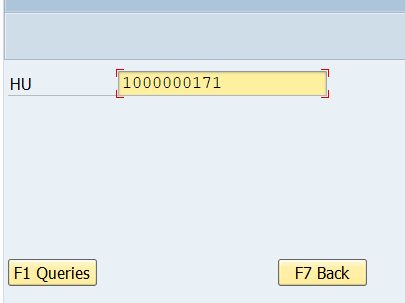

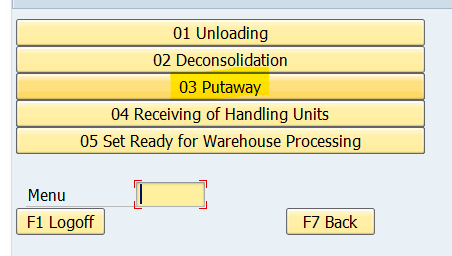

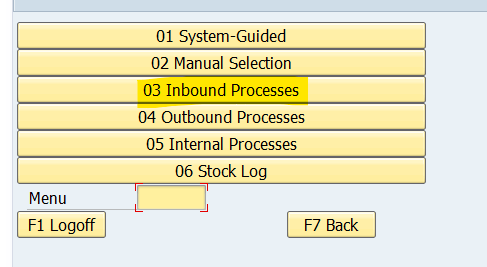

Put away by HU in /N/SCWM/RFUI

Hit Enter

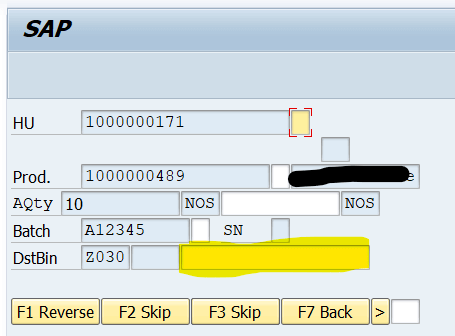

You can see in the above picture; the destination storage bin is blank. User Enter storage bin where he wants to Put away.

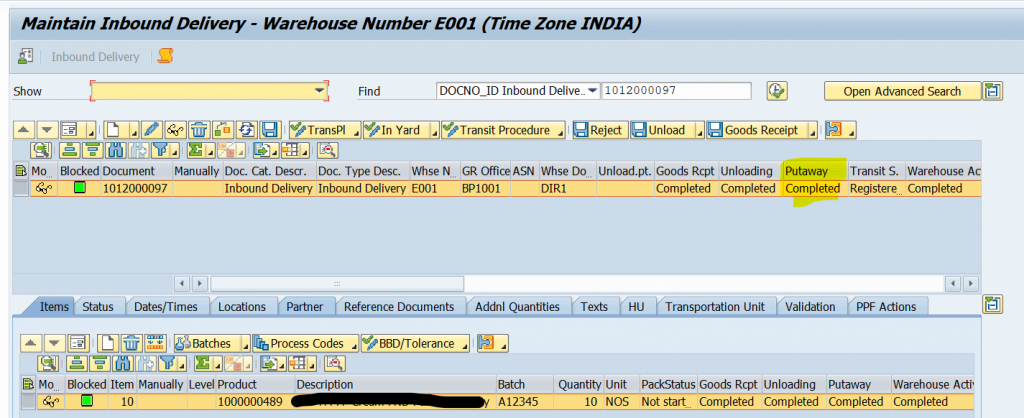

Put away is done.
