Configure the SAP BTP Cloud Foundry Environment Subaccount with SAP Forms Service by Adobe and Test with Postman

Purpose

This section shows how to configure the SAP BTP, Cloud Foundry environment subaccount, and the SAP Forms service by Adobe. This service API will be tested with with postman

Prerequisites

You have a subaccount on SAP BTP, Cloud Foundry environment and the subaccount has entitlement of service Forms service by Adobe.

Procedure

Note : Please use Microsoft Edge Browser to do the configuration.

1. Create instance for ADS subscription

Enter BTP sub-account and create instance for Form Service by Adobe

2. Enter BTP sub-account and create instance for Forms Service by Adobe API

3. Create key for Forms Service by Adobe API instance.

The ads rest api document URL: URI + /swagger-ui.html

https://adsrestapi-formsprocessing.cfapps.eu10.hana.ondemand.com/swagger-ui.html

4. Assing user Role Collections

5. Upload template file into Forms Service by Adobe

a. Copy address of Forms Service by Adobe

b. The form template store URL is : a. url + /adsrestapi/ui.html

https://apjcoe-x66183k9-ads.formsprocessing.cfapps.eu10.hana.ondemand.com/adsrestapi/ui.html

c. create form in ADS

d. download xdp temlate file from github in the following linkage :

https://github.com/SAP-samples/s4hana-ext-cloud-label-printing/blob/main/PrintLabel.xdp

e. Upload the downloaded XDP template file into ADS

Now the xdp template has been created in ADS

6. Test BTP form service by abobe rest api to render adobe form

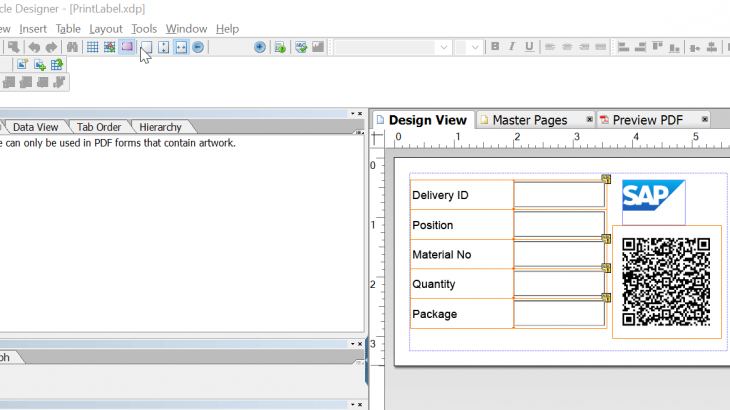

a. use adobe live designer to open the xdp file from the following linkage:

https://github.com/SAP-samples/s4hana-ext-cloud-label-printing/blob/main/PrintLabel.xdp

b. build printing content data for render rest api call

use notepad open the preview data

paste the body in the following website to encode it to BASE64

Base64 Encode and Decode – Online

c. build body for rest API call according to swagger ui in 2 :

d. test in postman

Method : Post

URL: From 3 URI + Swagger render api path

Authorization Type : OAuth 2.0

Authorization token url, client key client secret are from 3 instance key.

parameters :

templateSource: storageName

TraceLevel, 2

body is from c

response:
