Configuration of Quantity Classification in SAP EWM


The business is receiving the products in the warehouse and while you putaway you want to pack the material into pallets and cartons and send it to different storage types.

So how can we achieve the above requirement?

We can achieve the above requirement through packaging specification and quantity classification as shown below

1. Define Storage type for pallets& cartoons

2. Define Storage section and Storage bin type

3. Define Putaway Strategies

4. Define Packaging Specification

5. Define Warehouse process type & Control Indicator

6. Define Warehouse order creation rule for putaway

7. Testing

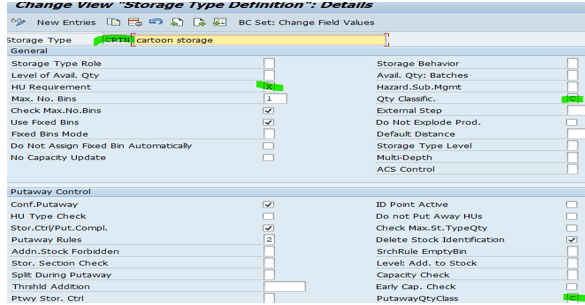

Created a Carton storage type:

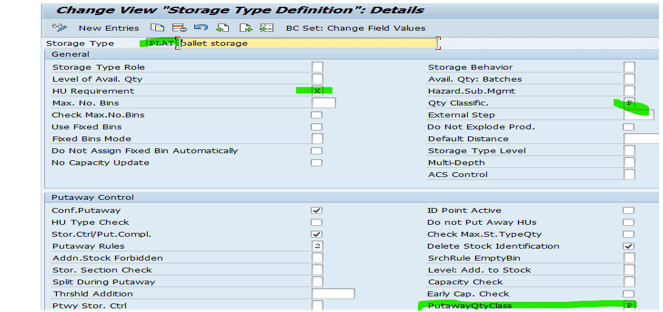

Pallet Storage type

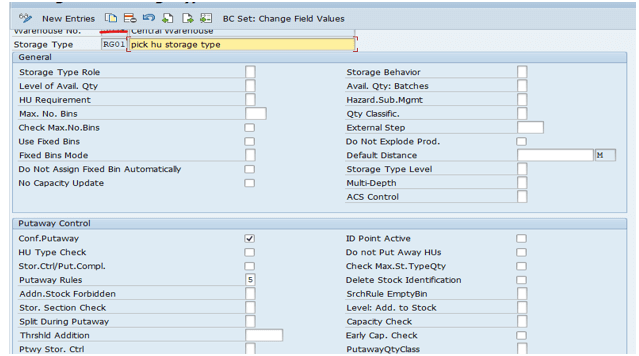

Define storage type for pick hu

Created a storage bin for Pick hu Storage type in /N/SCWM/LS01

Assign storage bin in /N/SCWM/SEBA

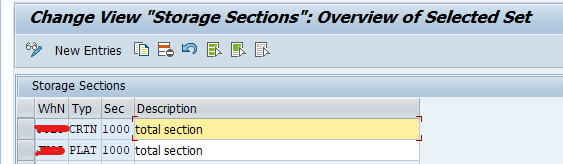

Created a storage section for both Carton & pallet storage type

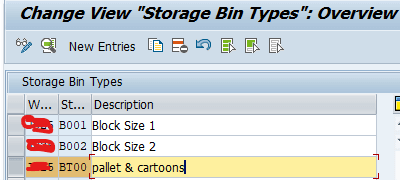

Created a bin type

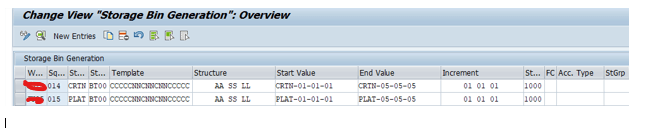

Created a bin structure for both carton & pallet storage type

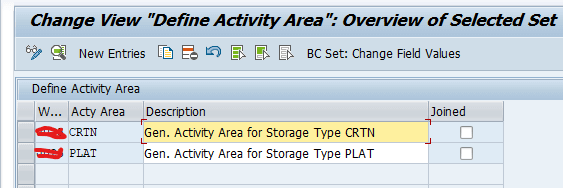

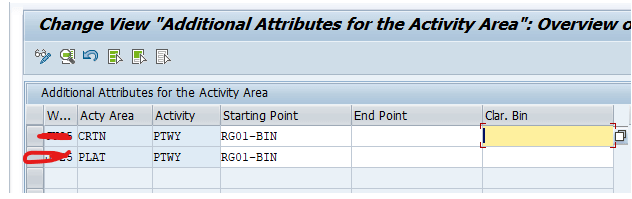

Created Activity Areas for both Pallet & Carton

Putaway Strategies

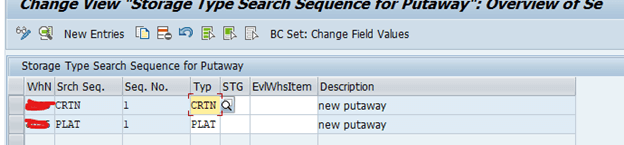

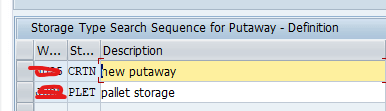

Define Storage Type Search Sequence for Putaway

Assign Storage type to storage search sequence

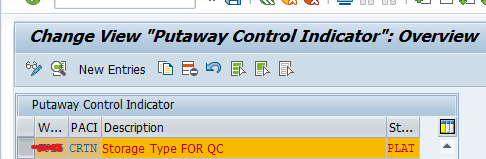

Define Putaway control indicator

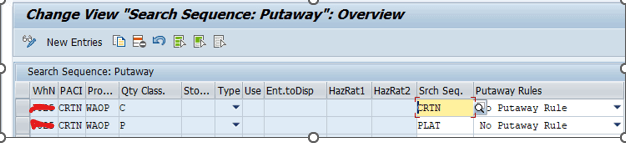

Specify Storage Type Search Sequence for Putaway

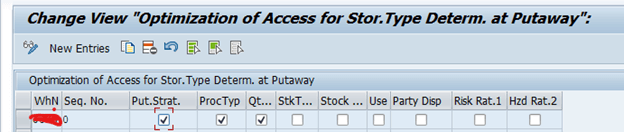

optimize Storage Type Search Sequence for Putaway

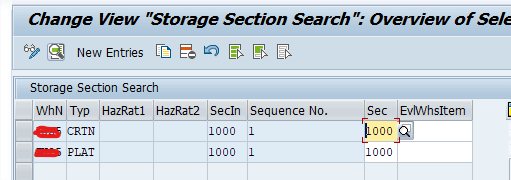

Maintain Storage Section Search Sequence

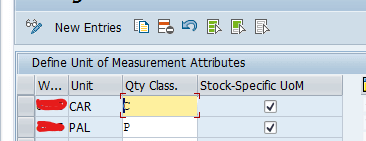

Define Unit of Measure Attributes

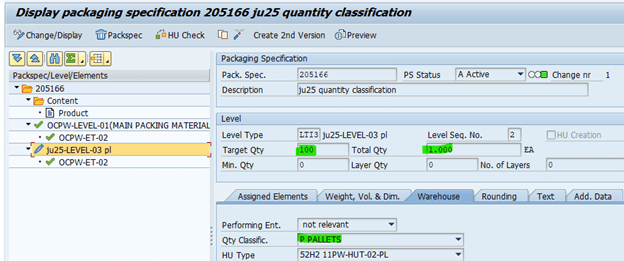

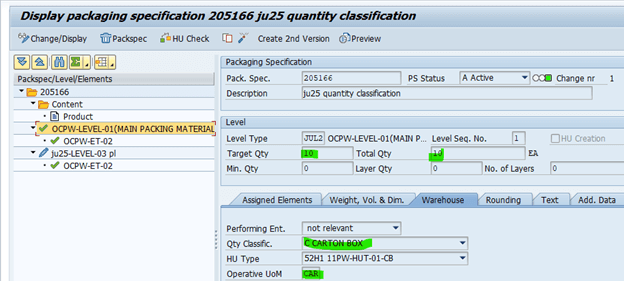

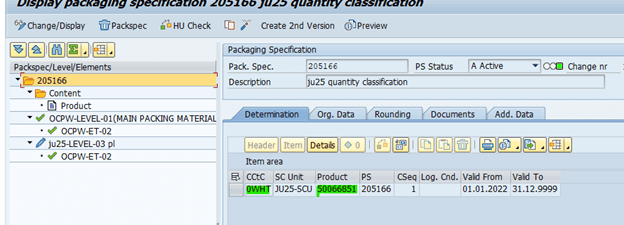

Define packspec for product with Condition type:OWHT

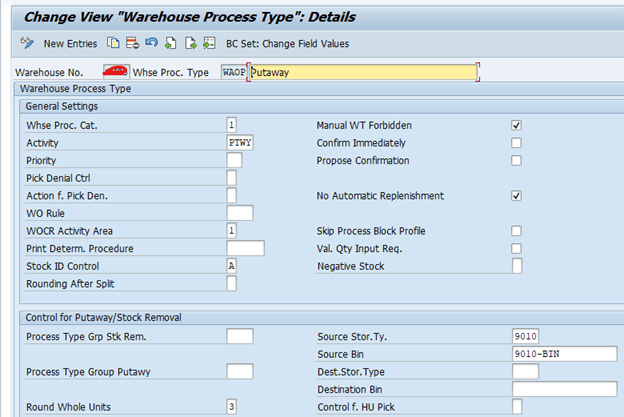

Define Warehouse process type

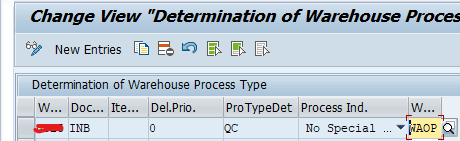

Determine Warehouse Process Type

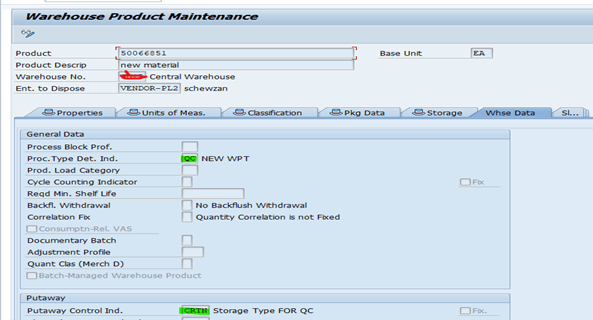

Assign warehouse process type control indicator & putaway control indicator for product master

Define Warehouse order creatin rule

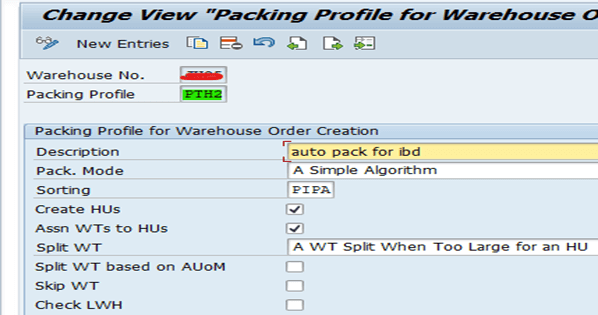

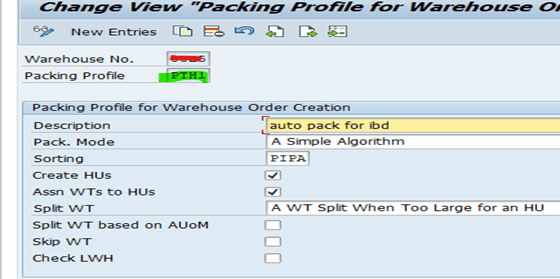

Define Packing Profile for Warehouse Order Creation

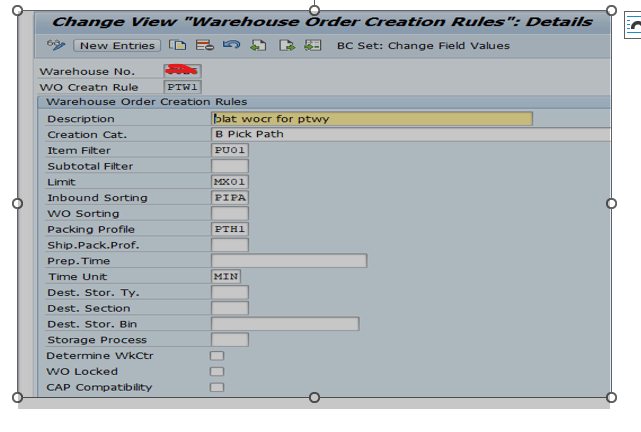

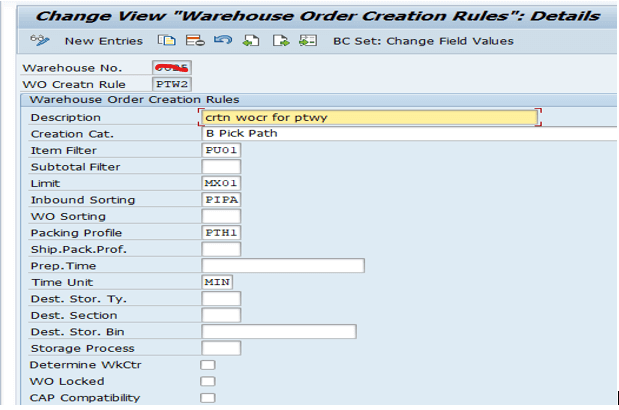

Define warehouse order creationrule

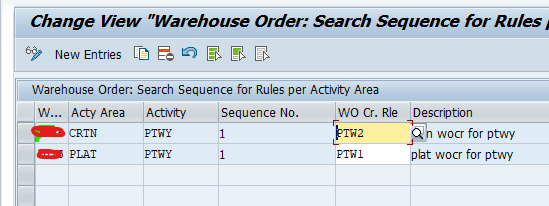

Define WOCR for Activity Areas

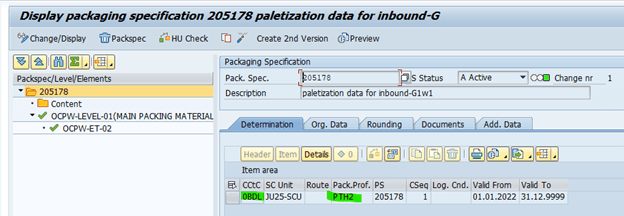

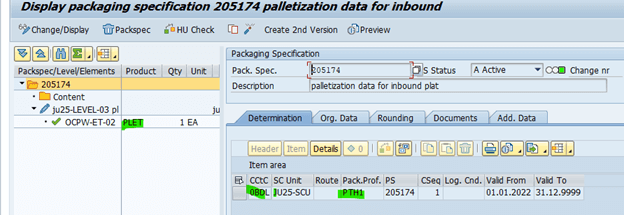

Define packspec for pick hu



Testing :

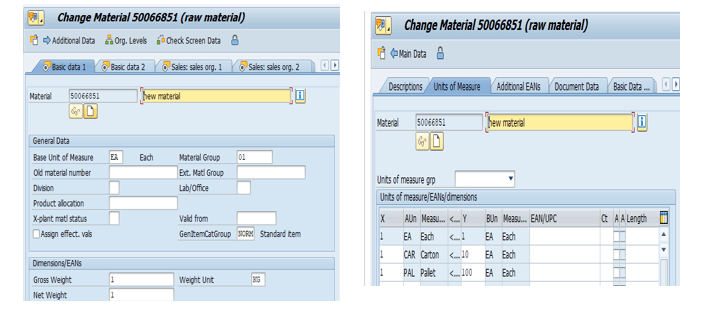

Created a Material:50066851

Created a PurchaseOrder with Material 1100EA

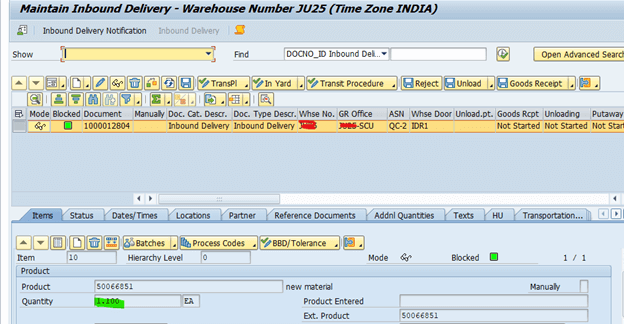

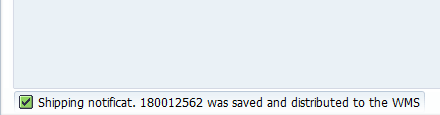

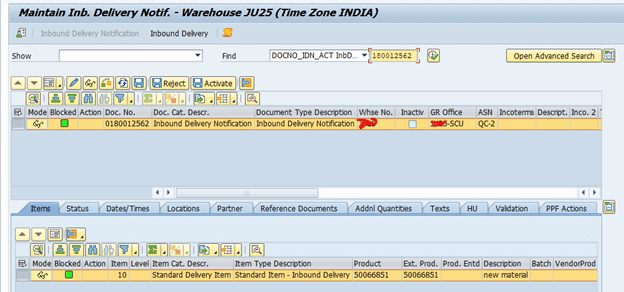

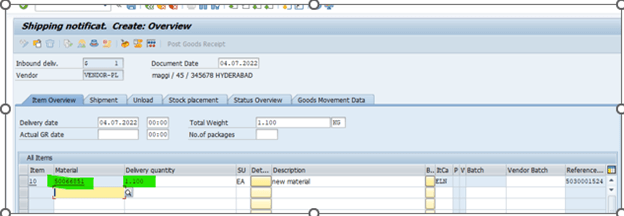

Do the inbound Delivery -VL31N

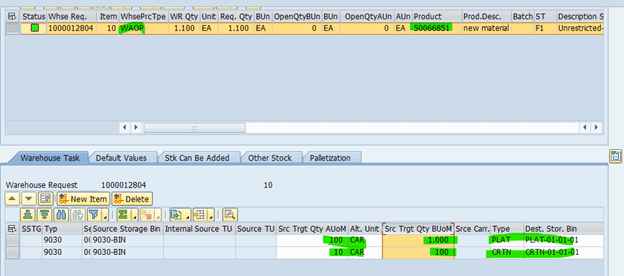

Create a warehouse task –

As per packspec the quantiy is changed into pallets and cartons

Confirm the warehouse task

As per the wocr I have applied for my inbound delivery its going on

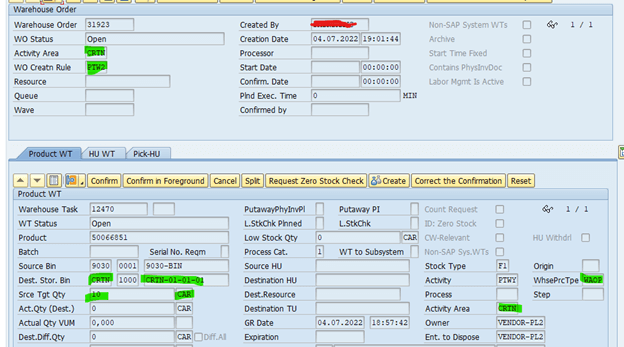

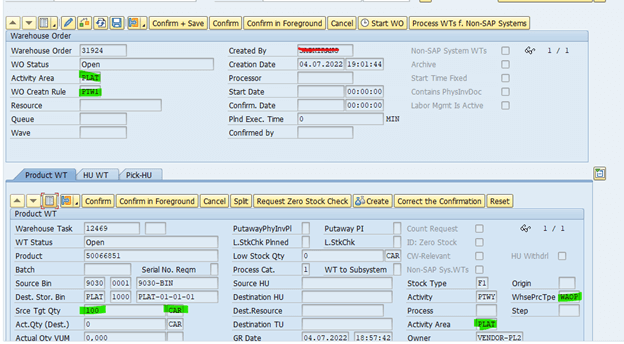

First warehouse order

Second warehouse order

Confirm the warehouse orders

Go to monitor check the stock
