Introduction

In this blog post, we will learn how to mask “New Value” and “Old Value” fields based on “Object Class” and “Field Name” field information of table CDPOS in SE16.

“New Value” and “Old Value” fields of table CDPOS in SE16 transaction need to be masked where “Object Class” is “MATERIAL” and “Field Name” is “NTGEW” or “BRGEW“. For other “Object Class” and “Field Name”, “New Value” and “Old Value” fields will appear as unmasked.

SAP ABAP 7.5 Certification Preparation Guide

Attribute based authorizations are dynamic determination mechanism which determines whether a user is authorized to access specific data sets which can be based on the context attributes of the user and data (for example, price of certain sensitive materials are masked).

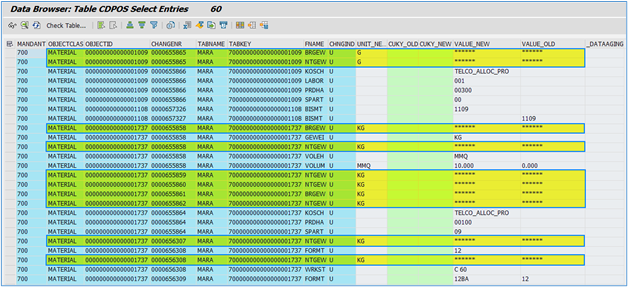

The end result for unauthorized users will look like below:

Prerequisite

UI data protection masking for SAP S/4HANA is a solution for selective masking of sensitive data on SAP S/4HANA user interfaces – SAP GUI, SAPUI5/SAP Fiori, Web Dynpro for ABAP, and Web Client UI. Data can be protected at field level, either by masking the content (replacing original characters with generic characters, such as asterisks) or by clearing or disabling the field.

The solution uses both role-based and attribute-based authorizations, affording customers a high degree of control.

Requirement

Here, we want to configure masking using Attribute Based Access Control (ABAC) concept for “New Value” and “Old Value” fields in CDPOS table in SE16 transaction based on “Object Class” and “Field Name” fields information. Product “UI data protection masking for SAP S/4HANA 2011” is used in this scenario to protect sensitive data at field level and must be installed in the S/4HANA system.

Let’s begin

Configure Logical Attributes

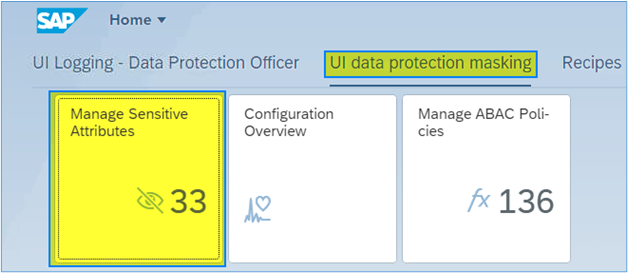

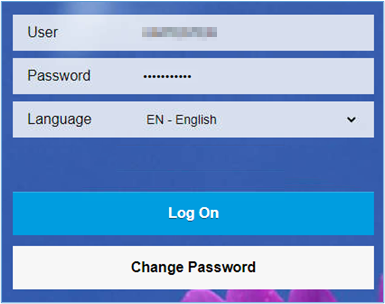

Login to Fiori Launchpad and click on “Manage Sensitive Attributes” app available under “UI data protection masking” catalog.

Maintain Sensitive Attributes

A Sensitive Attribute is a type of logical attribute that define a field which needs to be configured for UI data protection.

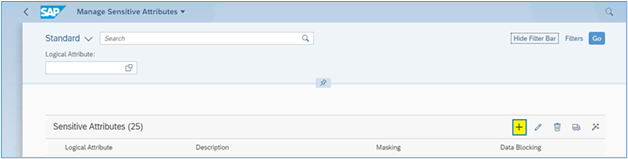

Click on Add icon

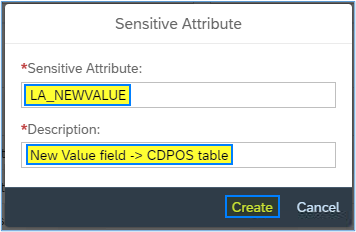

Enter “LA_NEWVALUE” in Sensitive Attribute field
Enter “New Value field -> CDPOS table” in Description field
Click on “Create” button

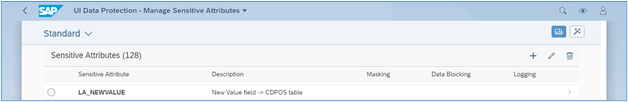

Sensitive Attributes with specified details will be created.

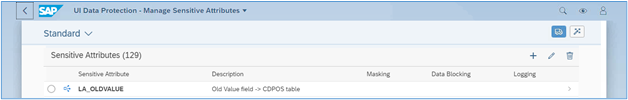

Note: Using the above steps, create “LA_OLDVALUE” Sensitive Attribute.

Maintain Mapping to Technical Addresses

In the Manage Sensitive Attributes application, you can link technical addresses of fields to sensitive attributes. A technical address describes the exact technical path or technical information which is used by the solution to process the field for UI data protection masking.

To find the technical addresses for SAP GUI screens, navigate to the field and choose F1, then the Technical Information icon. The system displays the relevant information.

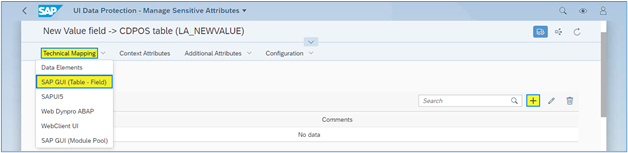

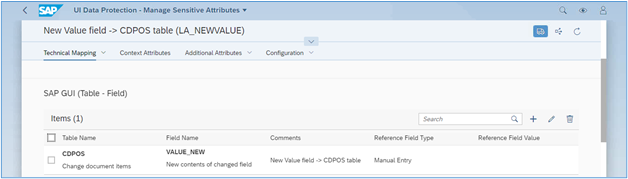

Under Technical Mapping > SAP GUI, choose the Add icon.

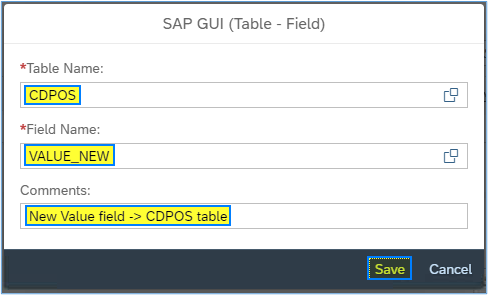

Use the the value help to select the table name and the field name. You can also enter the referenced transaction codes as a comment to describe the mapping.

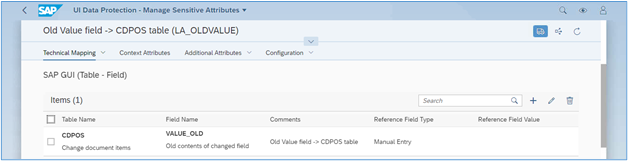

Note: Using the above steps, maintain Technical Address for “LA_OLDVALUE” Sensitive Attribute.

Maintain Context Attributes

In the Manage Sensitive Attributes application, you can create and update context attributes, and map them to sensitive attributes.

A context attribute is a type of logical attribute which is used to define the context within which a sensitive attribute is to be protected.

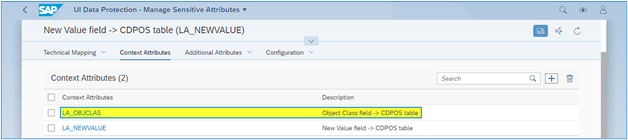

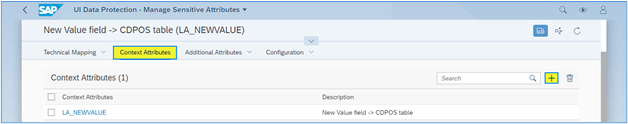

To assign a context attribute to a sensitive attribute, under Context Attributes, choose the Add icon.

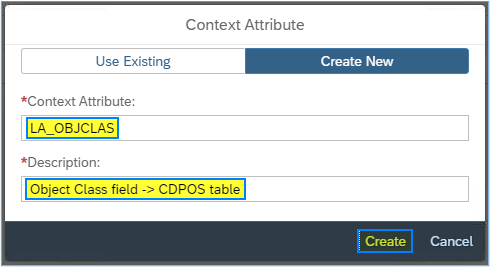

To create a new context attribute, select Create New, enter the name of the context attribute beginning with LA_ and a description.

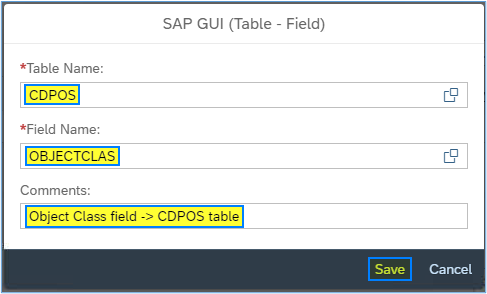

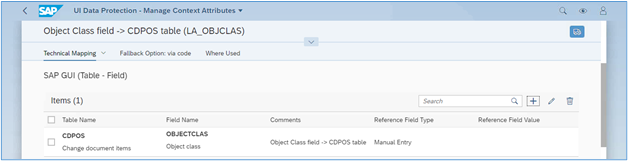

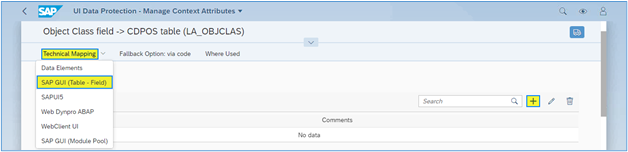

Open a context attribute by tapping the arrow next to it and under Technical Mapping, you can map technical addresses to the context attribute in the same way we did for sensitive attribute

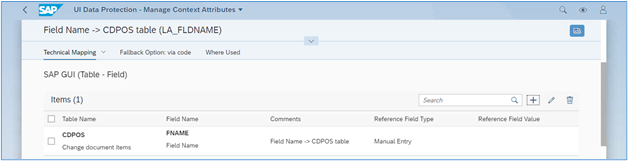

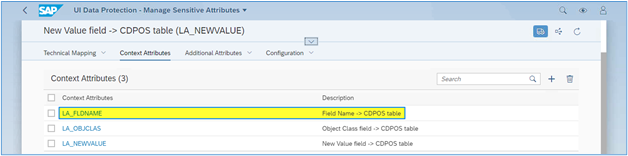

Note: Using the above steps, create “LA_FLDNAME” Context Attribute and maintain Technical Address for “LA_FLDNAME” Context Attribute.

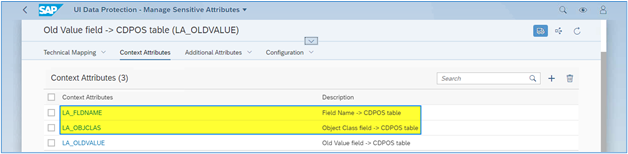

Note: Map both (LA_OBJCLAS and LA_FLDNAME) Context Attributes with LA_OLDVALUE Sensitive Attribute using “Use Existing” option.

Masking Configuration

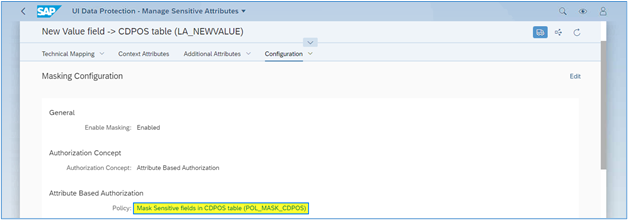

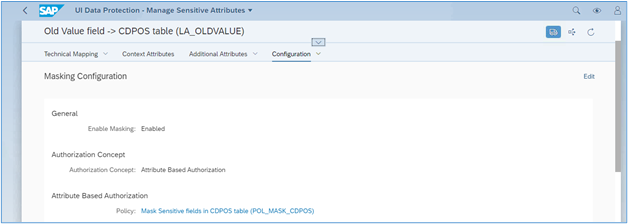

In the Manage Sensitive Attributes application, you can configure masking for a sensitive attribute to define in detail how it is to be protected in the system. Masking configuration defines which fields are to be masked for unauthorized users and in which contexts.

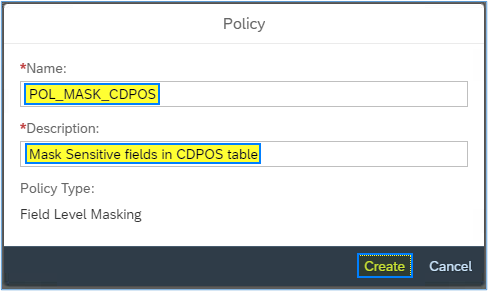

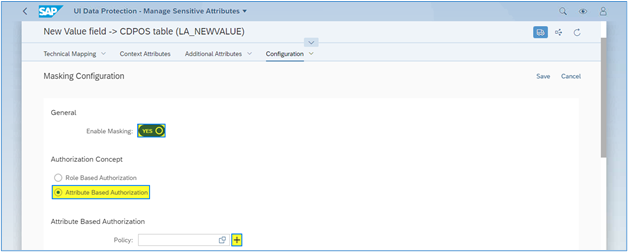

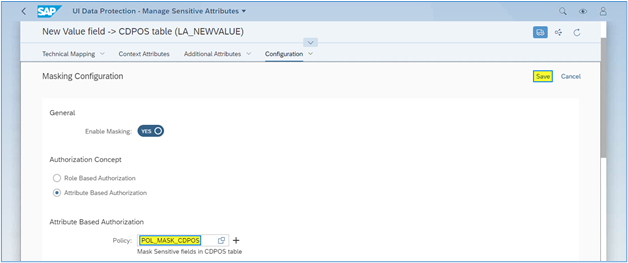

To configure masking for LA_NEWVALUE sensitive attribute, under Configuration > Masking Configuration, choose Edit.
