This is Part Two of a blog series on Ariba Analytics using SAP Analytics Cloud, Data Intelligence Cloud and HANA DocStore. If you would like to start with Part One, please click here
Recap

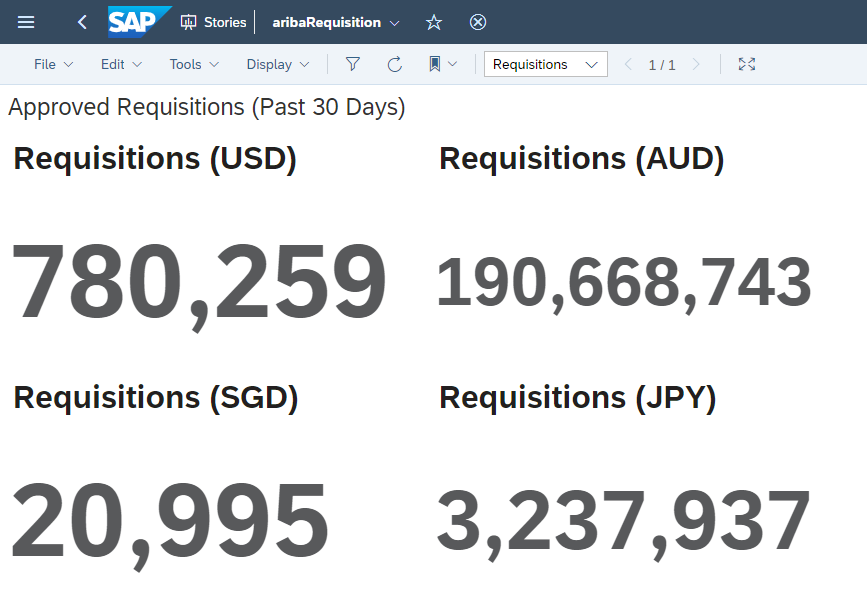

SAP Analytics Cloud makes it easy for businesses to understand their data through its stories, dashboards and analytical applications. Our worked example is using SAP Ariba Data to create an SAC Story that lets you know how much spend has been approved within Ariba Requisitions created in the last thirty days
In Part One of our blog series we discussed how we can retrieve data from SAP Ariba’s APIs using SAP Data Intelligence Cloud. We stored this data as JSON Documents in the SAP HANA Document Store

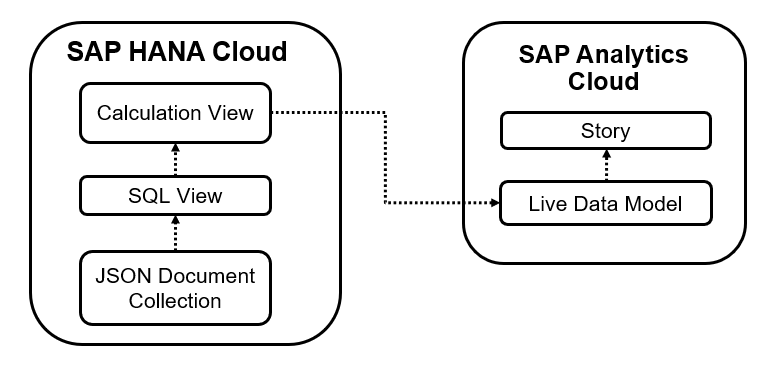

In this blog post, we’re going to build SQL and Calculation Views on top of our JSON Document Collection
Design-Time Artifacts in Business Application Studio

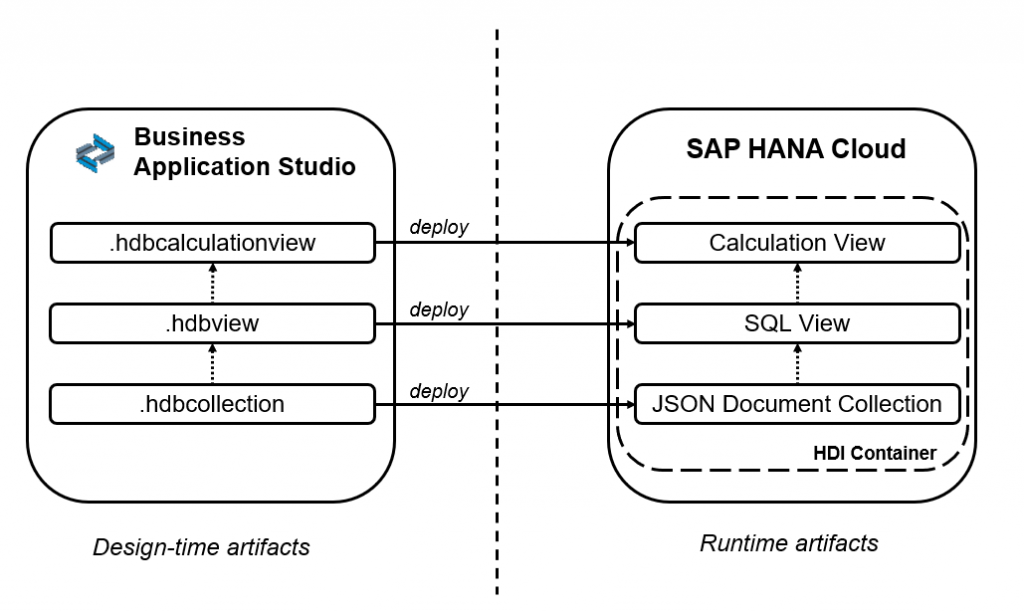

As we discussed in our last blog post, objects within HANA usually have both a design-time and runtime artifact. Design-time artifacts are useful because they fully describe the object and can be deployed consistently across multiple HDI Containers or even HANA instances
Our JSON Document Collection has already been created, and is already storing our Ariba JSON Documents. From here, it’s time to model our other artifacts
Creating our SQL View
JSON Documents are useful in a variety of situations where you don’t have strict, predefined schemas. When we retrieve our data from the Ariba APIs, we may retrieve data that doesn’t map cleanly to a table schema (for example, data that is nested). Putting this data in the HANA DocStore Collection allows us to store the complete document, ensuring nothing is lost
In order for us to use this data for analytics, we’ll need to map it to some sort of schema. We can create a logical schema on top of our Collection using a SQL View. This allows us to access a predefined subset of our data for analytics while leaving the full data untouched in our Collection

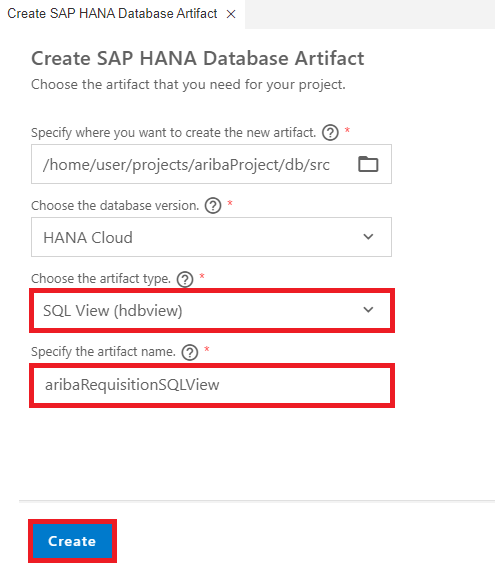

We’ll create the SQL View in Business Application Studio
SQL Views use the following format:
VIEW "aribaRequisitionSQLView"
AS SELECT "UniqueName", "Name", [...]
FROM "aribaRequisition"If you’re familiar with SQL, you may recognise this as the same syntax that you would use to create a standard SQL View, just missing the word “CREATE”
The SQL View doesn’t duplicate any data, just provides a schema that we can use to access the underlying data
Our data in JSON Documents are Key-Value pairs
"Status":"Complete"
To retrieve the value “Complete”, we would SELECT “Status”
JSON Documents may also have nested data
"Content":{"ItemId":"3728754507"}
To retrieve the value “3728754507”, we would SELECT “Content”.”ItemId”, with the full stop marking nested keys
Our example will use the following SQL View:
VIEW "aribaRequisitionSQLView"
AS SELECT "UniqueName", "Name",
"TotalCost"."AmountInReportingCurrency" AS "AmountInReportingCurrency",
"ReportingCurrency"."UniqueName" AS "ReportingCurrency",
"ApprovedState", "Preparer"."UniqueName" AS "Preparer",
"Requester"."UniqueName" AS "Requester", "StatusString",
"CreateDate", "SubmitDate", "ApprovedDate", "LastModified",
"ProcurementUnit"."UniqueName" AS "ProcurementUnit"
FROM "aribaRequisition"The fields we’re using are only a fraction of the fields available in the Documents within our Collection – if we want to customize the scenario later, there are plenty more to choose from
We want to make sure this SQL View is deployed and ready for use, so click on the Deploy rocket
Creating our Calculation View
While we’re in Business Application Studio, we’re going to create our Calculation View. This Calculation View is what we’ll be consuming in SAP Analytics Cloud

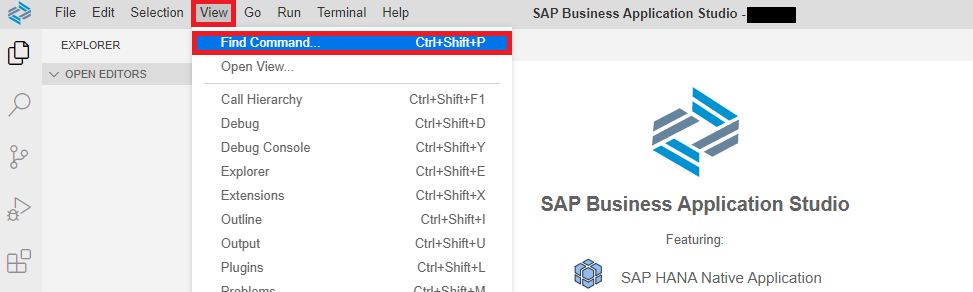

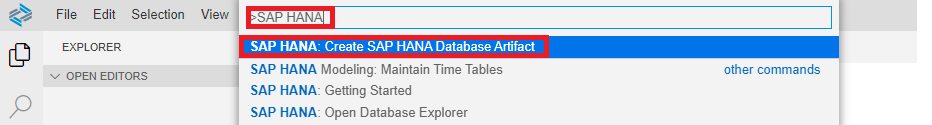

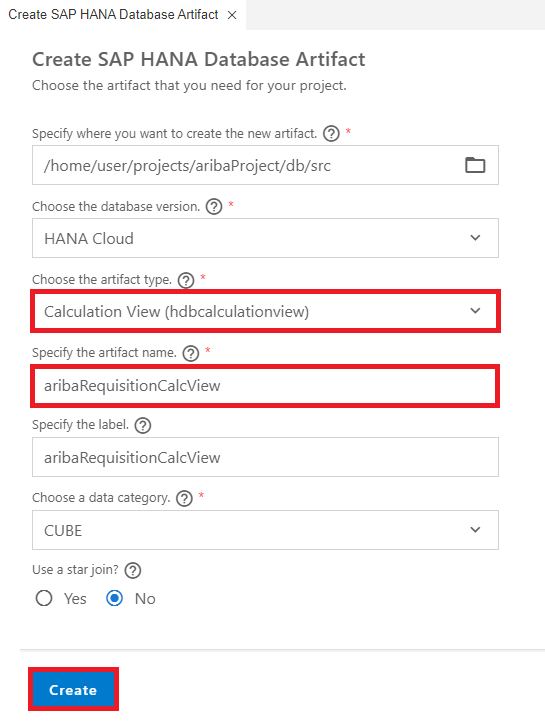

As before, we’re using View->Find Command then Create SAP HANA Database Artifact

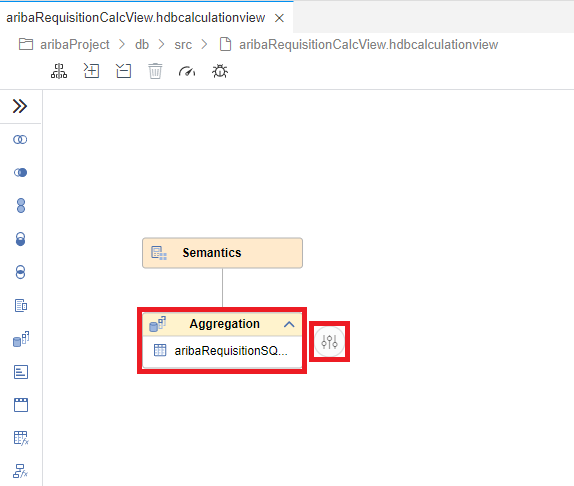

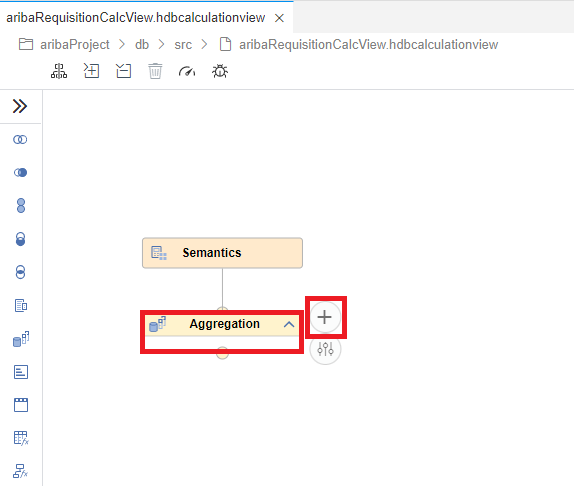

Business Application Studio has an inbuilt editor for Calculation Views, which we’ll use to create ours

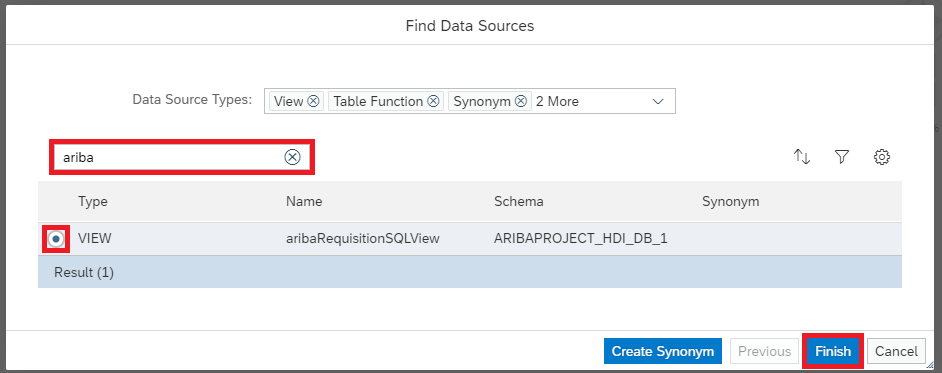

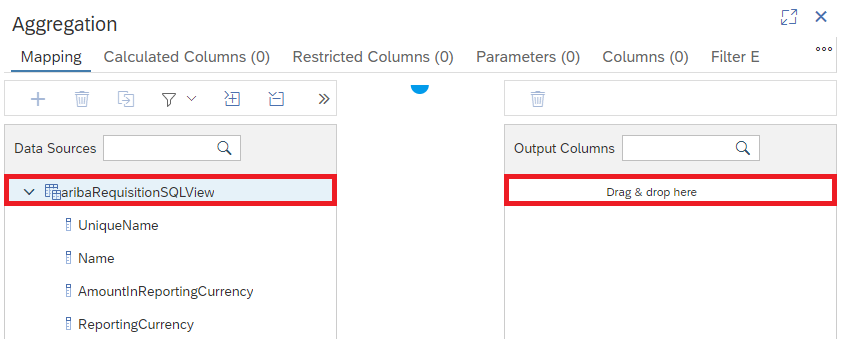

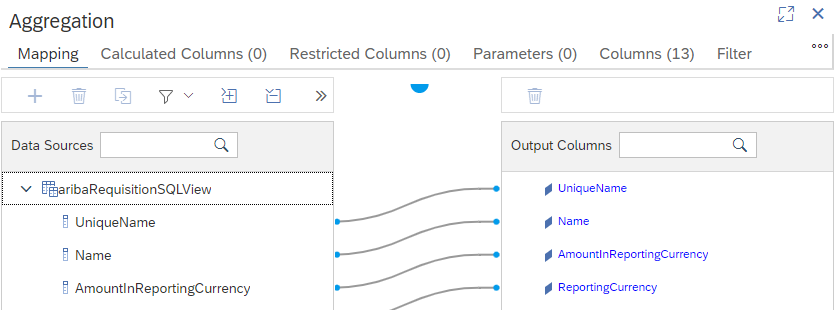

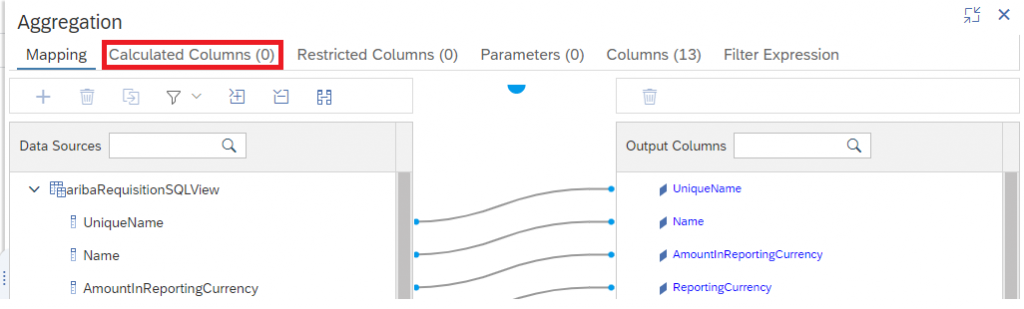

Now that our SQL View is available as a Data Source, we want to make sure its columns end up in our Calculation View

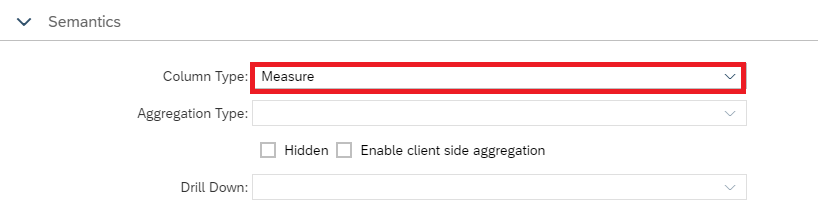

Because this is a Calculation View of type Cube (rather than Dimension), we’ll need to make sure it includes at least one Measure
The columns in our SQL View all have the default data type NVARCHAR(5000). If we try to mark this column as a Measure directly, it will treat it as a string – giving us the Aggregation options COUNT, MIN and MAX
We want to treat this column as the number it is – as a workaround, we’ll need to create a Calculated Column

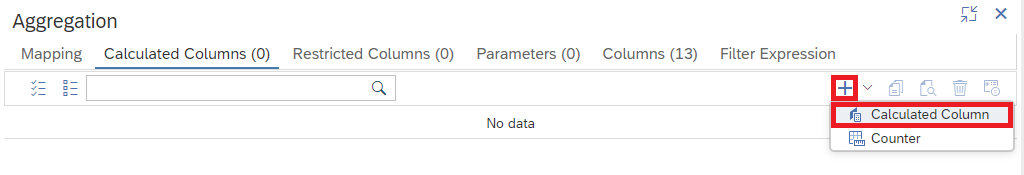

Creating our Calculated Column
A Calculated Column is an output column that we create within the Calculation View itself. Rather than being persisted, the values are calculated at runtime based on the result of an expression

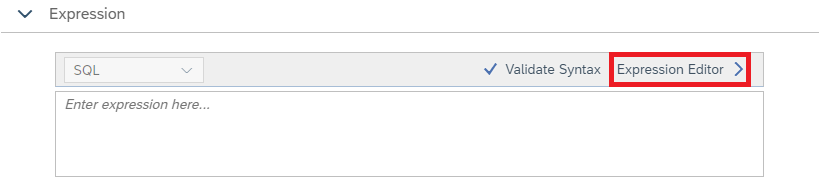

For our example, we’re using a very simple expression. First, we have to make our way to the Expression Editor

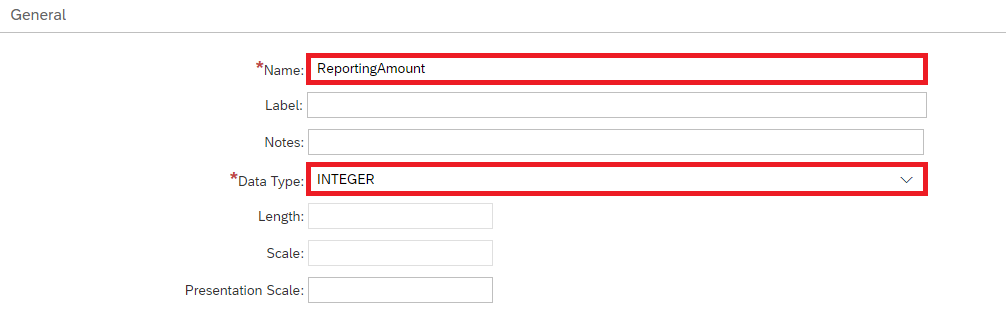

Next we’re going to give our Calculated Column a name and data type. Because the granularity of our example is the Requisition-level and not the item-level, the decimal points won’t meaningfully change the results. Given that, we’re going to use the Integer data type

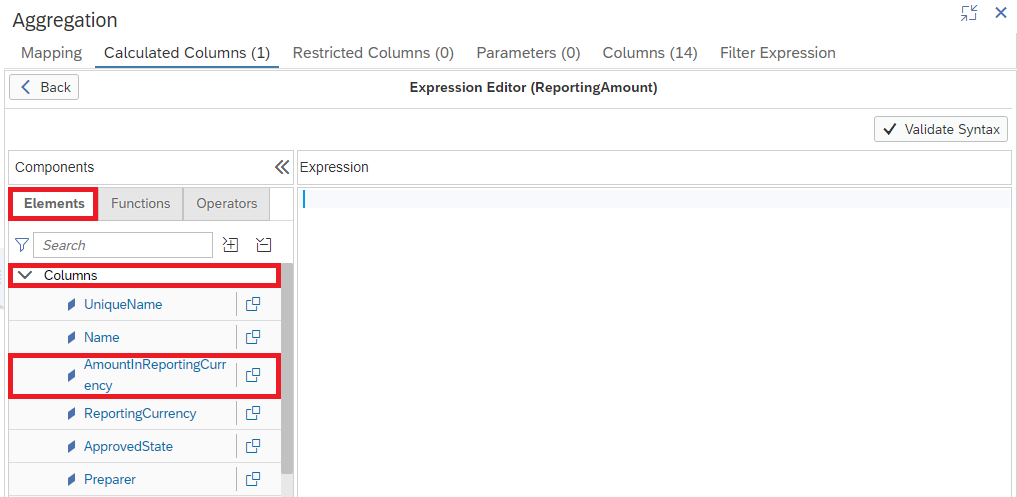

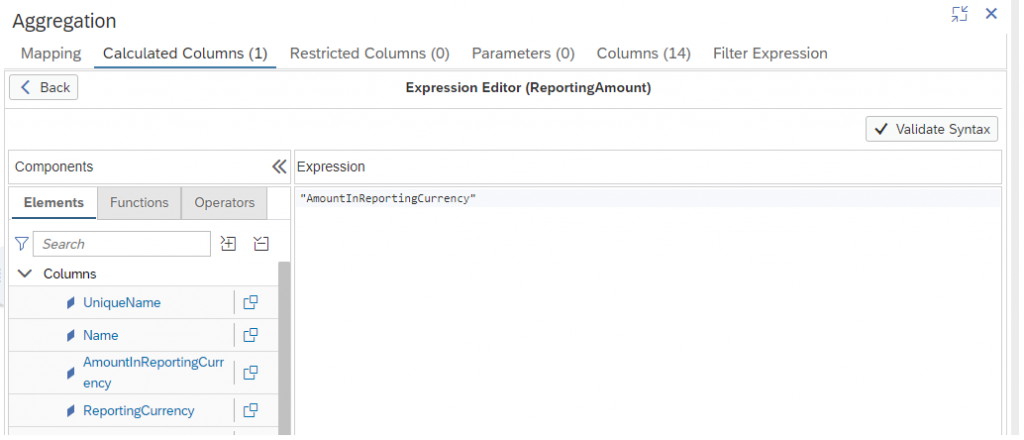

The Expression Editor is where we’ll define how the column is calculated. Select our AmountInReportingCurrency Column
Our Created Column will take the value of AmountInReportingCurrency and convert it to an Integer

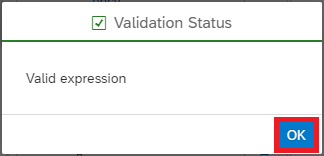

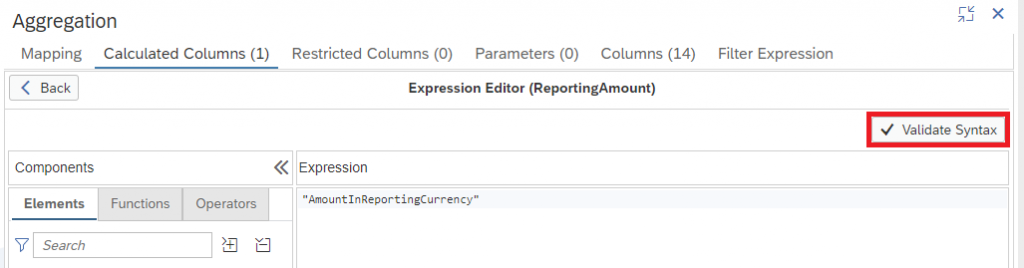

Now we want to validate the syntax of our Expression

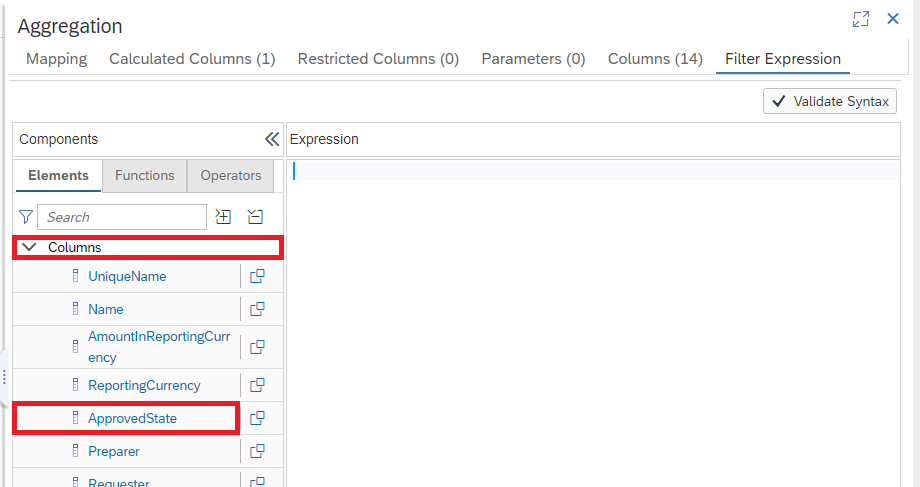

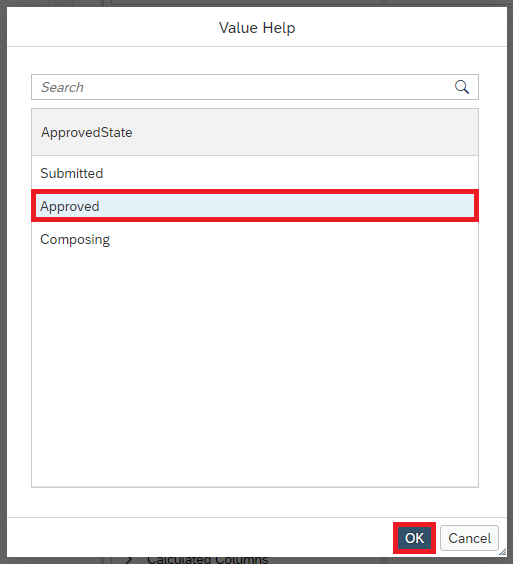

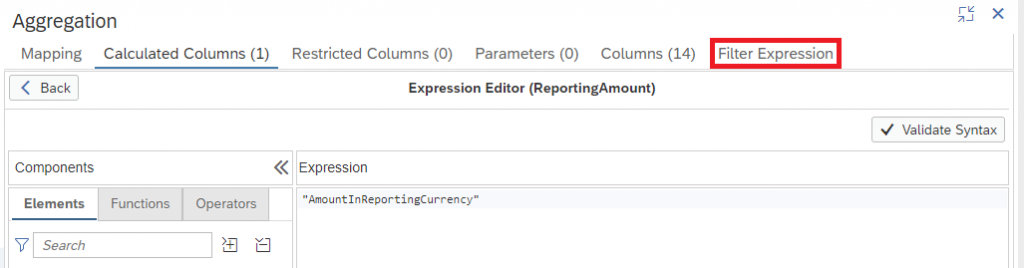

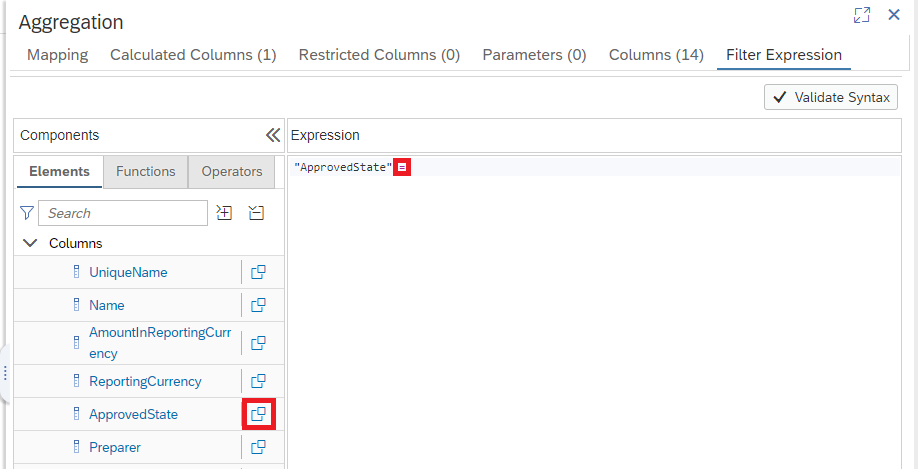

We have one last thing to do inside our Calculation View – we want to filter the data to only include Approved Requisitions. If we want to use the Value Help to set our Filter, we’ll need to Deploy the Calculation View

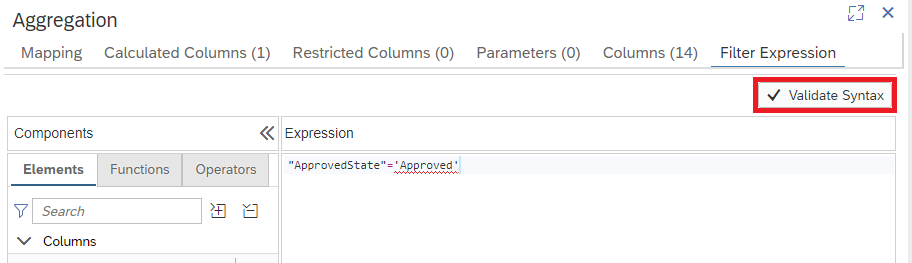

Now we can check the syntax of our Filter

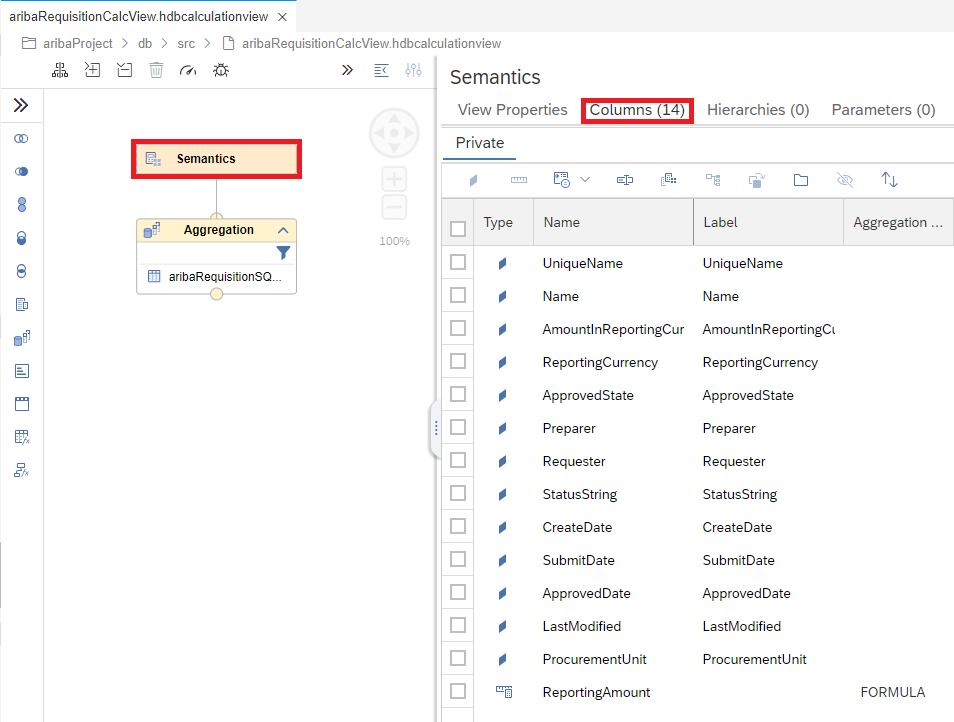

Before we Deploy our Calculation View, we want to make sure that we’re only sending our integer Calculated Column and not the string version. To do this, we go the Semantics Node
All of the Columns we need, including our new Calculated Column are available within the Calculation View. Now we’re ready to Deploy it one last time
Checking our Runtime Artifacts
Now that we’ve finished deploying our Design-time artifacts, we’ll have the corresponding Runtime artifacts inside of our HDI Container. We can check these by going to SAP HANA Database Explorer from within Business Application Studio

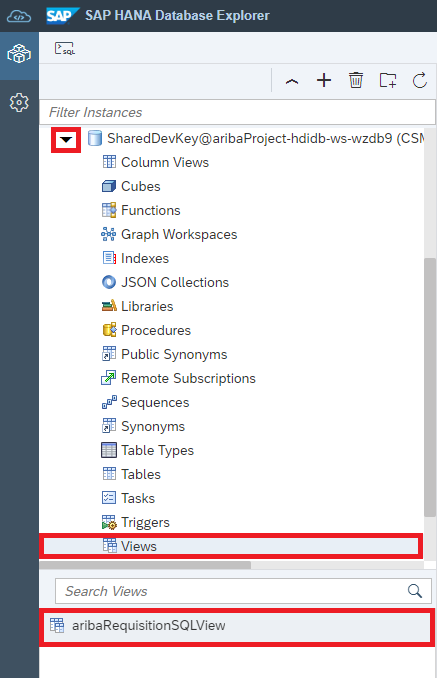

In the Database Explorer, we want to first check on our SQL View

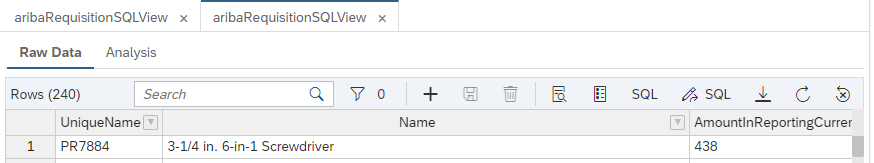

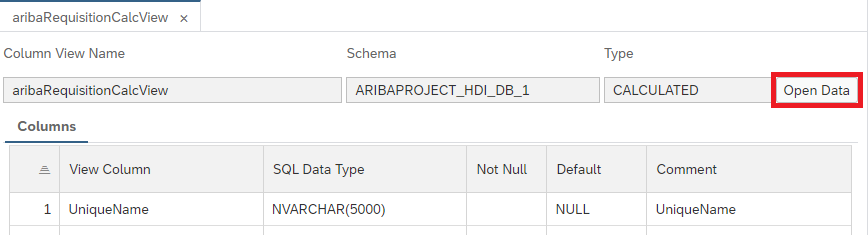

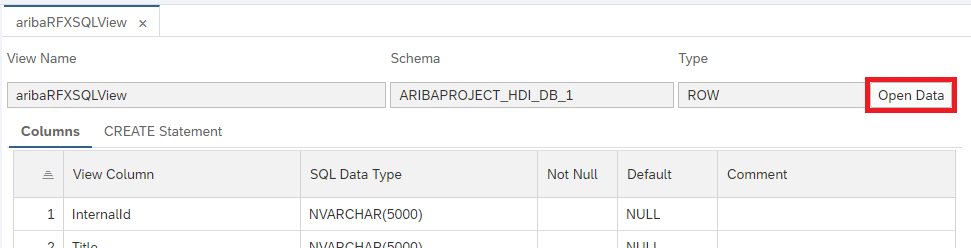

We can see all of the Columns in our created SQL View. If we want to check out some of the data returned by our SQL View, we can click on Open Data

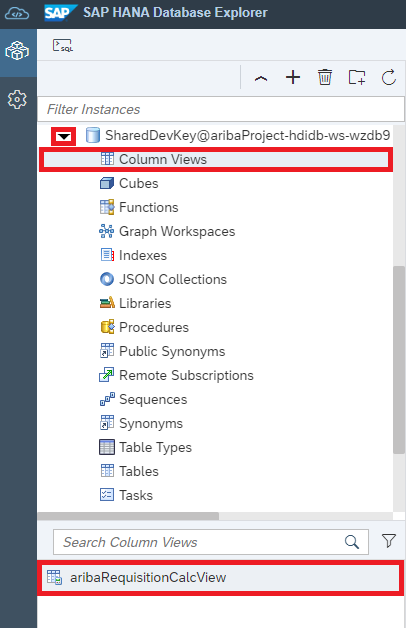

Next it’s time to check on our Calculation View

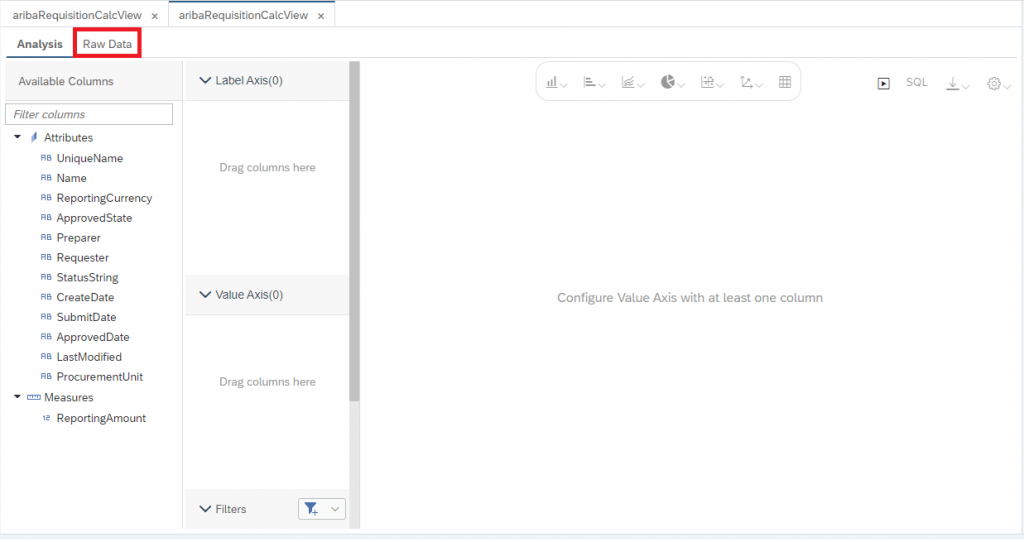

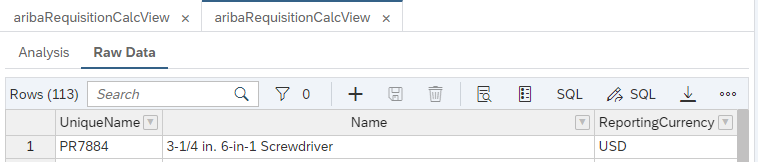

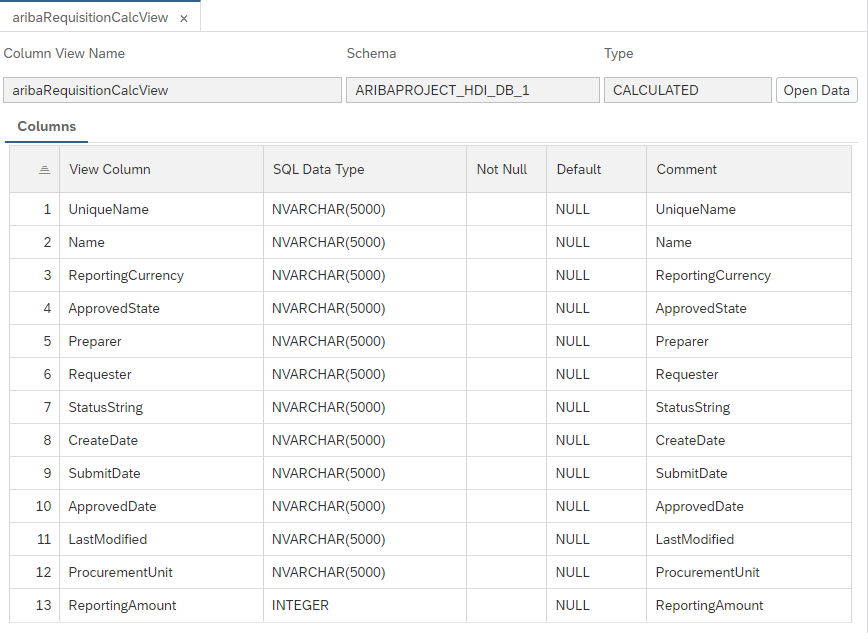

Database Explorer will open our Calculation View for Analysis. We’re going to do our analysis in SAP Analytics Cloud, so for now we just want to verify the Raw Data
Wrap-Up
During this blog post we’ve built a SQL View and Calculation View on top of our HANA DocStore Collection. We’ve also made sure that our Calculation View only contains Approved Requisitions
In the third and final blog post we’ll consume our Calculation View as a Live Data Model before visualizing it in an SAP Analytics Cloud Story. We’ll also schedule the Data Intelligence Pipeline we created in our first blog post so that the data in our HANA DocStore Collection is updated on a regular basis automatically
