ABAP in BW

What Every BW/BI Developer Needs to Know About ABAP in BW

Over time every BW developer needs to write ABAP in SAP NetWeaver BW to be able to meet user requirements. ABAP might be required in a start routine, end routine, expert routine, InfoPackage, Data Transfer Process, Analysis Process Designer, query, or field. Get basic knowledge on how to write ABAP code and the differences between each routine method.

Key Concept

Start routine is a routine in a transformation that is executed before transformation is executed.

End routine is a routine in a transformation that is executed after transformation is executed.

Expert routine is a routine in a transformation that is itself the transformation. In other words, it contains all three: start, end, and actual. [correct rewrite?]

SOURCE_PACKAGE is a structure that contains the inbound fields of the routine.

RESULT_PACKAGE is a structure that contains the outbound fields of the routine.

APD is a workbench with a graphical user interface (UI) for creating, executing, and monitoring analysis processes

SAP NetWeaver BW provides user exits throughout the system to take advantage of custom coding add-ons and to be able to meet user requirements. After reading this article, BW developers should be able to develop an idea of when to use ABAP code using different routine methods. I show the differences between the major methods for ABAP in the following:

  1. Start routine
  2. End routine
  3. Expert routine
  4. InfoPackage
  5. Data Transfer Process (DTP)
  6. Analysis Process Designer (APD)
  7. Query variable
  8. Transformation fields
  9. Start, end, and expert routines and the differences between them

Note

This article assumes:

  • You have basic knowledge of SAP NetWeaver BW.
  • You know how to create a DTP, transformations, InfoPackages, DataStore Objects (DSOs), InfoCubes, MultiProviders, and SAP ERP Central Component (ECC) database views.
  • You have ABAP knowledge, which is required to understand the coding parts.

ABAP in Start Routine

A start routine is used in the transformation when fetching information from other BW objects is necessary, or when you perform calculations or other data transformations and then store them in a global data structure or table before transformation is triggered. The start routine is run for each data package at the start of the transformation.

For example, consider a sales orders header and line items. Standard SAP objects have two transformations, one for the header and one for line items. When the two DTPs for these two transformations are executed, two different records are created in the InfoCube. A start routine is used to merge them into one record.

This is how it is done.

Step 1. Edit the transformation. If no start routine has been created, there is a Start Routine button to create a new one as shown in Figure 1.

If a start routine is already configured, a different Start Routine button is displayed to change the codes as shown in Figure 2.

Figure 2 Change a start routine

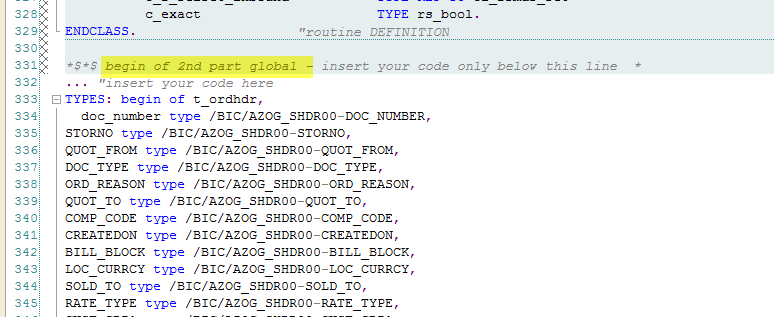

Step 2. Developers should declare TYPES and DATA in Figure 3 in the section labeled begin of 2nd part global.

Figure 3 Global section, which is visible throughout the transformation.

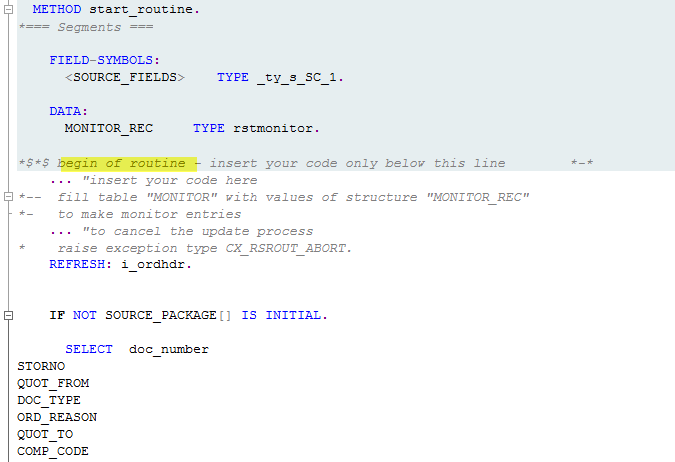

Step 3. Developers should place the body of the ABAP code under the beginning of the routine section (Figure 4).

Figure 4 Start routine

Note

Start routine works with SOURCE_PACKAGE, which is an SAP built-in variable to the start routine.

ABAP in End Routine

End routine is executed after transformation. In other words, end routine is used to execute the post-processing of data after transformation on a package-by-package basis. End routine is also used when you want to perform calculation on fields and assign fields from the start routine.

When an end routine is opened, the codes for TYPES and DATA that were entered in the global part are visible, as shown in Figure 5.

Figure 5 Global part

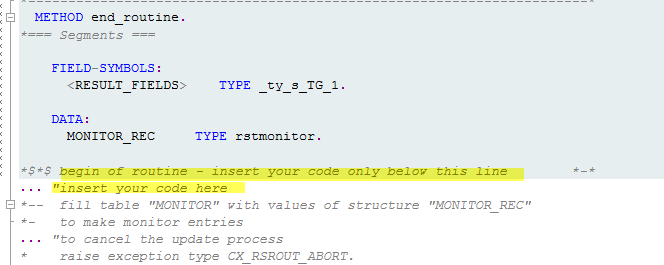

Figure 6 shows where you enter custom ABAP codes.

Figure 6 End routine section

To continue my example, I now populate fields from the internal table I populated in the start routine, as shown in Figure 7.

Figure 7 End routine

Note

End routine works with RESULT_PACKAGE, which is SAP’s built-in variable to an end routine. [end note]

Start and End Routine Summary

You can use a start routine without using an end routine and vice versa. It depends on the requirements. In a nutshell, a start routine without an end routine is used when you need to sort the records and delete duplicates or delete any rows with specific criteria.

An end routine without a start routine is used when you want to do some calculations on outgoing records before they saved to an InfoProvider. Both start and end routines are used when you need to read other objects from BW and merge them with data read from the source system.

ABAP in Expert Routine

Expert routine is a special case routine, which means you should use it in special situations where there is no SAP built-in rule type available.

  • Use this option to program the transformation without using available rule types.
  • Use this option when all fields in the transformation are to be affected.
  • Note to consider: If you already have created transformation rules, when you create an expert routine, the system deletes them.

An expert routine is activated when you are in transformation, in edit mode, by clicking the Edit button on the menu option. Figure 8 shows an expert routine.

Figure 8 Expert routine menu

Expert routine is used when there are not sufficient functions to perform a transformation.

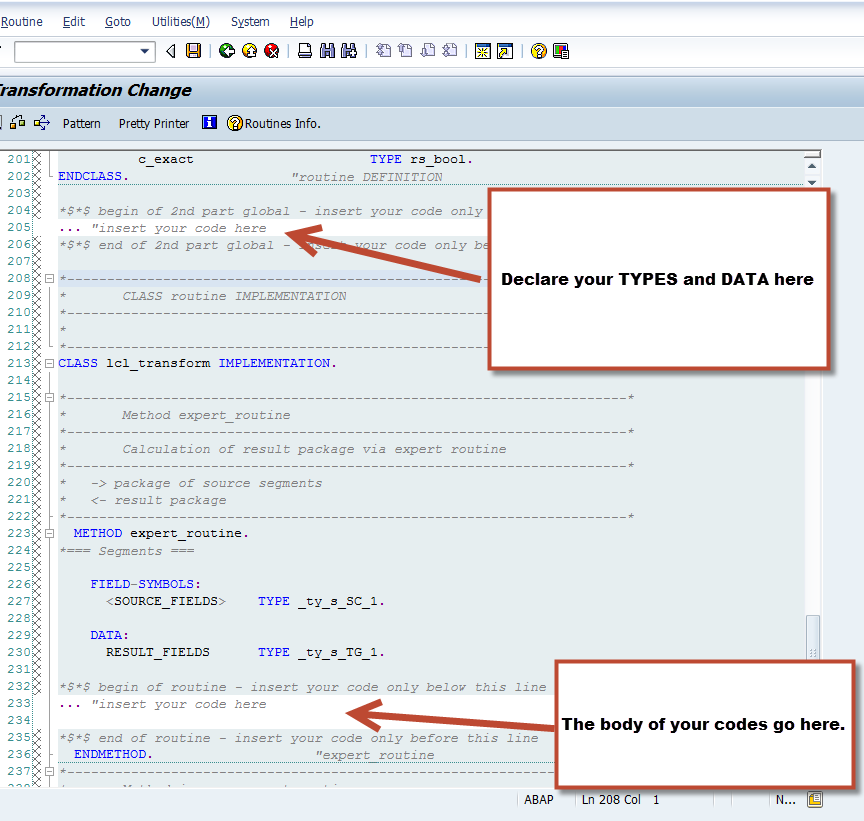

Refer to Figure 9 for the routine sections.

Figure 9 Expert routine parts

Note

Since expert routine is both a start and end routine, it uses SOURCE_PACKAGE and RESULT_PACKAGE. As you know SOURCE_PACKAGE holds data packages coming in and RESULT_PACKAGE holds data packages going out of transformation.

When you declare an expert routine and save it, the transformation looks something like Figure 10.

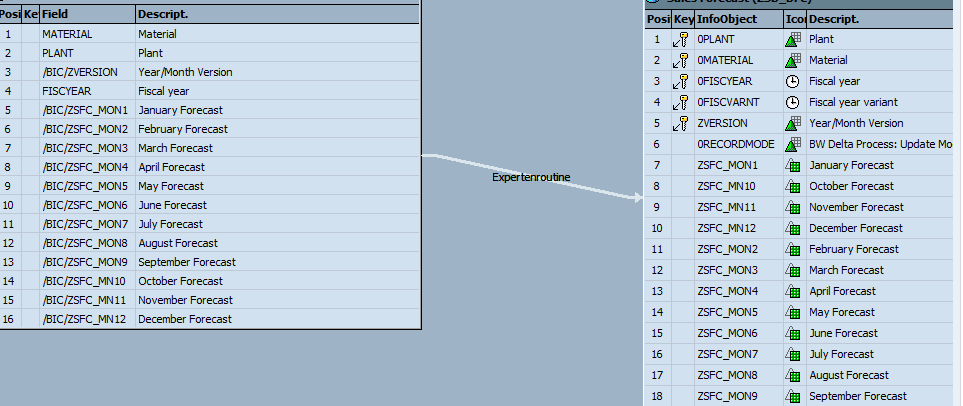

Figure 10 Expert routine transformation

You see the new Expert Routine button on the transformation (Figure 11).

Figure 11 Expert Routine button

See appendix A for sample ABAP code for an expert routine.

ABAP in InfoPackage

You use ABAP in an InfoPackage when you want to program the InfoPackage to extract data from the source using criteria where delta cannot handle it. We all know delta gets only records that have changed from the last extract. Let’s say for some reason you need to extract data starting from the last seven days every time. You can do this using ABAP.

To enable an ABAP routine, edit the InfoPackage and under the Data Selection tab, click the pop-up icon shown in Figure 12.

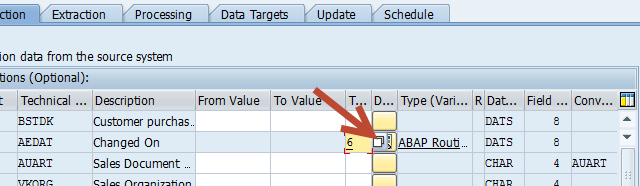

Figure 12 InfoPackage routine ABAP selection

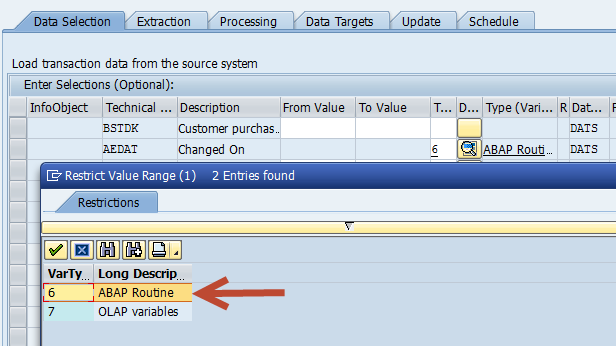

Then click ABAP Routine (Figure 13).

Figure 12 InfoPackage routine ABAP selection

Then click ABAP Routine (Figure 13).

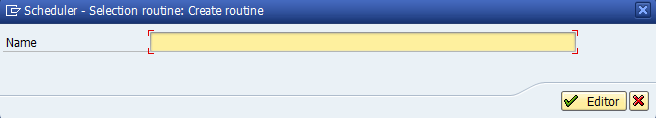

Figure 14 InfoPackage routine name

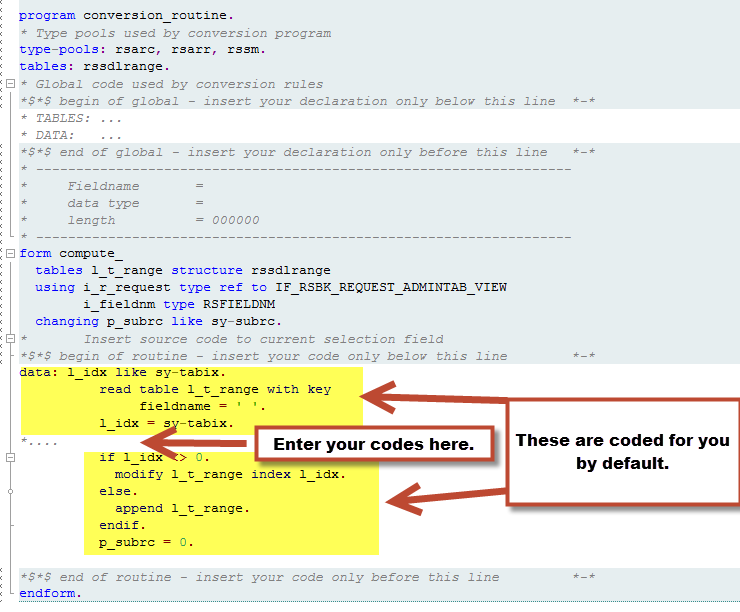

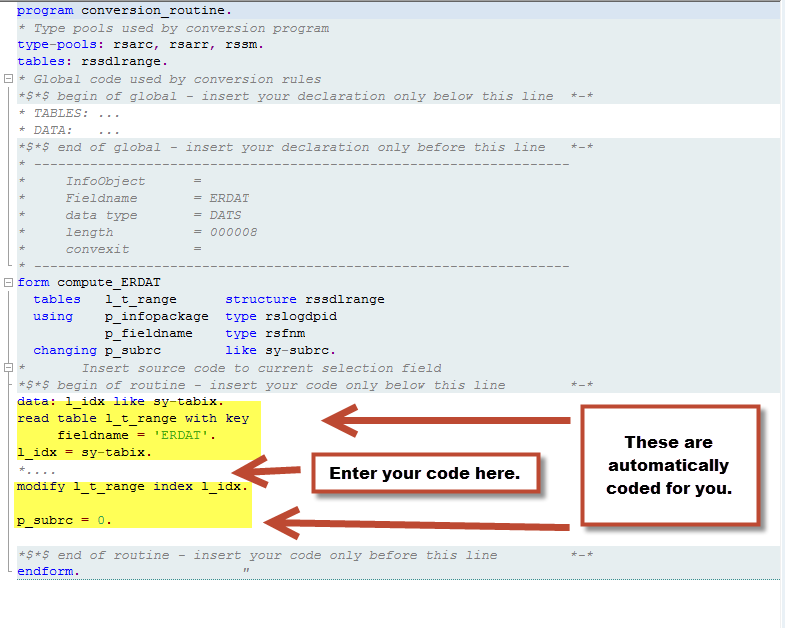

Figure 15 shows sections of the routine and where you need to add code

Figure 15 InfoPackage routine sections

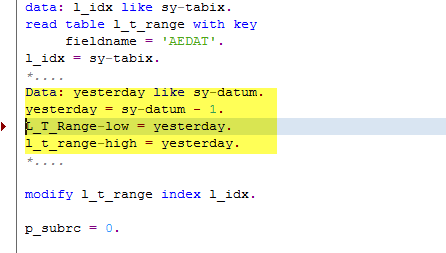

Figure 16 shows sample ABAP to select yesterday’s date.

Figure 16 ABAP in InfoPackage

ABAP in DTP

As in ABAP in an InfoPackage, you use ABAP in a DTP when you want to program the DTP to extract data from the source using criteria that delta cannot handle. Let’s say for some reason you need to extract data starting from the last seven days every time. This can be done using ABAP.

To implement ABAP in DTP do the following.

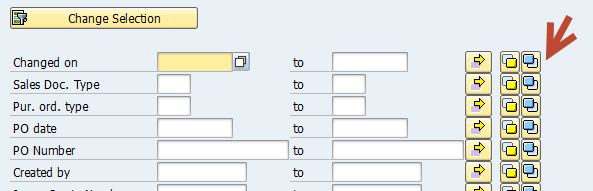

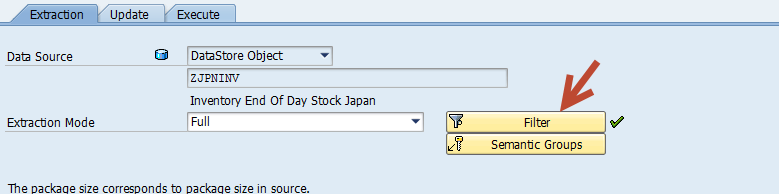

Step 1. Edit the DTP and click the Filter button (Figure 17).

Figure 17 Filter in DTP

Step 2. Click the last icon (routine icon) to the right by the field you want to program (Figure 18).

Figure 18 ABAP icon in DTP

Step 3. Give the DTP a name (Figure 19).

Figure 19 DTP ABAP name

Figure 20 shows selections of the routine and where to enter ABAP code.

Figure 20 DTP ABAP sections

In Figure 21, all data from seven days ago up to today is extracted by DTP for the CALDAY field.

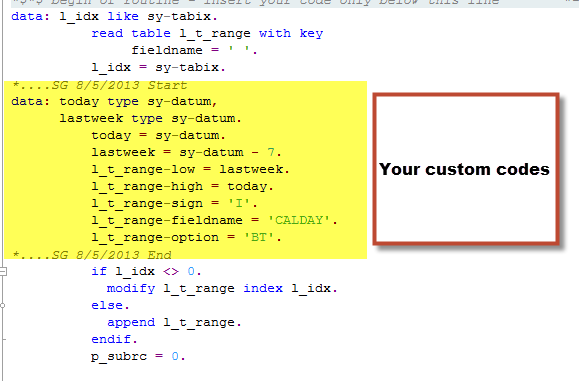

Figure 21 ABAP in DTP

ABAP in APD

You might be familiar with APD but, in a nutshell, APD is a workbench with a graphical user interface (UI) for creating, executing, and monitoring analysis processes. Data can be merged from a number of sources, can go through different transformations, and can be saved to different data targets. You can access APD by using transaction code RSANWB or by clicking the Edit button in transaction code RSA1. Then click Analysis Process Designer in Figure 22.

Figure 22 APD Menu option

Note

How to use APD is out of scope of this article.

The following example shows how to transform and change data coming from a BEx report and then save it to a DSO. Here the report is the source. The result of the report goes through ABAP routing and you filter the data and finally save it into a DSO. Figure 23 shows the various options you have.

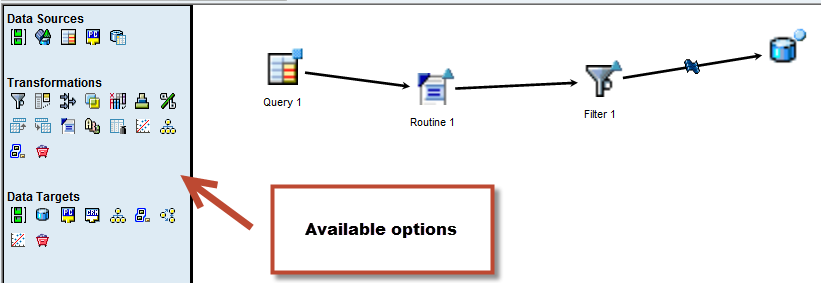

Figure 23 APD available options

Once you select the query from the Data Sources options and the ABAP routine from the Transformations options, right-click Routine 1 and then click the Properties line (not shown).

In the General tab shown in Figure 24, you give the routine a name.

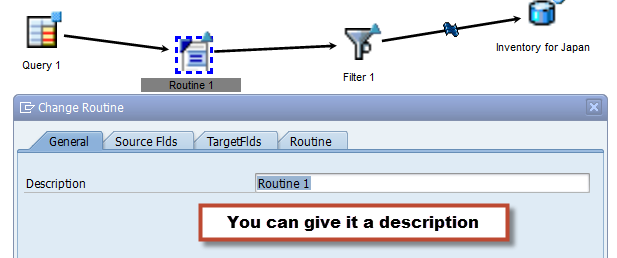

Figure 24 Routine name in APD

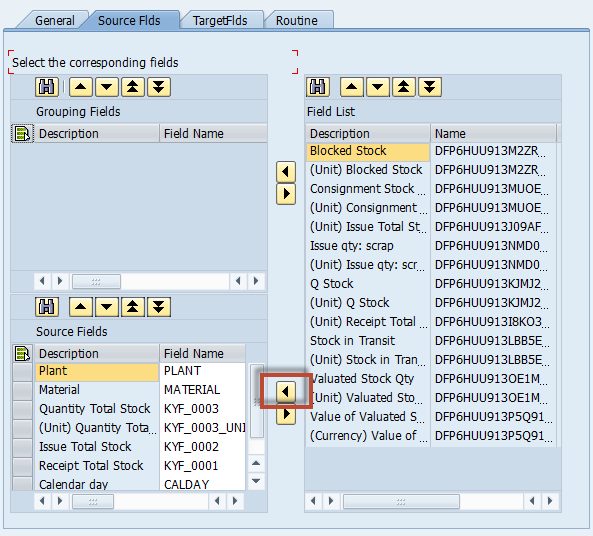

Go to the Source fields (Source Flds) tab. From the Field List on the right panel, choose the fields you want to extract and move them to the Source Fields on the left panel (Figure 25).

Figure 25 Source Fields selection in APD

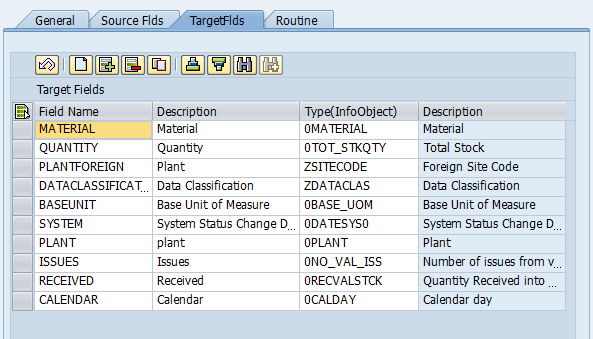

The system then automatically fills the TargetFlds tab (Figure 26).

Figure 26 TargetFlds tab in APD

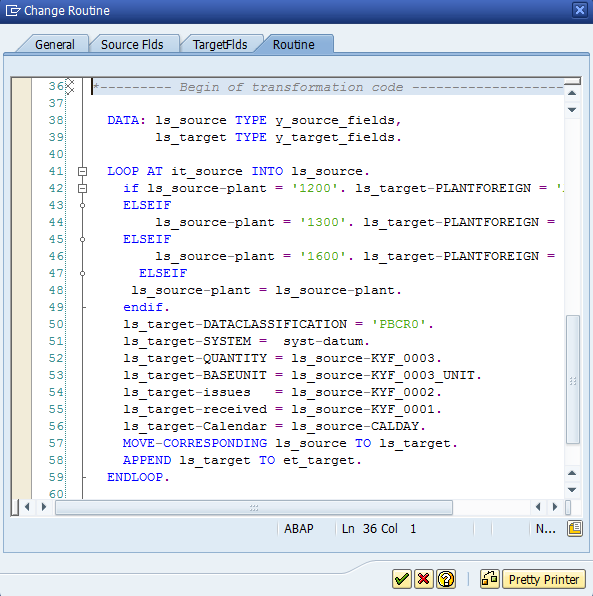

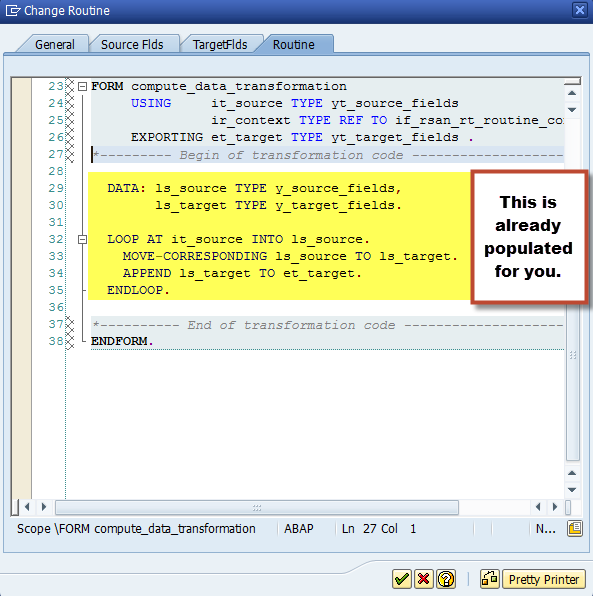

Click the Routine tab in Figure 27 and enter the ABAP code.

Figure 27 APD routine sections

Enter the code after the LOOP statement and before MOVE-CORRESPONDING as shown in Figure 27.

In my example below, I want to change the content of the field Plant. If the data coming from the source system is 1200 and if I want it to be A2001018, and if the content of the field plant coming from the source system is 1300 or 1600 and I want it to be different, I would use the ABAP codes shown in Figure 28.

Note

In the routine tab between LOOP AT and MOVE-CORRESPONDING, you assign all fields from the source to the destination.

Figure 28 ABAP in APD

After checking for errors, you can then continue with the rest of APD.

ABAP in Query Variable

A Query Customer Exit Variable created in a BEx query provides the means to do a complex calculation (not possible with BEx) in ABAP.

Data BW queries can be restricted automatically by creating a variable customer exit. This is a two-step process: One is to create a variable in Query Designer where it is processed by a customer exit. The second step is to do some ABAP coding on the BW side in transaction code CMOD.

For example, you want to create a variable on Posting Date. This new variable extracts data from the system using the system date with the “offset” you choose.

In the Query Designer, locate the Posting Date and right-click the option Characteristic value variables. Then click the New Variable button.

Figure 29 Create a new variable

Give the new variable a technical name that starts with Z and a description. Then choose the Customer exit option from the drop-down under Processing By, as shown in Figure 30.

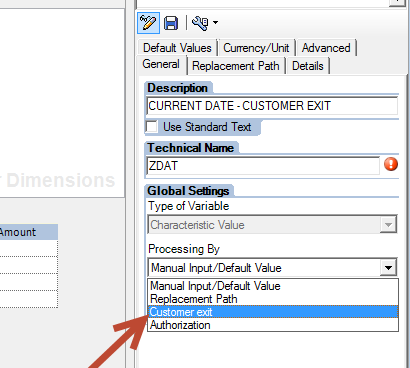

Figure 30 Customer exit option for variable

Save your variable by clicking on the save icon.

To write ABAP codes for the new variable just created, use transaction code CMOD in BW, which takes you to the screen shown in Figure 31.

Figure 31 Transaction code CMOD screen

Step 1. Enter the Project name. Click the Components radio button. Click the Display button.

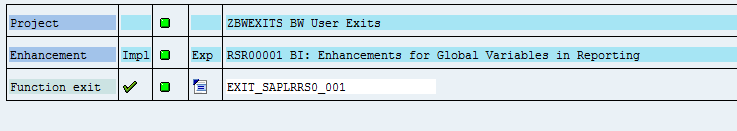

Step 2. To access the screen where you are able to start coding, click the green checkmark shown in Figure 32.

Figure 32 EXIT_SAPLRRSO_001 screen

Then the system takes you to the screen shown in Figure 33.

Figure 33 Include ZXRSRU01 screen

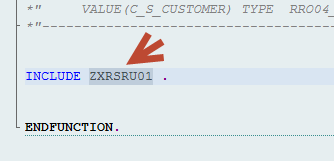

Step 3. Double-click ZXRSRU01 as shown in Figure 33.

When you get to program ZXRSRU01, go to edit mode by clicking the pencil icon on the top left of the screen, and implement the ABAP codes.

Another way to get to this program is to use transaction code SE38. Enter ZXRSRU01 for the program name, and then click Edit.

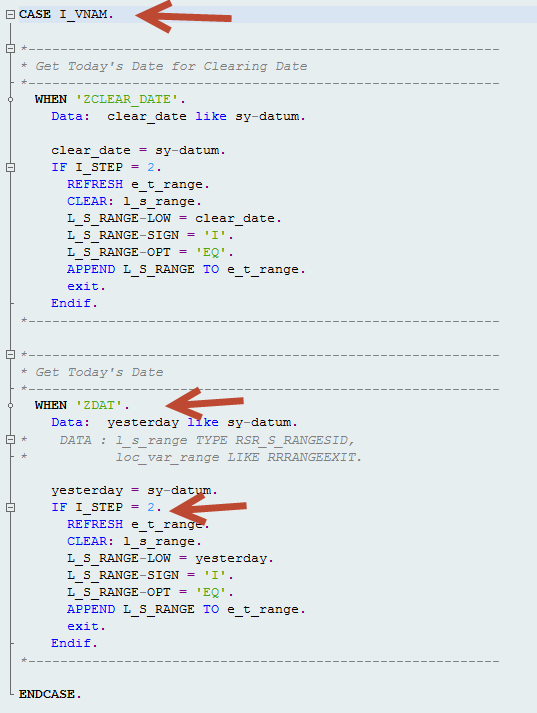

The most important information here is that the customer exit program receives the variable name of the BW query in the ABAP variable i_vnam, which is defined as an import parameter in the function module EXIT_SAPLRRS0_001. The BW query’s variable value is handled in the table E_T_RANGE. You can then write your ABAP code after CASE I_VNAM, starting with the keyword When. After the keyword When, enter the technical name of the variable you created in Query Designer. Figure 34 shows ABAP codes that start with WHEN ‘ZDAT’ and end with ENDIF. The variable ZDAT gets the value of the system date.

Figure 34 ABAP in transaction code CMOD

Step 4. Check your work for errors and click the save icon.

Step 5. Click the activate icon to activate your codes.

Note that there are four types of SAP built-in parameter I_STEPs:

I_STEP = 1 – Call directly before the variable is entered

I_STEP = 2 – Call directly after the variable is entered. This step is activated only if the same variable could not be filled for I_STEP = 1 and it is not ready for input.

I_STEP = 3 – In this call, you can check the values of the variables. Activating an exception (RAISE) causes the variable screen to appear again. I_STEP = 2 is also then executed once more.

I_STEP = 0 – The enhancement is not called from the variable screen. The call can come from the authorization check or from the monitor.

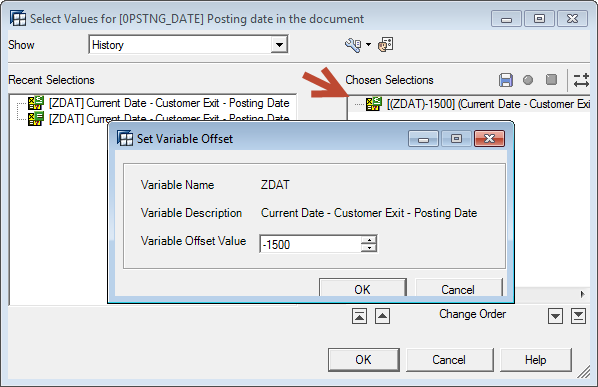

Now I am going to set the variable offset for my new variable to as many previous days as I need. For example, in the Query Designer, I set the offset to -1500 as shown in Figure 35.

Figure 35 Variable offset

When the report runs, the system fetches and displays the data from 1,500 days ago up to today.

ABAP in Transformation Fields

You use ABAP in transformation fields when you want to perform a calculation on a specific single field. You can define the routine as a transformation rule for a key figure or a characteristic. For example, in a transformation, I want to change the contents of 0DOC_TYPE.

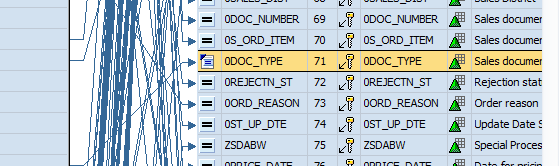

In the transformation, right-click 0DOC_TYPE in Figure 36 and then click the Rule Details option shown in Figure 37.

Figure 36 Transformation fields

Figure 37 Rule Details

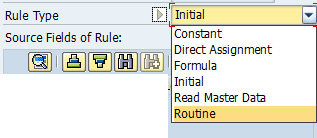

A screen pops up (Figure 38). Choose Routine from the Rule Type drop-down options.

Figure 38 Routine Rule Type

Enter ABAP codes after this section as shown in Figure 39.

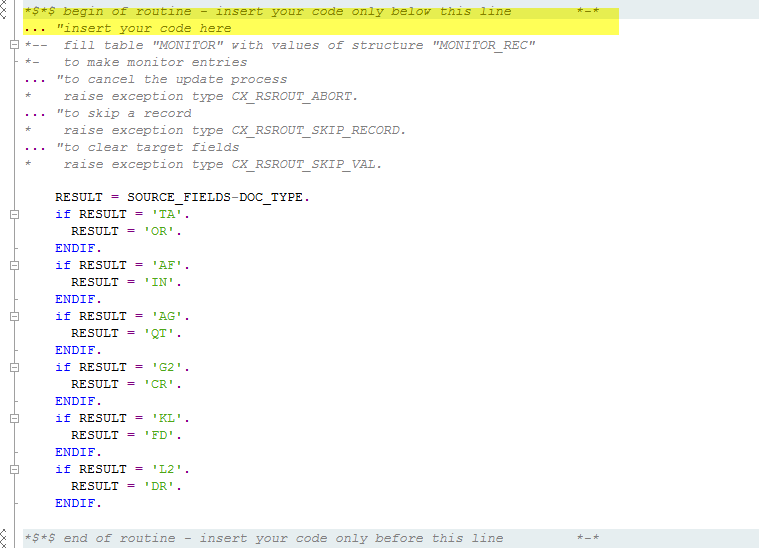

Figure 39 ABAP in transformation field

Note

Transformation field works with RESULT and SOURCE_FIELDS. As you know, RESULT holds the value to be assigned to the transformation (DOC_TYPE) field, and SOURCE_FIELD holds the value from the source system.

Differences Between Each Routine

Table 1 shows a summary of when to use each routine. Also the table shows which SAP-delivered variable is being used for each routine.

Overview of routines When to use it   Object works on
Start Fetch information from other BW objects, or perform calculations or delete records BEFORE execution of transformation SOURCE_PACKAGE
End  Perform calculations and (or?) assign fields used in Start routine, AFTER execution of transformation  RESULT_PACKAGE
Expert  Special cases, no rule type you need is available, applied to ALL fields  SOURCE_PACKAGE and RESULT_PACKAGE
InfoPackage  Program the InfoPackage to extract data from the source using criteria where delta cannot handle it  Field name selected
DTP  Program the DTP to extract data from the source using criteria where delta cannot handle it  Field name selected
APD   To change the result fetched from a BW InfoProvider  LS_SOURCE and LS_TARGET
Query  Complex calculation, restrict data by default  I_VNAM, WHEN, and I_STEP
Transformation Fields   Perform calculation on a specific single field in the transformation  RESULT

Table 1 Overview of routines

Sample Expert Routine ABAP Code

Appendix A

Figure A is a sample ABAP code in an expert routine. As you can see, custom codes are written between **$$ begin of routine – insert your code only below this line *-*
… “insert your code here and *$*$ end of routine – insert your code only before this line **

Also, you can see <SOURCE_FIELDS> and RESULT_FIELDS are declared by the system automatically and they cannot be changed.

The code below loops at the source_package does calculation and transformation, then populates the result_package which, in turn, puts the data being saved into an InfoProvider.

METHOD expert_routine.
*=== Segments ===

FIELD-SYMBOLS:
<SOURCE_FIELDS>    TYPE _ty_s_SC_1.

DATA:
RESULT_FIELDS      TYPE _ty_s_TG_1.

*$*$ begin of routine - insert your code only below this line        *-*
... "insert your code here
Data: gw_result_package TYPE _ty_s_SC_1.
Data: gw_result_package1  TYPE _ty_s_TG_1.
DATA: wa TYPE /BIC/AZSD_DFC00.
DATA:
m10          TYPE /BIC/OIZSFC_MN10,
m11          TYPE /BIC/OIZSFC_MN11,
m12          TYPE /BIC/OIZSFC_MN12,
m1           TYPE /BIC/OIZSFC_MON1,
m2           TYPE /BIC/OIZSFC_MON2,
m3           TYPE /BIC/OIZSFC_MON3,
m4           TYPE /BIC/OIZSFC_MON4,
m5           TYPE /BIC/OIZSFC_MON5,
m6           TYPE /BIC/OIZSFC_MON6,
m7           TYPE /BIC/OIZSFC_MON7,
m8           TYPE /BIC/OIZSFC_MON8,
m9           TYPE /BIC/OIZSFC_MON9,
version      TYPE  C LENGTH 6,
fiscyear     TYPE /BI0/OIFISCVARNT,
fiscalyear   TYPE /BI0/OIFISCYEAR,
plant        TYPE /BI0/OIPLANT,
material     TYPE /BI0/OIMATERIAL.

***************************************
data: versiona     TYPE  C LENGTH 6,
year         TYPE C length 4,
plantA       type /BI0/OIPLANT,
materialA    TYPE /BI0/OIMATERIAL.
LOOP at SOURCE_PACKAGE into gw_result_package.
version = gw_result_package-/BIC/ZVERSION.
plantA = gw_result_package-plant.
MaterialA = gw_result_package-Material.
year = gw_result_package-fiscyear.
versiona = VERSION - 1.
if version = '01'.
year = year - 1.
versionA = '10'.
endif.
if version = '02'.
year = year - 1.
versionA = '11'.
endif.
if version = '03'.
year = year - 1.
versionA = '12'.
endif.
**************************************
*Load previous version data************************
select * from /BIC/AZSD_DFC00 into wa where
/BIC/ZVERSION = VERSIONa and
plant = plantA and
FISCYEAR = year and
Material = MaterialA.
if sy-subrc = 0.
gw_result_package1-plant = wa-plant.
gw_result_package1-material = wa-material.
gw_result_package1-FISCVARNT = 'K4'.
gw_result_package1-fiscyear = wa-fiscyear.
gw_result_package1-/BIC/ZVERSION = version.
gw_result_package1-/BIC/ZSFC_MoN1 = wa-/BIC/ZSFC_MoN1.
gw_result_package1-/BIC/ZSFC_MoN2 = wa-/BIC/ZSFC_MoN2.
gw_result_package1-/BIC/ZSFC_MoN3 = wa-/BIC/ZSFC_MoN3.
gw_result_package1-/BIC/ZSFC_MoN4 = wa-/BIC/ZSFC_MoN4.
gw_result_package1-/BIC/ZSFC_MoN5 = wa-/BIC/ZSFC_MoN5.
gw_result_package1-/BIC/ZSFC_MoN6 = wa-/BIC/ZSFC_MoN6.
gw_result_package1-/BIC/ZSFC_MoN7 = wa-/BIC/ZSFC_MoN7.
gw_result_package1-/BIC/ZSFC_MoN8 = wa-/BIC/ZSFC_MoN8.
gw_result_package1-/BIC/ZSFC_MoN9 = wa-/BIC/ZSFC_MoN9.
gw_result_package1-/BIC/ZSFC_MN10 = wa-/BIC/ZSFC_MN10.
gw_result_package1-/BIC/ZSFC_MN11 = wa-/BIC/ZSFC_MN11.
gw_result_package1-/BIC/ZSFC_MN12 = wa-/BIC/ZSFC_MN12.

append gw_RESULT_PACKAGE1 to RESULT_PACKAGE.
endif.
ENDSELECT.
clear gw_RESULT_PACKAGE1.
endloop.

***************************************************
*Load current File

LOOP at SOURCE_PACKAGE into gw_result_package.
m10 = gw_result_package-/BIC/ZSFC_MN10.
m11 = gw_result_package-/BIC/ZSFC_MN11.
m12 = gw_result_package-/BIC/ZSFC_MN12.
m1 = gw_result_package-/BIC/ZSFC_MoN1.
m2 = gw_result_package-/BIC/ZSFC_MoN2.
m3 = gw_result_package-/BIC/ZSFC_MoN3.
m4 = gw_result_package-/BIC/ZSFC_MoN4.
m5 = gw_result_package-/BIC/ZSFC_MoN5.
m6 = gw_result_package-/BIC/ZSFC_MoN6.
m7 = gw_result_package-/BIC/ZSFC_MoN7.
m8 = gw_result_package-/BIC/ZSFC_MoN8.
m9 = gw_result_package-/BIC/ZSFC_MoN9.
version = gw_result_package-/BIC/ZVERSION.
fiscalyear = gw_result_package-FISCYEAR.
plant = gw_result_package-PLANT.
material = gw_result_package-MATERIAL.

gw_result_package1-material = material.
gw_result_package1-plant = plant.
gw_result_package1-FISCVARNT = 'K4'.
gw_result_package1-fiscyear = fiscalyear.
gw_result_package1-/BIC/ZVERSION = version.
*
if m1 ne 0.
gw_result_package1-/BIC/ZSFC_MoN1 = m1.
endif.
if m2 ne 0.
gw_result_package1-/BIC/ZSFC_MoN2 = m2.
endif.
if m3 ne 0.
gw_result_package1-/BIC/ZSFC_MoN3 = m3.
endif.
if m4 ne 0.
gw_result_package1-/BIC/ZSFC_MoN4 = m4.
endif.
if m5 ne 0.
gw_result_package1-/BIC/ZSFC_MoN5 = m5.
endif.
if m6 ne 0.
gw_result_package1-/BIC/ZSFC_MoN6 = m6.
endif.
if m7 ne 0.
gw_result_package1-/BIC/ZSFC_MoN7 = m7.
endif.
if m8 ne 0.
gw_result_package1-/BIC/ZSFC_MoN8 = m8.
endif.
if m9 ne 0.
gw_result_package1-/BIC/ZSFC_MoN9 = m9.
endif.
if m10 ne 0.
gw_result_package1-/BIC/ZSFC_MN10 = m10.
endif.
if m11 ne 0.
gw_result_package1-/BIC/ZSFC_MN11 = m11.
endif.
if m12 ne 0.
gw_result_package1-/BIC/ZSFC_MN12 = m12.
endif.

***Get previous Values if month is blanck in the file*******
select * from /BIC/AZSD_DFC00 into wa where
plant = gw_result_package-PLANT and
material = gw_result_package-MATERIAL and
fiscyear = gw_result_package-FISCYEAR and
/BIC/ZVERSION = VERSIONa.

if m1 = 0.
gw_result_package1-/BIC/ZSFC_MoN1 = wa-/BIC/ZSFC_MoN1.
endif.
if m2 = 0.
gw_result_package1-/BIC/ZSFC_MoN2 = wa-/BIC/ZSFC_MoN2.
endif.
if m3 = 0.
gw_result_package1-/BIC/ZSFC_MoN3 = wa-/BIC/ZSFC_MoN3.
endif.
if m4 = 0.
gw_result_package1-/BIC/ZSFC_MoN4 = wa-/BIC/ZSFC_MoN4.
endif.
if m5 = 0.
gw_result_package1-/BIC/ZSFC_MoN5 = wa-/BIC/ZSFC_MoN5.
endif.
if m6 = 0.
gw_result_package1-/BIC/ZSFC_MoN6 = wa-/BIC/ZSFC_MoN6.
endif.
if m7 = 0.
gw_result_package1-/BIC/ZSFC_MoN7 = wa-/BIC/ZSFC_MoN7.
endif.
if m8 = 0.
gw_result_package1-/BIC/ZSFC_MoN8 = wa-/BIC/ZSFC_MoN8.
endif.
if m9 = 0.
gw_result_package1-/BIC/ZSFC_MoN9 = wa-/BIC/ZSFC_MoN9.
endif.
if m10 = 0.
gw_result_package1-/BIC/ZSFC_MN10 = wa-/BIC/ZSFC_MN10.
endif.
if m11 = 0.
gw_result_package1-/BIC/ZSFC_MN11 = wa-/BIC/ZSFC_MN11.
endif.
if m12 = 0.
gw_result_package1-/BIC/ZSFC_MN12 = wa-/BIC/ZSFC_MN12.
endif.
ENDSELECT.
**********************************************************************
append gw_RESULT_PACKAGE1 to RESULT_PACKAGE.

clear m1.
clear m2.
clear m3.
clear m4.
clear m5.
clear m6.
clear m7.
clear m8.
clear m9.
clear m10.
clear m11.
clear m12.
CLEAR gw_RESULT_PACKAGE1.

endloop.

*$*$ end of routine - insert your code only before this line         *-*
ENDMETHOD.                    "expert_routine
MENTATION

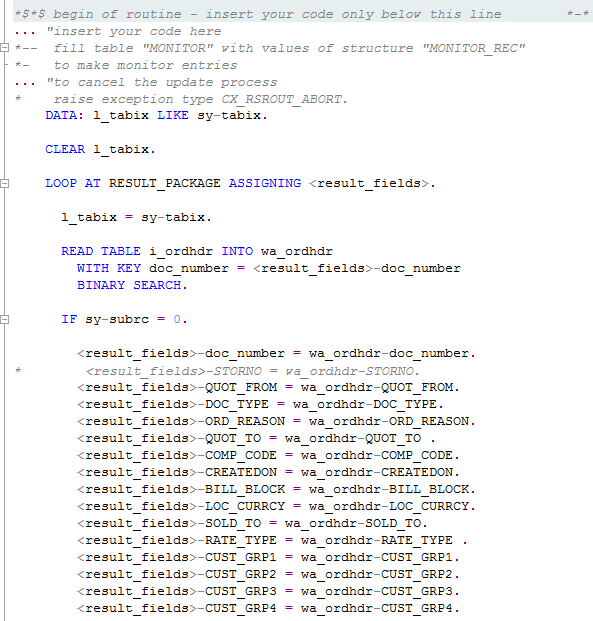

Figure A Sample ABAP code in an expert routine

Leave a Reply

Your email address will not be published. Required fields are marked *
